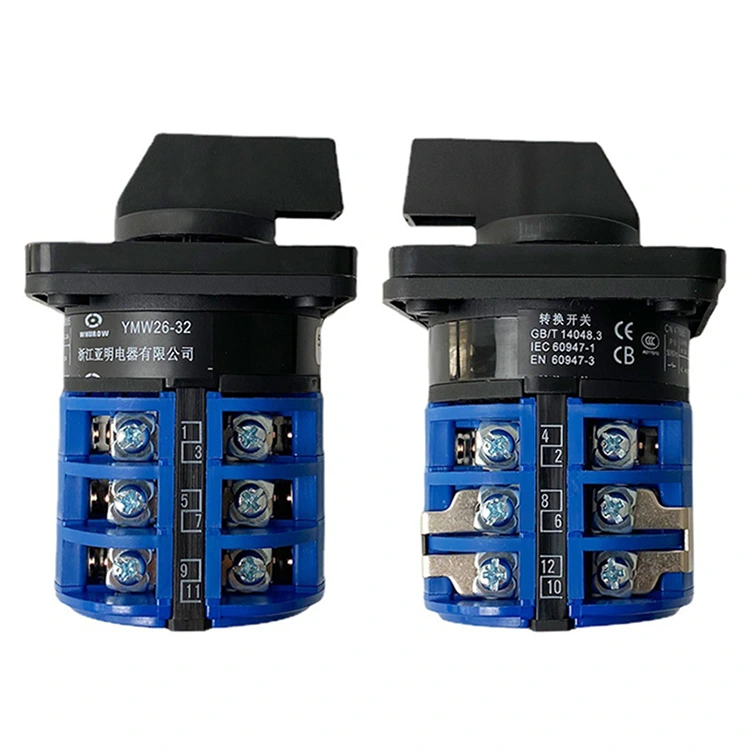

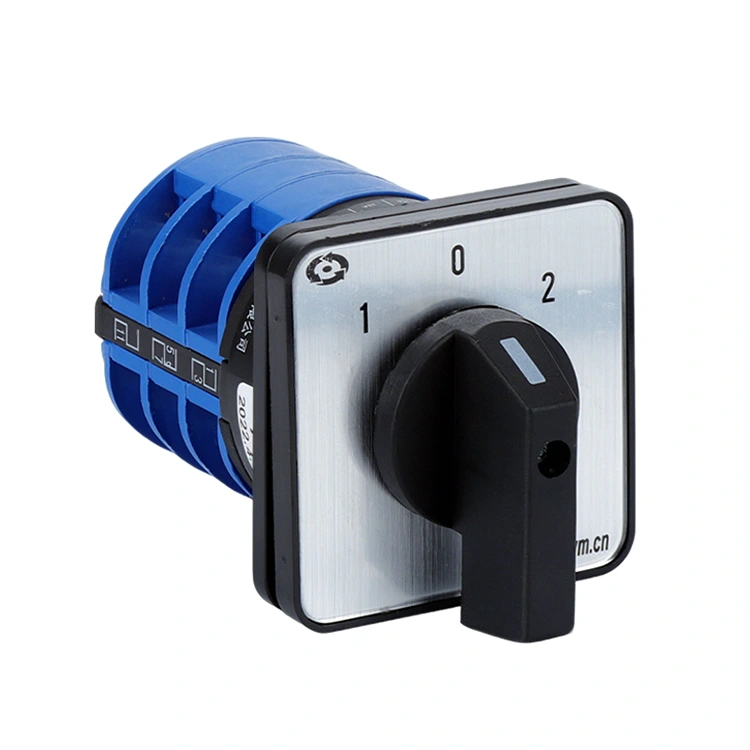

The YAMING 32A Forward and Reverse Control Rotary Switch is a high-reliability 3-position changeover switch, specifically designed for AC 50HZ/≤690V and DC ≤240V circuits, with a maximum current bearing capacity of 32A. Its core functions include realizing manual non-frequent circuit conversion, directly controlling small AC motors, and being applicable to command control and circuit testing scenarios.
As a key component in electrical control systems, it effectively guarantees the stable and reliable operation of various electrical appliances. It features compact size, multi-function integration, robust structure and reliable operation, with strong adaptability to various working environments. As a trusted supplier from China, YAMING provides customizable options for this switch to meet diverse application needs, making it a core component in circuit control, test equipment and motor control systems.
- Compact Structure for Flexible Installation: The switch adopts a compact design, which can be flexibly arranged in limited installation spaces, greatly improving the utilization rate of equipment internal space.
- Multi-Function Integration: It integrates multiple control functions to meet the diverse control needs of different application scenarios, realizing one switch for multiple purposes and reducing the complexity of system configuration.
- Superior Safety Performance: Built with a robust structure and high-quality materials, the switch has excellent insulation performance, effectively ensuring electrical safety during use and reducing potential safety hazards.
- Stable and Reliable Operation: The rotary mechanism operates smoothly, with low failure rate and strong reliability, which can maintain stable performance even in long-term use.
- Stylish and Practical Design: The appearance design is both stylish and functional, which can well match the aesthetic style of different equipment and enhance the overall texture of the equipment.
The YAMING 32A Forward and Reverse Control Rotary Switch has a comprehensive classification system, which can be tailored to various usage scenarios, and its main applications and classification details are as follows:
1.Main Application Fields
It is widely used in main circuit switching, direct AC motor control, command control and circuit measurement scenarios, and is an important core component in circuit control systems, test equipment and motor control systems.
2.Classification Details
- Operation Mode: Including positioning, self-resetting, and positioning-self-resetting modes to adapt to different operation requirements.
- Conversion Angle: Optional 30°, 45°, 60°, 90° conversion angles to match different mechanical transmission needs.

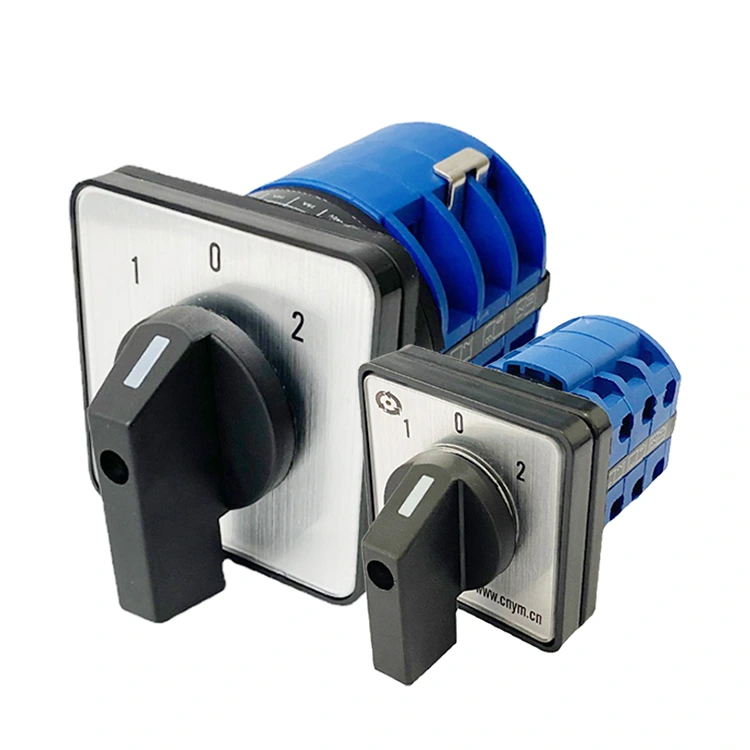

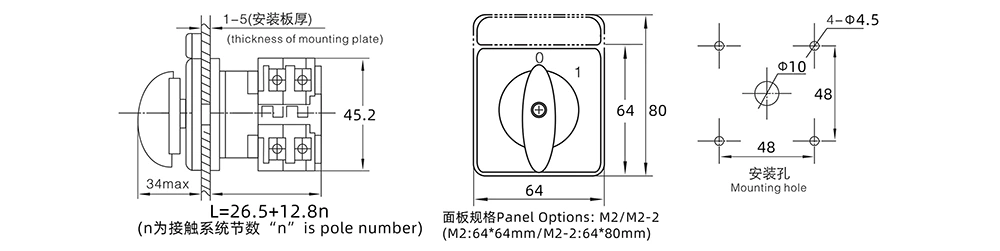

- Panel Shape: Available in square and rectangular panel shapes, suitable for different equipment installation interfaces.
- Customizable Layers: The switch supports customization from 1 to 12 layers, enabling personalized configuration according to specific control system requirements.

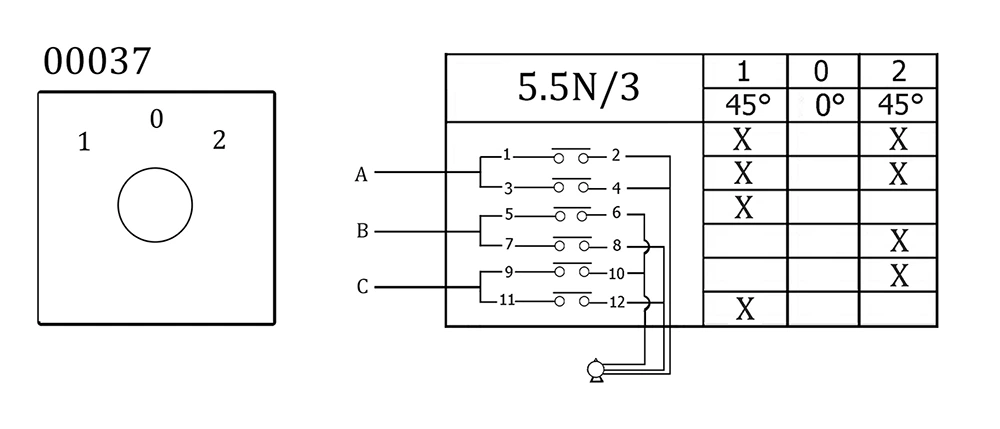

Note: The product is equipped with a detailed wiring diagram to facilitate quick and correct installation and use.

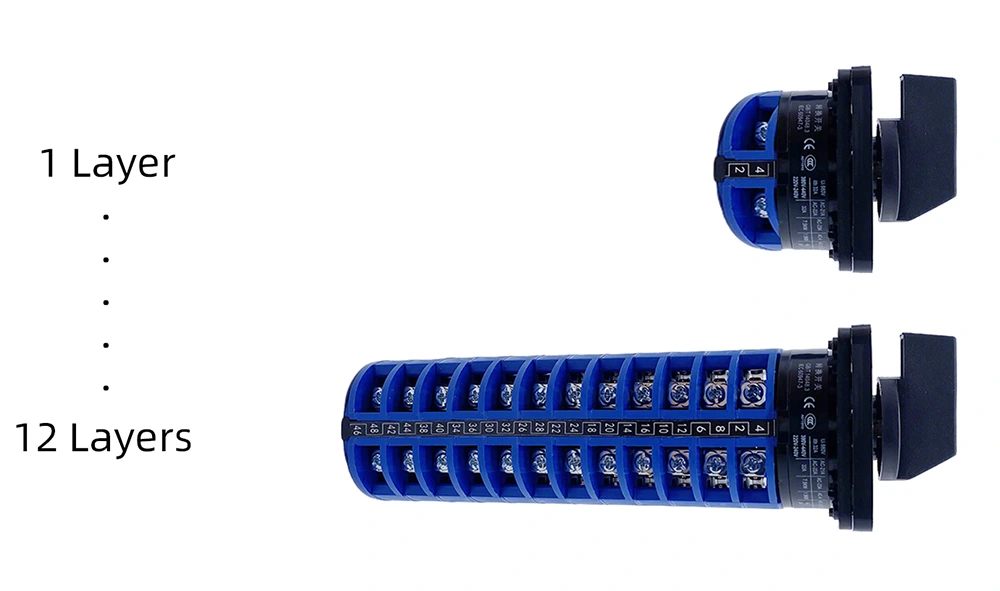

And this 32A rotary cam switch can be customize (From 1 to 12 Layers):
The YAMING 32A Forward and Reverse Control Rotary Switch has excellent environmental adaptability and can operate reliably under the following normal working conditions:
- Temperature Range: Suitable for use in environments with temperatures ranging from -25℃ to +50℃, with an average temperature not exceeding +35℃ within 24 hours.
- Installation Altitude: Can be installed at an altitude of ≤ 4000m, adapting to different geographical environment requirements.
- Relative Humidity: The maximum relative humidity is 50% at +50℃ and 90% at +20℃. For moisture accumulation caused by temperature changes, YAMING provides special anti-condensation solutions to ensure stable operation of the switch.
As a professional factory with rich experience, YAMING adheres to the concept of quality first, and provides customers with high-quality 32A Forward and Reverse Control Rotary Switch products. As a reliable supplier from China, we not only ensure product performance and quality, but also provide thoughtful after-sales service and customized solutions, committed to creating greater value for global customers.
