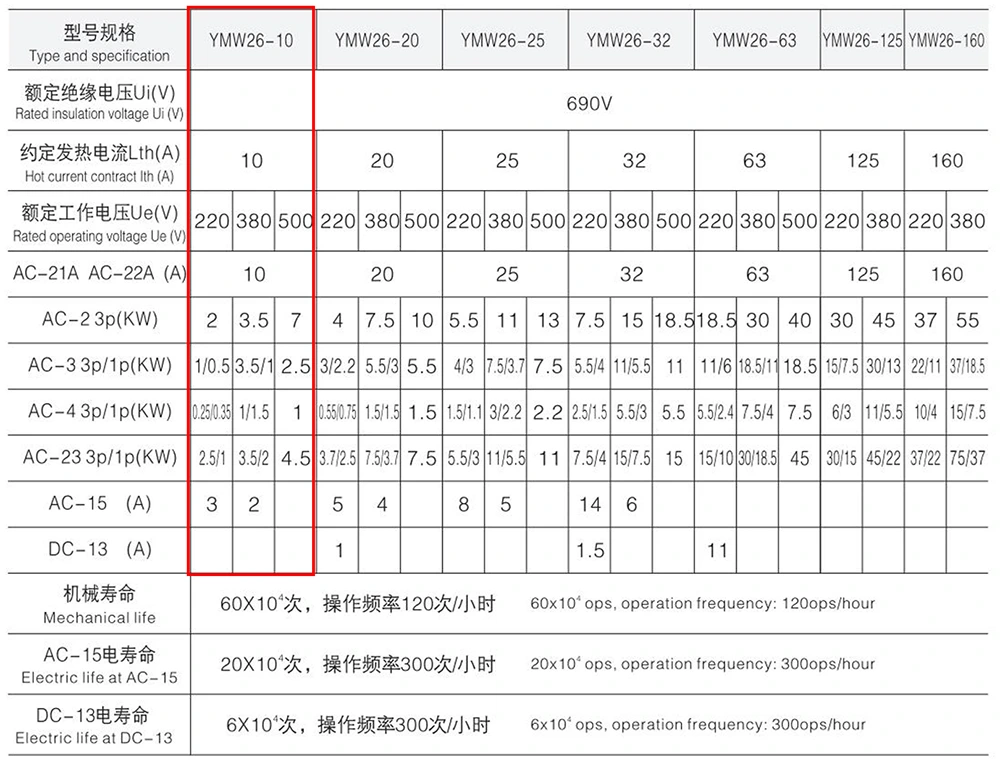

In terms of core performance, 10A Three Positions Cam Switch performs well. It is suitable for AC 50HZ, rated operating voltage 690V and below, DC voltage 240V and below, and specified current to 10A. It can manually open or break the circuit infrequently to realize control and conversion functions. It can also directly control small AC motors. It can also be used for master control and circuit measurement. It is applied to circuit control switches, test equipment switches, Electric control switch, master command control switch and other scenarios to ensure the stable operation of various electrical equipment.
10A Three Positions Cam Switch is compact in size and can be flexibly arranged in limited installation space; it has rich functions to meet various control requirements; compact in structure and rigorous in material selection to ensure good insulation performance and ensure power safety.At the same time, the switch conversion operation is flexible and smooth, the safety and reliability are high, the appearance is novel, and the utility model is both practical and beautiful, and the appearance design of different equipment is adapted.

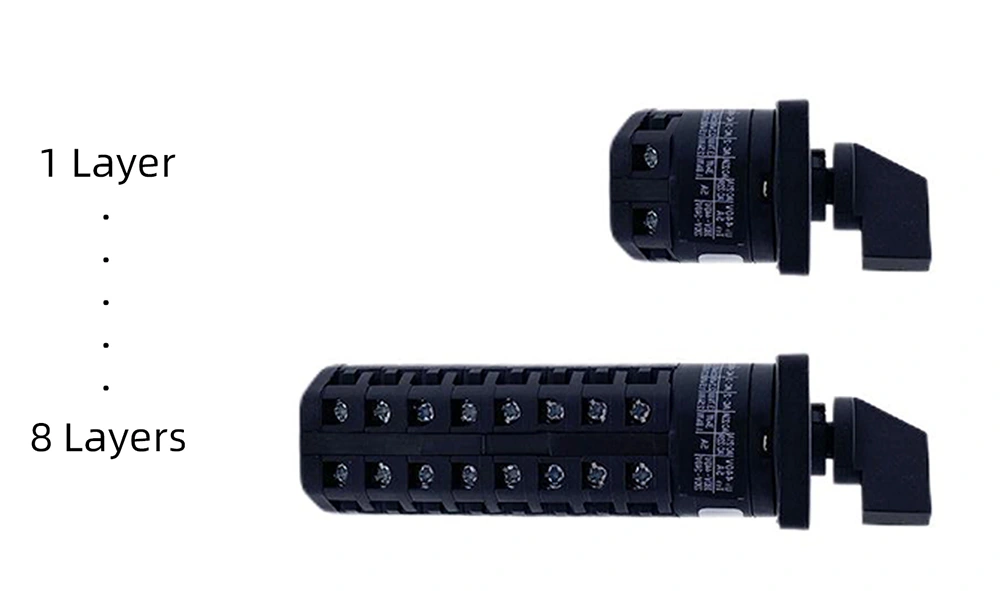

The application classification system is complete, and can be divided into main circuit conversion, direct control motor and main command control and measurement according to the purpose; according to the operation mode, there are positioning type, self-restoring type and positioning self-restoring type; according to the number of system sections, positioning type 1-8 sections, self-restoring type 1-3 sections, direct control motor 1-6 sections, special sections can be customized; divided into 30°, 45°, 60° and 90° according to the conversion angle; According to the shape of the panel, it covers square, circular panels, etc., and can also be classified according to the operation mode and the position of the operating equipment.
Under normal working conditions, the switch adaptability is strong, the ambient air temperature does not exceed +50 ℃ and the average temperature within 24H does not exceed +35 ℃, the lower limit is not lower than-25 ℃; the installation point altitude does not exceed 4000m; the highest temperature + 50℃ when the air relative humidity does not exceed 50%, 20℃ can reach 90%, condensation can be special treatment.
Zhejiang Yaming Electric has continuously expanded its production scale, increased technical input, formed a perfect operation mechanism, and won praise from customers with good reputation.LW26 10A Three Positions Cam Switch is a high-quality product, looking forward to sincere cooperation with domestic and foreign partners to create a brilliant future in the electrical field.
