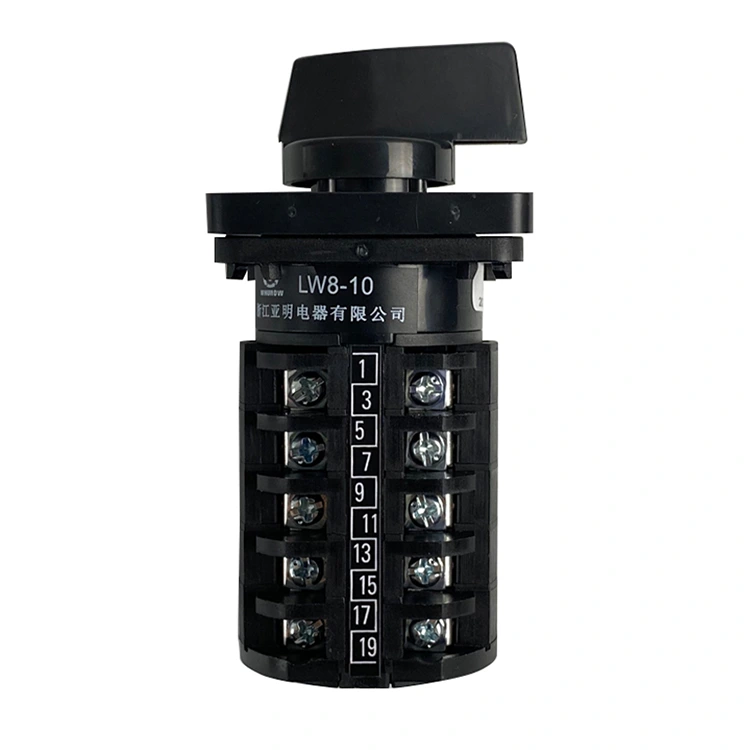

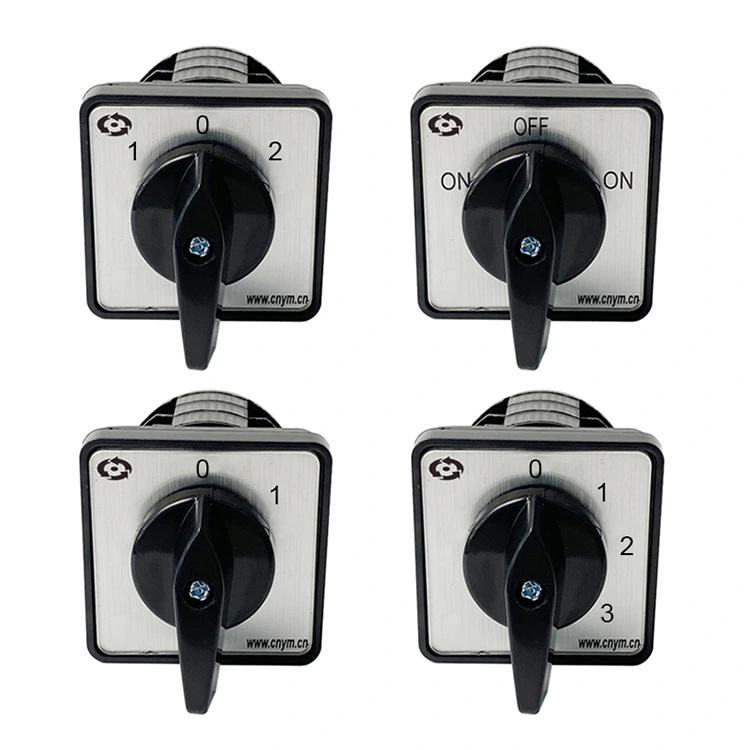

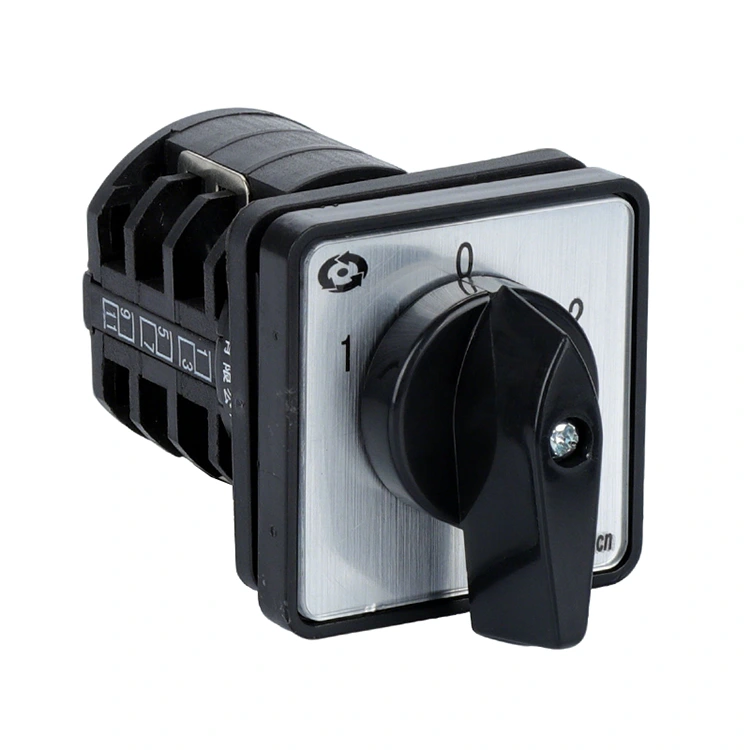

10A Three Positions Rotary Cam Switch

As a core product of Zhejiang Yaming Electric Co., Ltd. (YAMING), the LW8 Series 10A Three Positions Rotary Cam Switch is designed for precise and reliable electrical circuit control. YAMING's advanced factory production lines ensure consistent quality of each switch, making it an ideal choice for various electrical equipment that requires stable circuit switching. The product is tailored for circuit systems with AC 50Hz, rated voltage up to 380V and below, as well as DC voltage 220V and below, covering most low-to-medium voltage electrical control needs.

Outstanding Product Features

The LW8 10A Three Positions Rotary Cam Switch integrates practicality, safety and aesthetics, with the following prominent features:

- Compact & Flexible Installation: With a compact size, it can be flexibly installed and laid out even in limited space, adapting to the installation requirements of various electrical equipment.

- User-Friendly Structural Design: Equipped with U-type terminals that support plug-in wiring, which greatly simplifies the wiring operation process, improves construction efficiency, and reduces operation difficulty for users.

- Rich & Diverse Functions: It can accurately switch electrical control circuits and electrical measuring instruments, and meet various complex control requirements in different application scenarios.

- Excellent Safety Performance: 10A Three Positions Rotary Cam Switch adopting rigorously selected high-quality materials and an overall compact structure, it has excellent insulation performance, ensuring electrical safety from the source; the switching operation is smooth and flexible, with high safety and reliability.

- Aesthetic & Practical Appearance: The novel and unique appearance design balances practicality and aesthetics, and can be perfectly compatible with the design styles of various types of equipment.

Product Application

Classification

By Application:

Divided into two types: for master control and for direct motor control.

By Operation Mode: Self-locking type and self-reset type.

By Number of Contact System Sections:

Changeover switches for master control: Self-locking type has 1–10 sections; self-reset type has 1–3 sections.

Changeover switches for direct motor control: Self-locking type has 2, 3, or 4 sections.

By Combination of Operation Mode and Actuator Position.

Product Application & Classification

1. Application Scenarios

The product covers a wide range of application scenarios, including circuit control systems, testing equipment, electric control units and master control systems, providing a solid guarantee for the safe and stable operation of various electrical equipment.

2.Classification Standards

- By Application: Divided into two types, namely master control type (for master control systems) and direct motor control type (for directly controlling three-phase AC squirrel-cage asynchronous motors).

- By Operation Mode: Includes self-locking type and self-reset type, adapting to different operation habit and control logic requirements.

- By Number of Contact System Sections: Master control type - self-locking type has 1–10 sections, self-reset type has 1–3 sections; direct motor control type - self-locking type has 2, 3, or 4 sections.

- By Combination of Operation Mode and Actuator Position: Multiple combination options are available to match different equipment control configurations.

Brand Strength

YAMING, rooted in China, has 30 years of experience in electrical switch R&D and manufacturing. It adheres to the concept of quality first, relying on advanced production technology, strict quality control system and professional R&D team, and is committed to providing high-quality electrical switch products and professional solutions for global customers. As a reliable manufacturer, supplier and factory, YAMING has won wide recognition in the industry and is ready to make greater marks in the global electrical switch market.

Technical Parameters

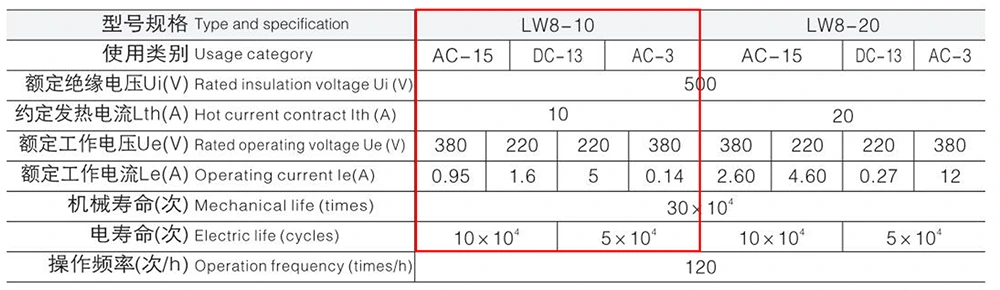

LW8-10 Parameter Card

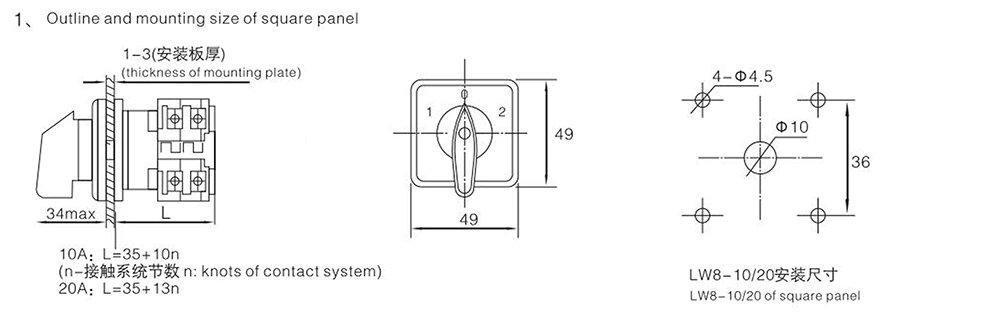

Product outline size installation size
