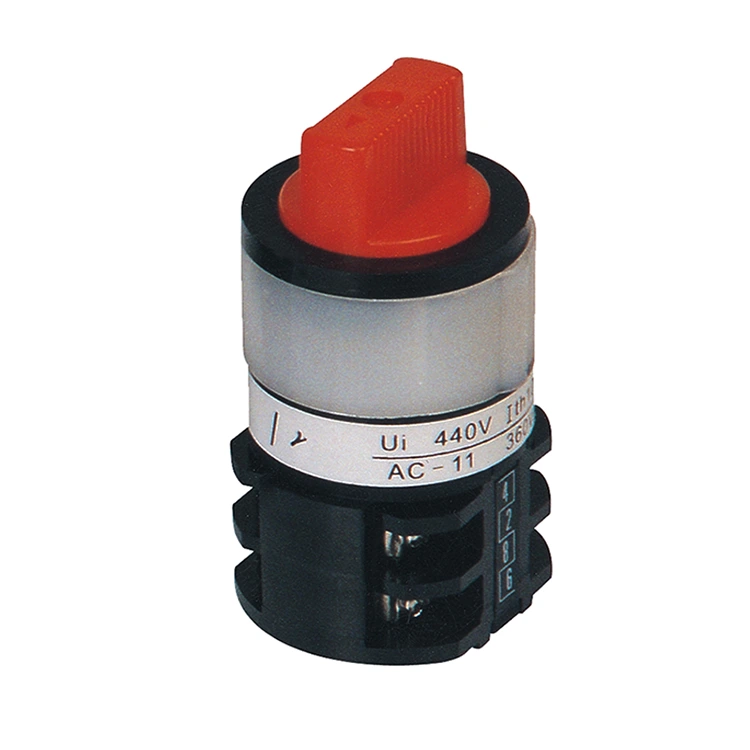

10A Center Hole Mounting Three Positions Cam Switch

YAMING, a well-known electrical switch manufacturer rooted in China, has always been committed to delivering high-performance electrical control components to the global market. The LW8 Series 10A Center Hole Mounting Three Positions Cam Switch is a flagship product developed by the company based on years of industry experience and advanced technology.

Boasting compact dimensions, humanized structural design, versatile functions, superior insulation performance and reliable safety, it is widely used in various circuit control scenarios. Originating from China, YAMING is a trustworthy supplier that integrates R&D, production and sales, ensuring each product from the factory meets high-quality standards to safeguard the stable operation of electrical equipment for global clients.

10A Center Hole Mounting Three Positions Cam Switch is specifically designed for AC 50Hz circuits with rated voltage ≤ 380V and DC circuits ≤ 220V, playing a crucial role in precise switching of electrical control circuits and measuring instruments. Additionally, it can directly control three-phase AC squirrel-cage asynchronous motors up to 5.5kW, providing efficient and stable circuit management solutions for various industrial and commercial applications.

Product Feature

The LW8 Series 10A Center Hole Mounting Three Positions Cam Switch of YAMING stands out in the market with multiple remarkable advantages, making it the preferred choice for many clients:

- Compact & Flexible Installation: With its compact dimension, the switch can be flexibly arranged even in confined installation spaces, greatly improving the utilization rate of equipment internal space.

- Humanized Structural Design: Equipped with U-type terminals, it supports plug-in wiring, which significantly simplifies the installation and maintenance process, reducing operation difficulty for users.

- Versatile Functions: The three-position design enables the switch to meet a wide range of complex control needs, adapting to different working conditions and application scenarios.

- Superior Safety Performance: Adopting premium selected materials and a compact structure, the switch has excellent insulation performance, effectively preventing electrical hazards. Meanwhile, it features smooth switching operation, high safety and reliability, ensuring the stable and safe operation of the entire electrical system.

- Aesthetic & Practical Integration: The sleek and innovative appearance perfectly combines practicality with aesthetics, matching the exterior design of various equipment across different industries.

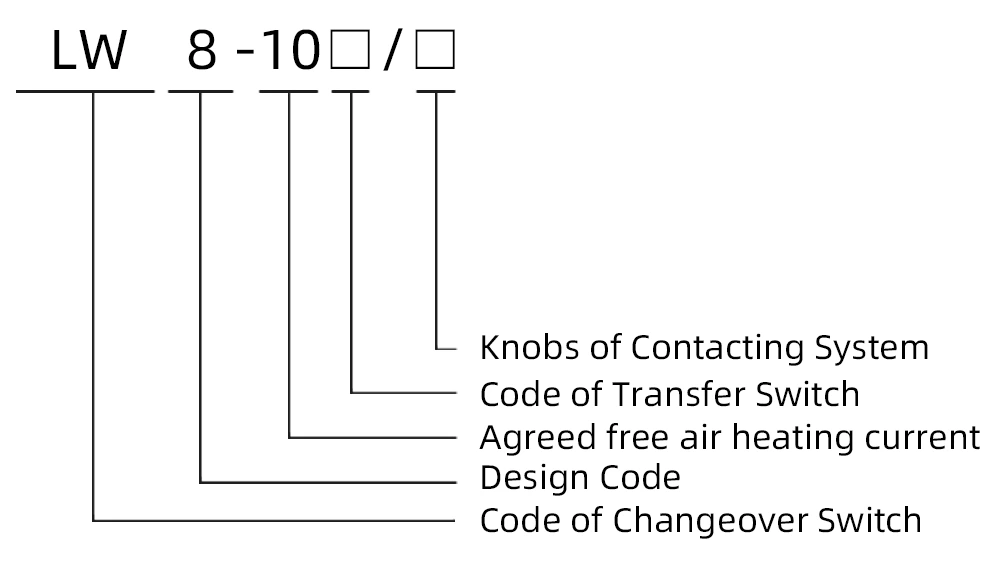

Product Classification

To better meet diverse customer needs, YAMING classifies the 10A Center Hole Mounting Three Positions Cam Switch into multiple variants based on different standards:

1. Application-Based Classification: Divided into master control version and direct motor control version, covering the core application scenarios of circuit control and motor control.

2. Operation Mode-Based Classification: Available in two options: Self-locking type and self-reset type, allowing users to choose according to specific operation requirements.

3. Contact System Section Count-Based Classification: For master control changeover switches, the self-locking type has 1–10 sections and the self-reset type has 1–3 sections; for direct motor control changeover switches, the self-locking type has 2, 3 or 4 sections.

4.Combined Classification: Classified by the combination of operation mode and actuator position, providing more refined product options.

Application Scenarios

With its reliable performance and versatile functions, the switch is widely applied in circuit control systems, testing devices, electric control systems and master control systems. It is suitable for various industries such as manufacturing, machinery, electricity, and automation, effectively safeguarding the stable operation of all types of electrical equipment. As a professional supplier, YAMING can also provide customized product solutions according to the specific application needs of customers.

Why Choose Us?

YAMING has over 30 years of experience in the R&D and manufacturing of electrical switches. The company's factory is equipped with advanced production lines and strict quality control systems, from raw material selection to product assembly and testing, every link is implemented in accordance with high standards. As a manufacturer from China, YAMING adheres to the concept of "quality first, customer-oriented", continuously optimizing product performance and improving service levels. The 10A Center Hole Mounting Three Positions Cam Switch is a concentrated embodiment of the company's technical strength and manufacturing capability, which has passed multiple strict quality certifications and is exported to various countries and regions around the world, winning wide recognition from global customers.

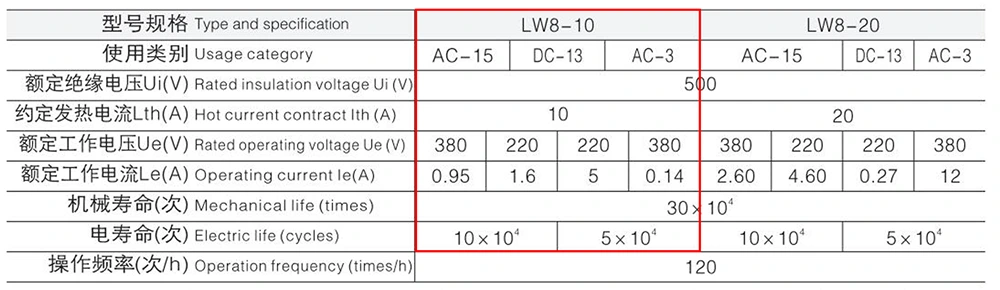

Technical Parameters
