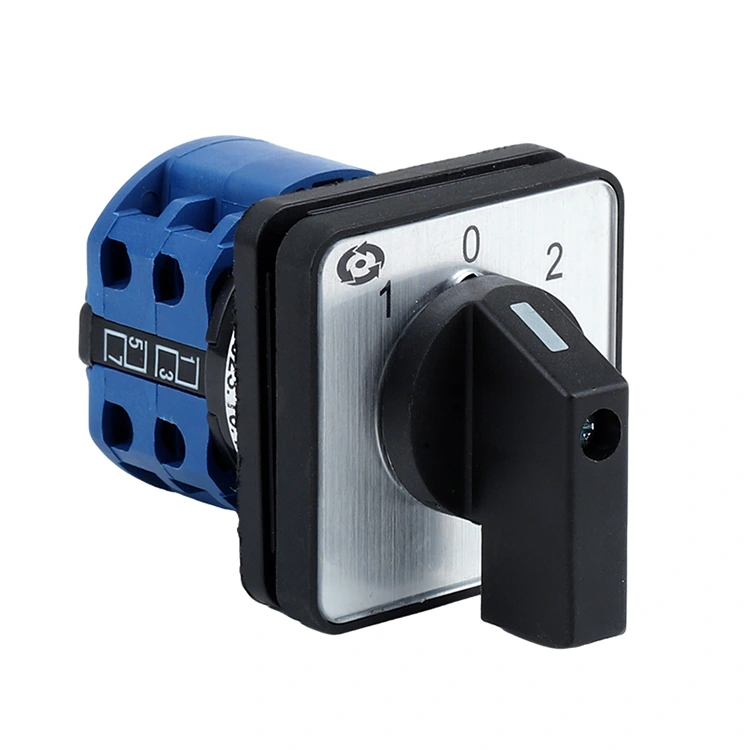

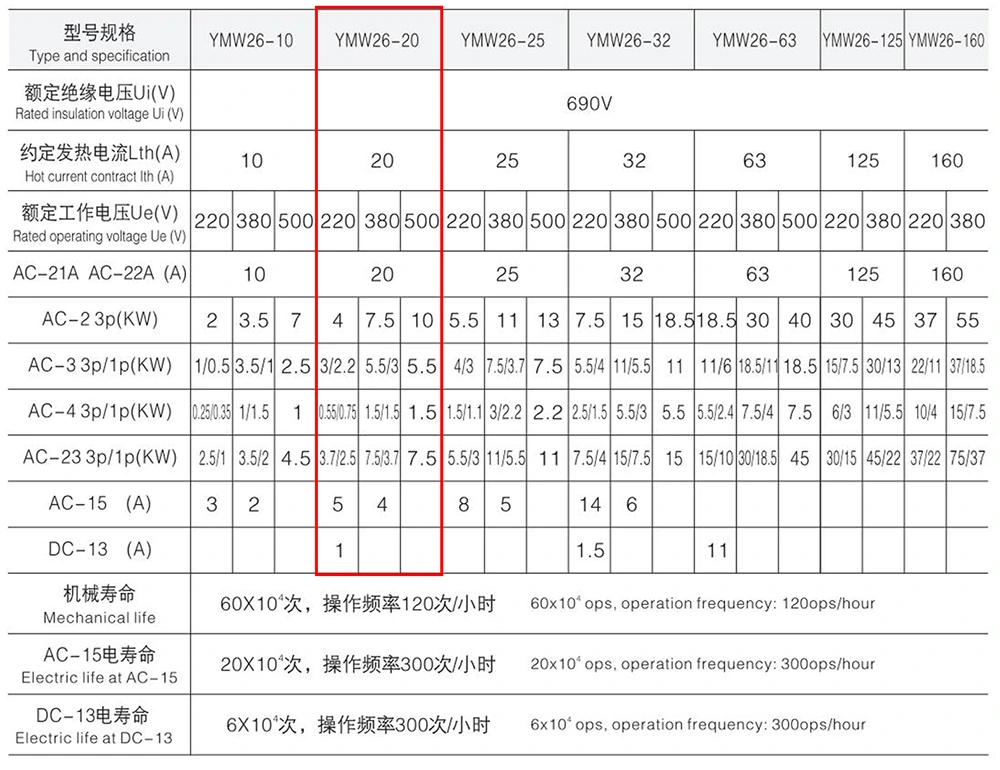

The LW26 20A Three Positions Rotary Switch offers excellent electrical performance and a wide range of applications.It is suitable for AC 50Hz, rated operating voltage below 690V and DC voltage below 240V, current to 20A electrical lines, can achieve manual infrequent on, off and circuit conversion.In addition to conventional circuit control and test equipment switches, it can also directly control small AC motors, and is competent for master control and circuit measurement tasks, playing a key role in industrial control, equipment distribution, test systems and other fields.

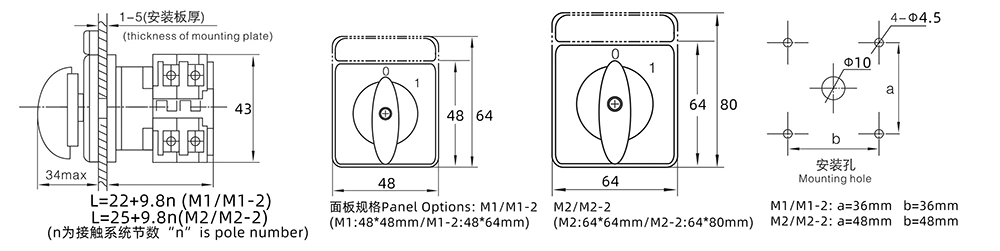

We understand the importance of installation space and operating experience, which is why the LW26 20A Three Positions Rotary Switch has been designed with the utmost precision.Its small size and compact structure make it easy to install flexibly in limited space.High-quality insulating materials are selected to ensure excellent electrical insulation performance and greatly improve electrical safety.The operation feels flexible and smooth, the positioning is clear, and both reliability and service life are taken into account.Modern and simple appearance, can be well matched with all kinds of equipment, reflecting the fusion of technology and aesthetics.

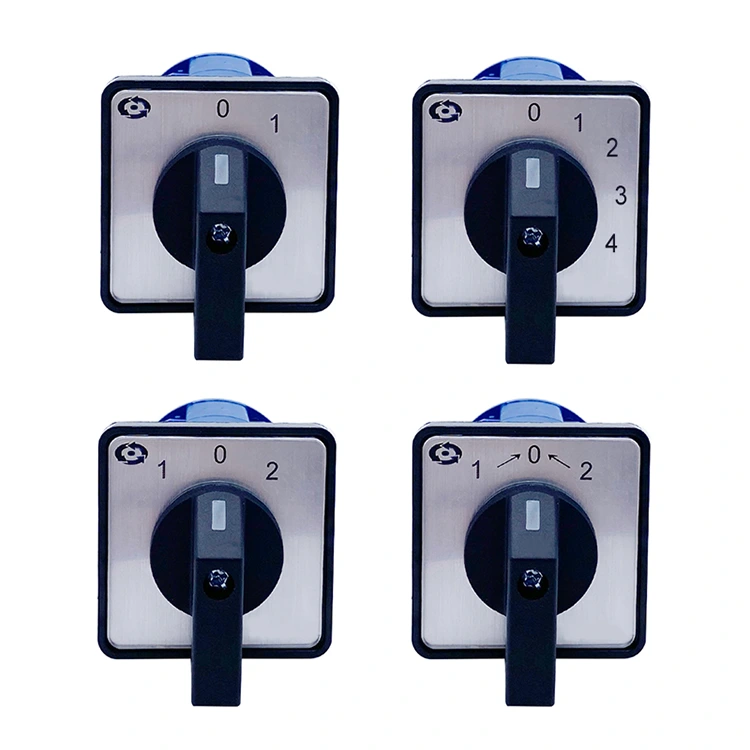

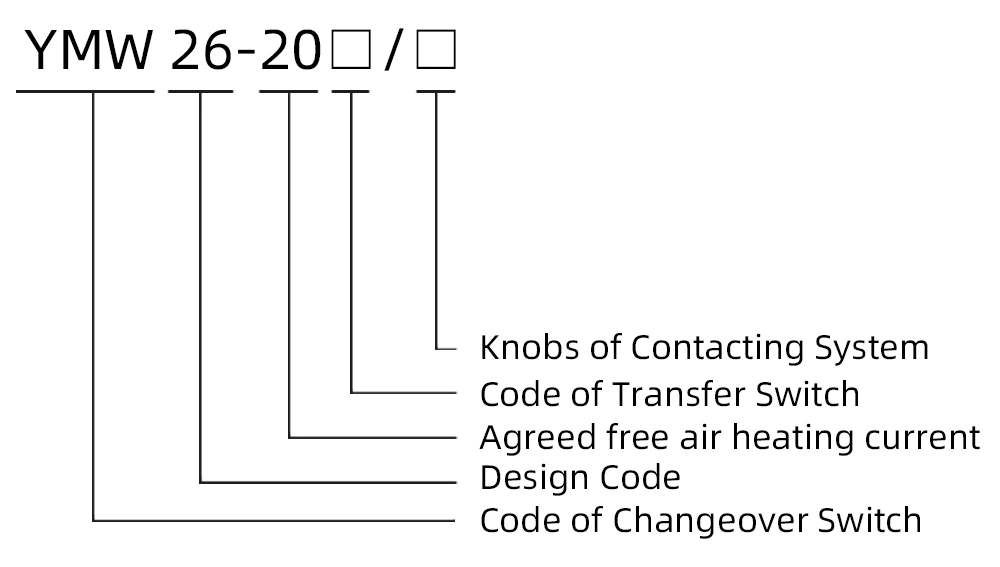

In order to meet the specific needs of different customers, we have established a perfect classification and customization system.The switch can be divided into main circuit conversion, motor control, main command control and measurement according to the purpose; the operation mode covers positioning type, self-resetting type and positioning self-resetting type; the number of system sections can be flexibly selected according to positioning type (1-12 sections), self-resetting type (1-3 sections) and motor control type (1-6 sections), and special section customization is supported.The conversion angle provides 30°, 45°, 60°, 90° options, and the panel can also be adapted to square, circular, etc. shapes, truly changing according to needs.
LW26 20A Three Positions Rotary Switch has strong adaptability, can work stably at ambient temperatures from-25℃ to +50℃, can be used normally below 4000 meters above sea level, and has certain moisture and condensation treatment capabilities to ensure continuous and reliable operation under various industrial and environmental conditions.
For 30 years of deep cultivation in the industry, Zhejiang Yaming Electric has always taken technology as its root and quality as its soul.LW26 20A Three Positions Rotary Switch is an ingenious product we sincerely dedicate. We look forward to working together with domestic and foreign partners to promote the progress and development of electrical control field.
