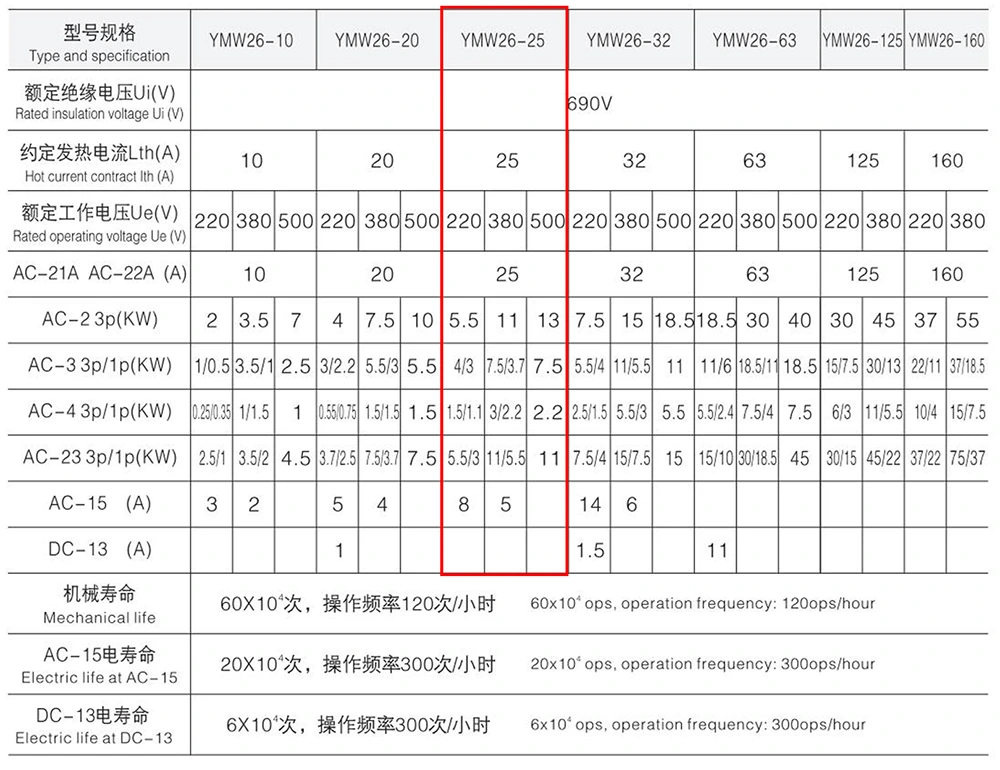

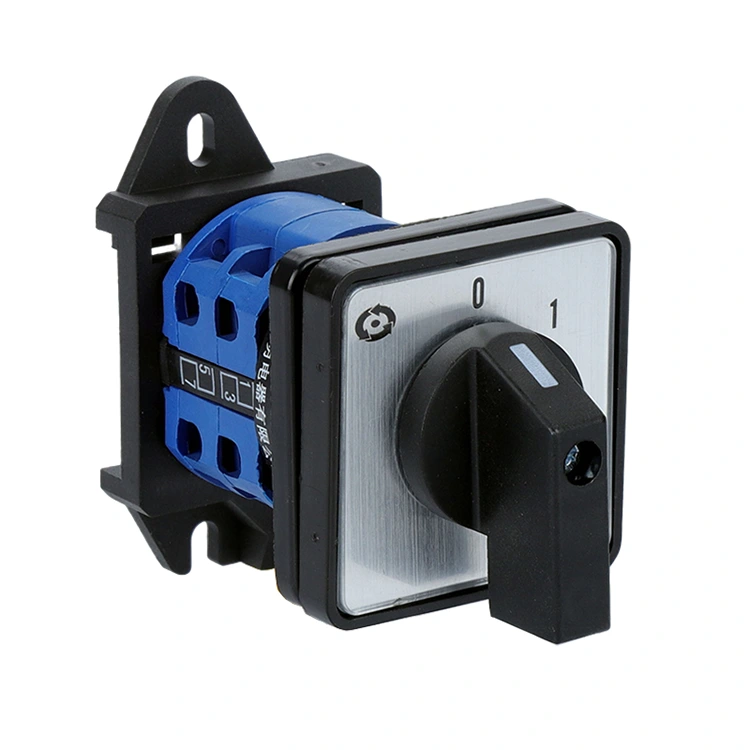

The YAMING LW26 25A Din Rail Mounted Cam Switch excels in core performance, with precise adaptation to various circuit working conditions. It is engineered for AC 50HZ circuits with a rated voltage of up to 690V and DC circuits with a rated voltage of up to 240V, and the rated current is 25A, which can stably realize manual non-frequent circuit switching. In practical applications, it not only can directly control small AC motors, but also serves as a reliable solution for command control and circuit measurement, providing stable and efficient circuit control support for various electrical devices.
With advantages such as compact size, flexible installation, excellent safety and reliability, the product is widely used in industrial control and equipment applications. As a trusted supplier from China, YAMING is committed to providing high-quality electrical control components for global customers, and this 25A Din rail mounted cam switch is another high-quality work reflecting the brand's manufacturing strength.
The YAMING 25A Din Rail Mounted Cam Switch has prominent product advantages, integrating practicality and aesthetics. Specifically, it has the following characteristics:

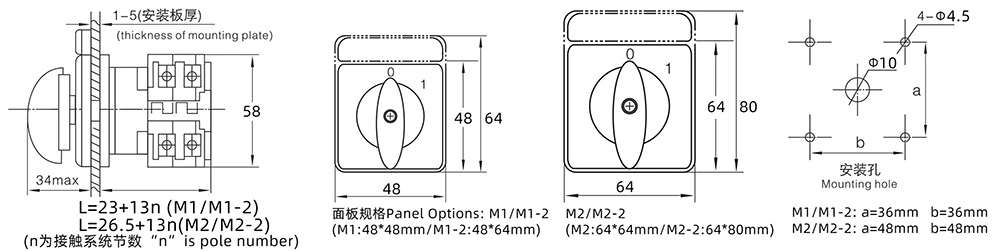

- Flexible installation: With a compact size, it can be flexibly installed even in limited space, perfectly adapting to the installation requirements of din rail mounting.
- Diversified functions: The rich functional design can meet the diverse control needs of different application scenarios, with strong versatility.
- High safety and reliability: Adopting rigorous material selection and streamlined structural design, it ensures excellent insulation performance and reliable electrical safety. At the same time, the switch operates smoothly and flexibly, with stable performance and long service life.
- Elegant appearance: The sleek and modern appearance design combines practicality and aesthetics, which can seamlessly adapt to the design styles of various equipment.
To meet the diverse application needs of global customers, YAMING has established a comprehensive classification system for the 25A Din Rail Mounted Cam Switch, covering multiple dimensions such as application scenarios, operation types, section counts, conversion angles and panel shapes. The specific classification is as follows:

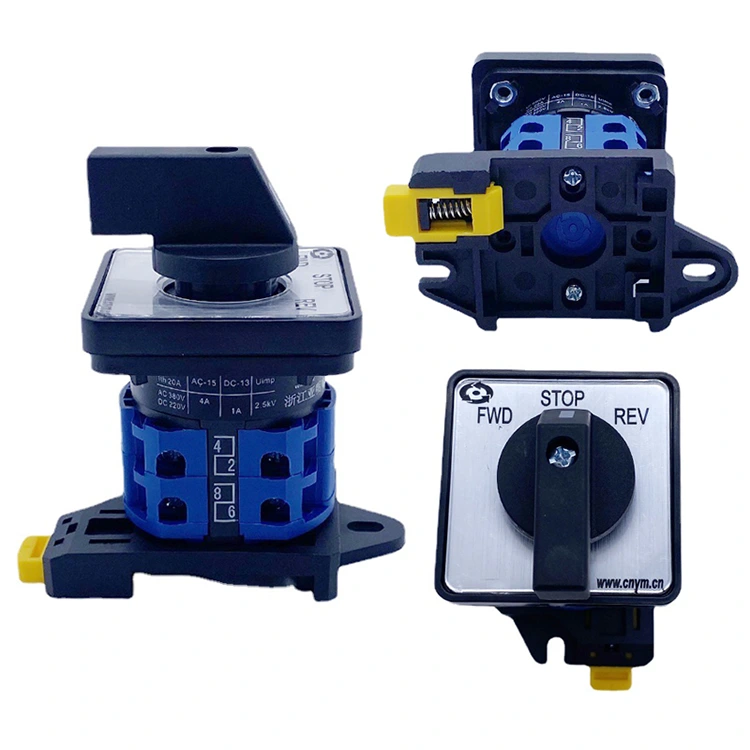

- By application: Main circuit conversion, direct motor control, command control & measurement.
- By operation type: Positioning type, self-resetting type, positioning-self-resetting type.

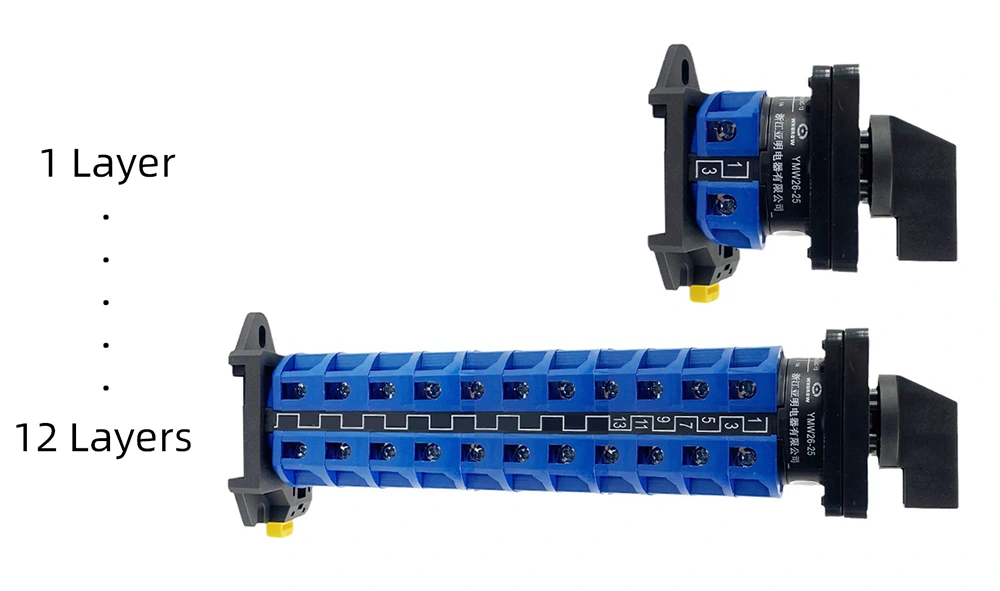

- By section count: Positioning type (1-12 sections), self-resetting type (1-3 sections), direct motor control type (1-6 sections); custom section counts are available for special requirements.
- By conversion angle: 30°, 45°, 60°, 90°.

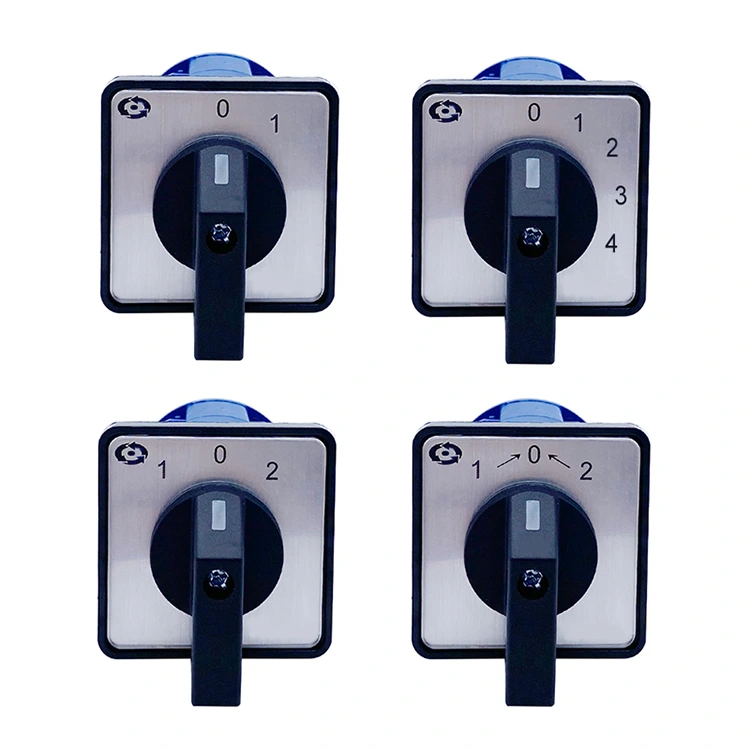

- By panel shape: Square panel, round panel, etc.
In addition, the product can also provide additional classification options according to the operation mode and the location of the control device, which is widely applicable to circuit control knob switches, test equipment switches, motor control transfer switches and other scenarios.
The YAMING 25A Din Rail Mounted Multi-position Rotary Changeover Switch has strong environmental adaptability and can maintain stable operation under normal working conditions. The specific working condition requirements are as follows:
- Ambient air temperature: Maximum +50℃ (24-hour average ≤ +35℃), minimum -25℃.
- Installation altitude: ≤ 4000m above sea level.
- Relative humidity: ≤ 50% at +50℃ (maximum temperature); up to 90% at +20℃ (lower temperature). For occasional condensation caused by temperature fluctuations, the factory can provide special treatment measures to ensure the stable operation of the product.
