20A Voltmeter Transfer Switch is widely applicable to power distribution, testing, mechanical control and other scenarios, and can meet various customized needs. As a trusted supplier from China, YAMING is committed to providing high-reliability electrical control products for global customers, injecting precise control power into various industrial equipment. It is an indispensable powerful partner in industrial control systems and various electrical equipment, and fully reflects YAMING's product concept of "taking technology as the foundation and quality as the core".

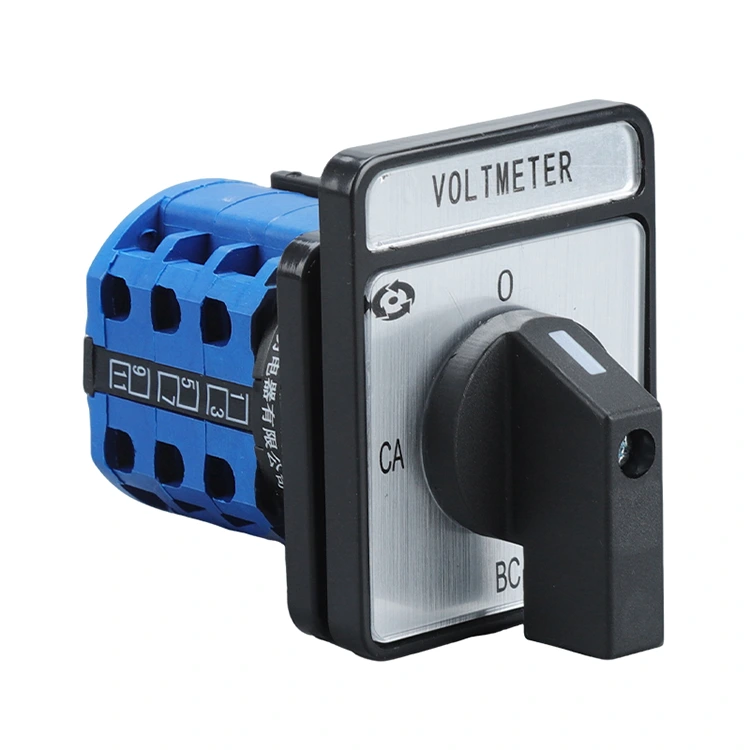

The LW26 20A Voltmeter Transfer Switch is applicable to circuits with AC 50Hz, rated operating voltage up to 690V and DC 240V, and rated current up to 20A. It has a wide range of functional applications: it can not only realize the control and conversion of conventional circuits, but also directly control small AC motors, and is competent for main command control and circuit measurement tasks in various electrical systems. Whether used as a circuit control switch, test equipment switch or electric control switch, it can maintain stable operation. It is widely used in power distribution, electrical testing, mechanical control and other industrial scenarios, and can adapt to the diverse needs of different equipment and systems.
YAMING adheres to the design concept of "small size, large function", and the LW26 20A Voltmeter Transfer Switch fully embodies this concept with excellent product performance:
- Compact Structure: The overall design is exquisite and compact, which saves installation space and is convenient for matching with various electrical cabinets and equipment.
- High-Quality Materials: Adopt high-grade raw materials,经过 strict quality inspection, ensuring the stability and durability of the product.
- Excellent Insulation Performance: Effectively isolate the circuit, avoid electrical safety hazards such as short circuits, and ensure the safety of power use.
- Flexible and Smooth Operation: The switching process is smooth without jamming, the conversion is accurate, and the operation experience is excellent.
- High Reliability & Long Service Life: Relying on mature production technology and strict quality control, the product has a long service life and low failure rate, reducing the later maintenance cost.
- Aesthetic Appearance: Modern and simple design style, which can be harmoniously matched with various equipment, realizing the unity of practicality and aesthetics.
In order to better meet the personalized needs of different customers and scenarios, the LW26 20A Voltmeter Transfer Switch provides a variety of optional configurations, and the specific classification and available options are as follows:
|
Classification Dimension |
Available Options |
|
By Application |
Main circuit switching; Direct motor control; Master command control & measurement |
|
By Operation Mode |
Detented type; Momentary type; Detented-momentary combined type |
|
By Section Count |

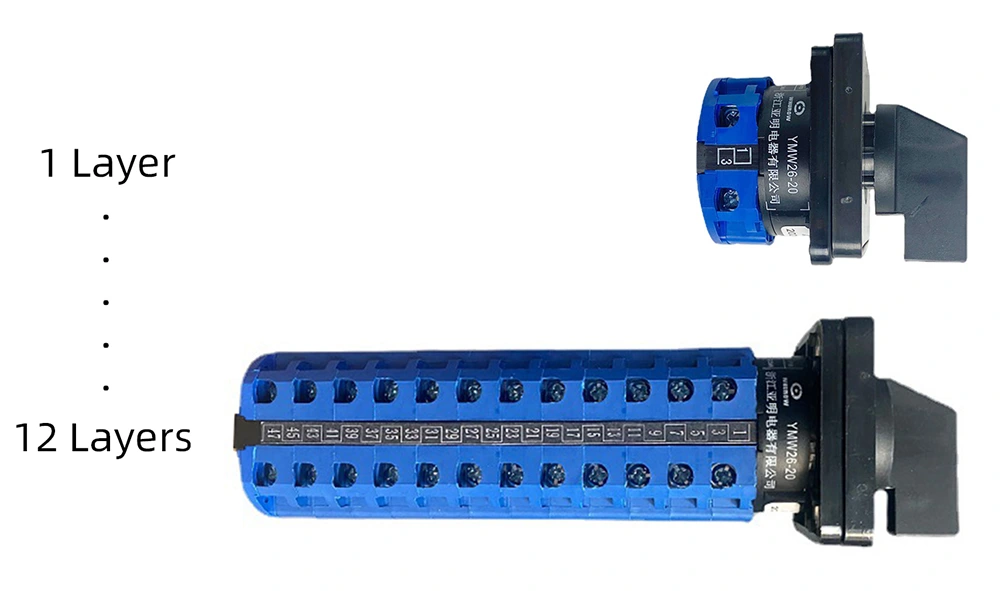

Detented type: 1–12 sections; Momentary type: 1–3 sections; Motor control type: 1–6 sections;Special section counts available via customization |
|
By Switching Angle |
30°, 45°, 60°, 90° (optional) |
|
By Panel Shape |
Square, round & other multiple choices |
The LW26 20A Voltmeter Transfer Switch has strong environmental adaptability and can work stably under normal operating conditions. The specific requirements are as follows:
- Ambient Temperature: The ambient air temperature does not exceed +50℃, the average temperature within 24 hours does not exceed +35℃, and the lower limit is not lower than -25℃;
- Installation Altitude: The installation point altitude does not exceed 4000m;
- Relative Humidity: At the highest temperature of +50℃, the relative humidity of the air does not exceed 50%; at a lower temperature (such as 20℃), the relative humidity is allowed to reach 90%. For occasional condensation caused by temperature changes, special treatment measures can be taken to ensure the normal operation of the switch.
YAMING's factory is located in Zhejiang, China, with a complete and advanced production system and strict operating mechanism. For 30 years, it has always adhered to the development path of "technology-based and quality-oriented", continuously optimizing production processes and improving product quality. The LW26 20A Voltmeter Transfer Switch is a sincere work created by YAMING with ingenuity. We look forward to cooperating with customers at home and abroad through this product to promote the progress and development of the electrical control field.
Choose YAMING, choose reliability. YAMING will always be your trusted partner, injecting the soul of precise control into your equipment.
