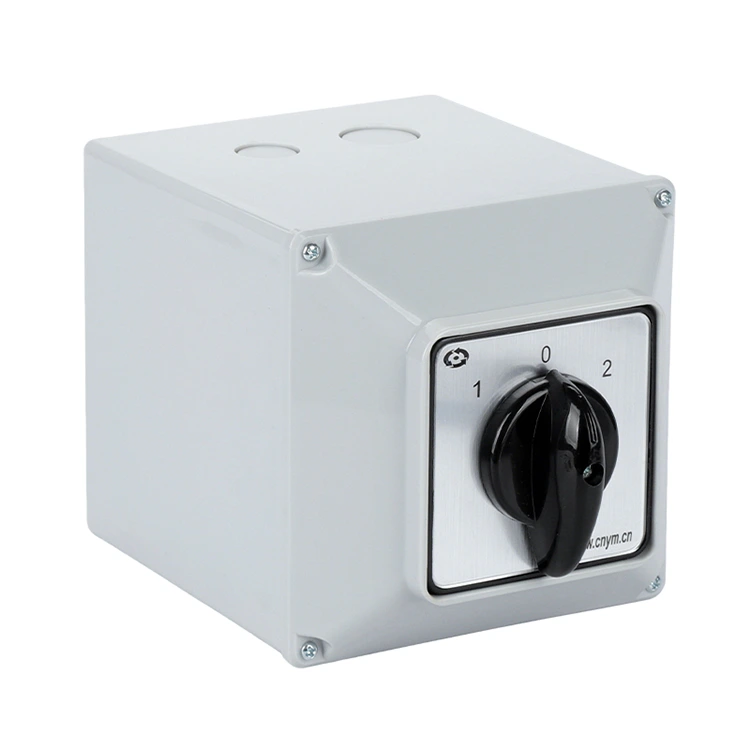

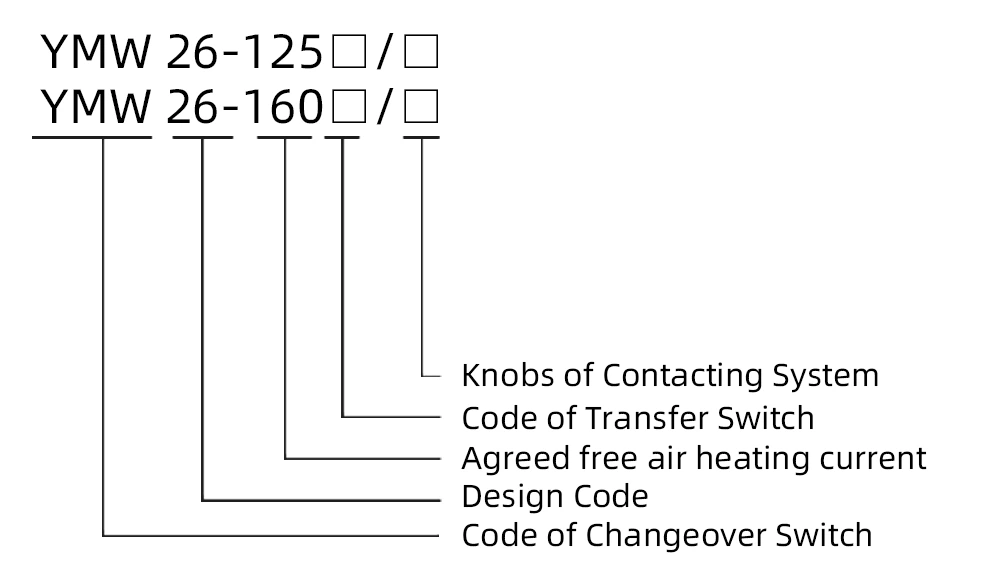

The YAMING LW26 125A 160A waterproof box cam switch is a high-performance 3-position changeover rotary device, engineered to meet the rigorous demands of industrial electrical control. Developed by Zhejiang Yaming Electric Co., Ltd.—a leading factory specializing in electrical switch production—the switch integrates practical waterproof design with stable control performance, providing a reliable solution for connecting or disconnecting circuits in complex environments. Its internal model YMW26-125M 160M is a testament to YAMING's rigorous product coding system, ensuring traceability and quality control throughout the production process.

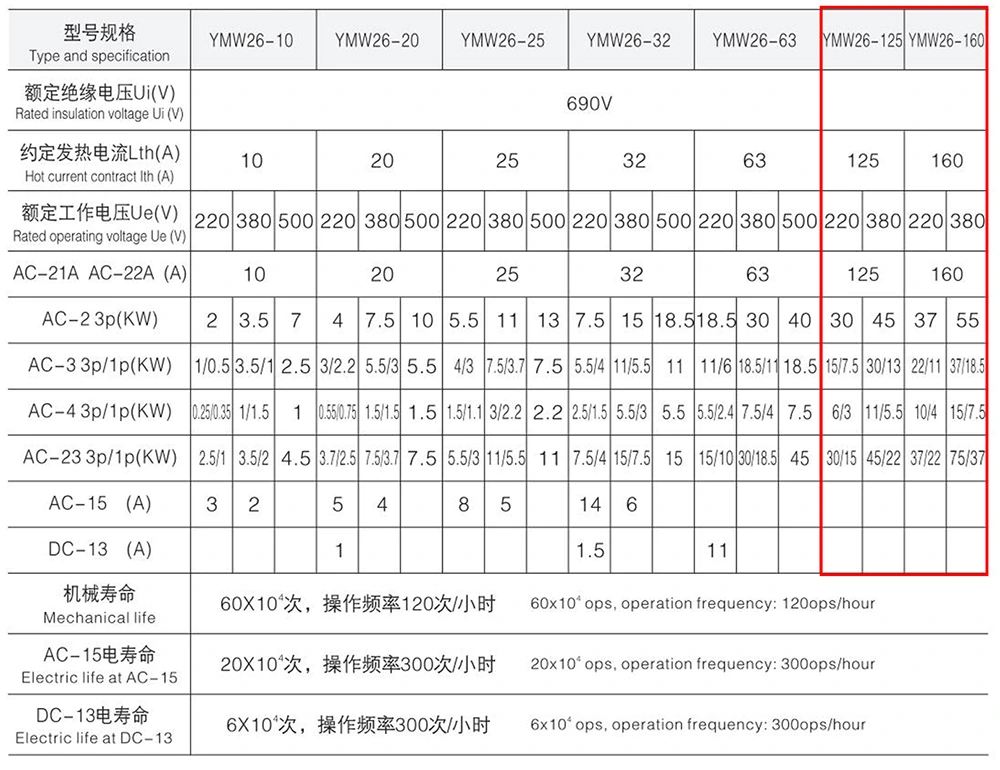

This rotary cam switch is meticulously designed for both AC and DC circuits, with precise parameter matching to ensure stable operation:
- Applicable Circuits: AC circuits with a frequency of 50Hz and rated voltage up to 690V; DC circuits with voltage up to 240V
- Rated Current: 125A, 160A
- Core Function: Manual control for non-frequent switching to connect or disconnect circuits, with reliable control and conversion capabilities
- Extended Applications: Direct control of small AC motors, as well as command control and circuit measurement scenarios
The YAMING 125A 160A waterproof box cam switch stands out with its outstanding design and performance advantages, featuring:
- IP65 Waterproof Enclosure: Effectively resists moisture and dust, adapting to harsh working environments
- Compact Size: Facilitates flexible installation in tight spaces, improving layout efficiency of electrical equipment
- Smooth Switching Operation: Ensures convenient manual control, with high safety and reliability to prevent operational failures
- Versatile Functions: Meets multiple control needs, realizing integration of various circuit control scenarios
- Superior Insulation Performance: Adopts streamlined structure and premium materials, enhancing electrical safety and extending service life
- Aesthetic Design: Sleek and modern appearance blends practicality with aesthetics, matching diverse equipment styles

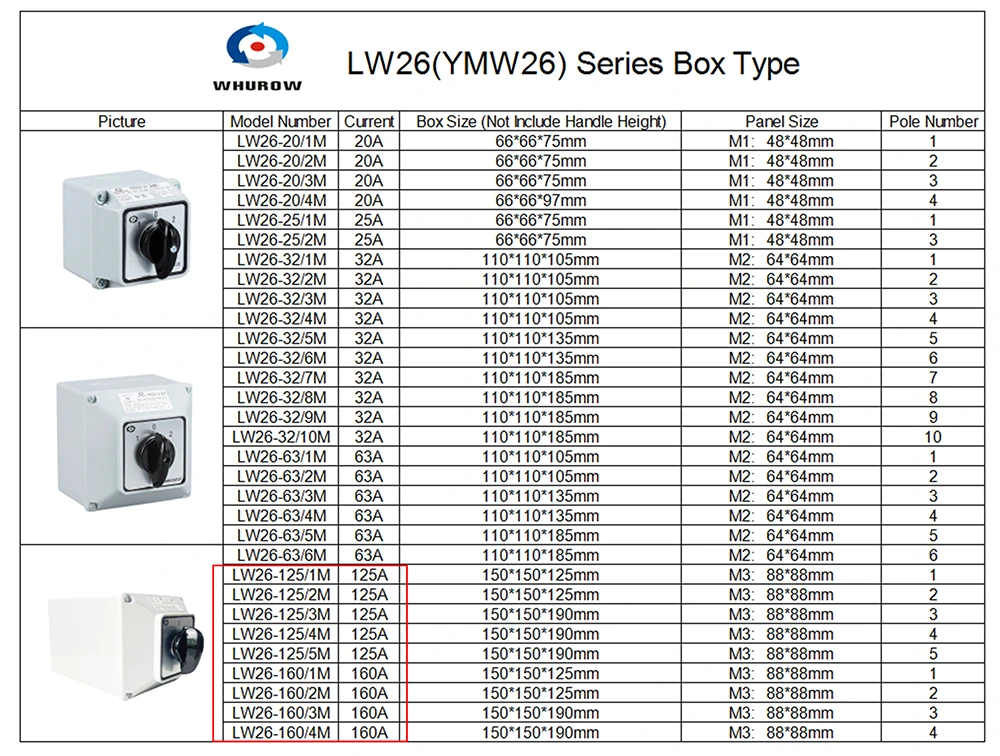

With a comprehensive classification system, the LW26 series switch can be customized to meet versatile application needs, making it widely used as circuit control switches, test equipment switches, motor control switches, and main control switches. The classification system covers multiple dimensions:
- By Purpose: Main circuit conversion, direct motor control, and circuit measurement
- By Operation Mode: Self-locking, momentary, and momentary locking type
- By Switching Angle: 30°/45°/60°/90°, adapting to different operational stroke requirements
- By Panel Shape: Square, round, and other customized shapes, matching various equipment panel designs
- Additional Classification: Based on operation mode and actuator position, further refining application scenarios
The YAMING 125A 160A waterproof box cam switch exhibits strong environmental adaptability, with clear requirements for normal operating conditions to ensure optimal performance:
- Temperature Range: Ambient air temperature shall not exceed +50℃, 24-hour average temperature not exceeding +35℃, and minimum temperature not falling below -25℃
- Installation Altitude: No higher than 4000m
- Relative Humidity: At maximum temperature of +50℃, relative air humidity ≤50%; at lower temperatures (e.g., 20℃), relative humidity can reach up to 90%. Occasional condensation caused by temperature variations can be addressed with special treatment measures
