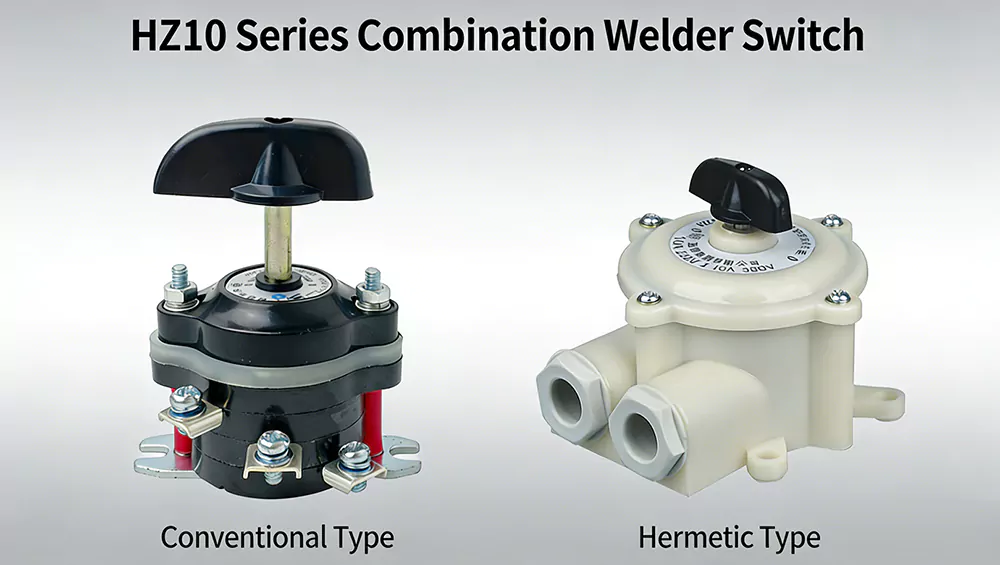

The HZ10-M Airtight Type Combination Cam Switch 10A is rated for AC 50 Hz, up to 380 VAC and 220 VDC, with a rated current of 10A. It supports manual, infrequent switching, breaking and conversion for resistive and resistive-inductive mixed loads, and controls small-capacity AC motors.
The HZ10-M Airtight Type Combination Cam Switch 10A regulate welding current below 100A. They serve as main circuit switches and auxiliary circuit changers for electrical equipment, suitable for AC 50/60 Hz up to 380V.
● Technical Specifications
● Operating Frequency: AC 50 Hz (Welding model compatible with 50/60 Hz)
Rated Voltage Capacity: Up to 380 VAC / 220 VDC
● Core Performance & Functions
● Designed for manual, intermittent switching, disconnecting and circuit changing
Suitable for resistive loads and combined resistive-inductive loads
Direct control interface for small-power AC motors
● Wide Application Fields
● Main circuit switching and protection for general industrial electrical devices
Auxiliary loop conversion and control in power distribution systems
Specialized current and circuit changeover for welding machine equipment
● Manually switch, disconnect and change resistive & resistive-inductive mixed load circuits
● Control small-power AC motors directly
● Serve as main circuit control for general electrical equipment
● Switch and convert auxiliary circuits in power distribution systems
● Adjust welding current below 100A and change circuits for welding machines
