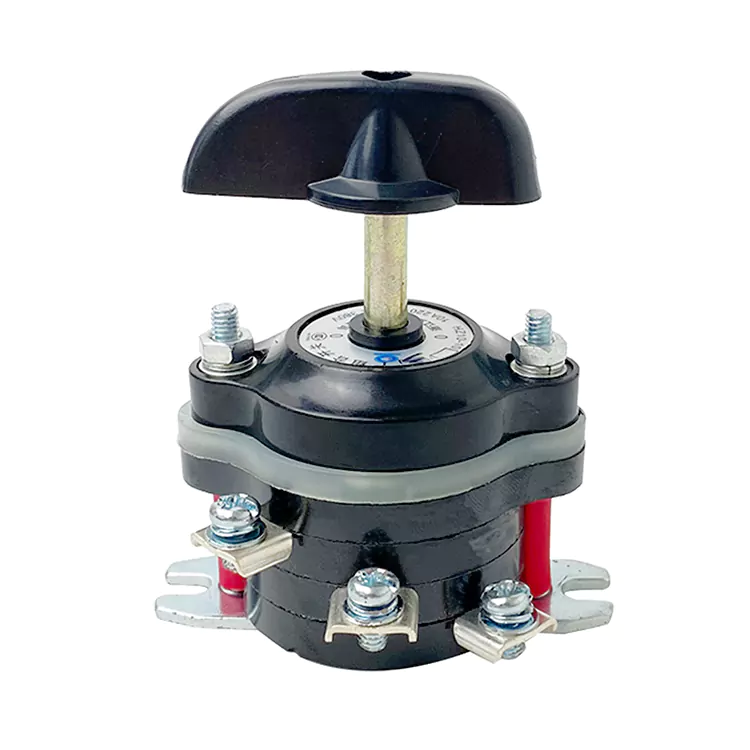

HZ10-10/3 Combination Cam Switch 10A

HZ10-10/3 Combination Cam Switch 10A are mainly applicable for AC 50Hz, rated operating voltage up to 380V (AC) and below, DC voltage up to 220V (DC) and below, with rated current up to 10A.It is used for manual, infrequent switching, breaking, and conversion of resistive-inductive mixed load circuits and resistive load circuits, and can also control small-capacity AC motors.

The HZ10-10/3 Combination Cam Switch 10A are suitable for use in welding machines to regulate currents below 100A, and for the main circuits of electrical equipment and the conversion of auxiliary electrical appliances at AC 50Hz (or 60Hz) with a rated voltage of 380V and below.

Product Feature

1. Electrical Ratings

● Frequency: AC 50 Hz (Welding type supports 50/60 Hz)

● Rated Voltage: Up to 380 VAC / 220 VDC

2. Functional Capabilities

● Manual, infrequent switching, breaking and circuit conversion

● Handles resistive loads and resistive-inductive mixed loads

● Controls small-capacity AC motors directly

3. Application Scope

● Main circuit control for general electrical equipment

● Auxiliary circuit switching and conversion

● Dedicated changeover for welding equipment systems

Product Application

● Manual switching, breaking and conversion of resistive and resistiveinductive mixed load circuits

● Control of smallcapacity AC motors

● Main circuit control for general electrical equipment

● Auxiliary circuit switching and conversion in electrical systems

● Current regulation (<100A) and circuit changeover for welding machines

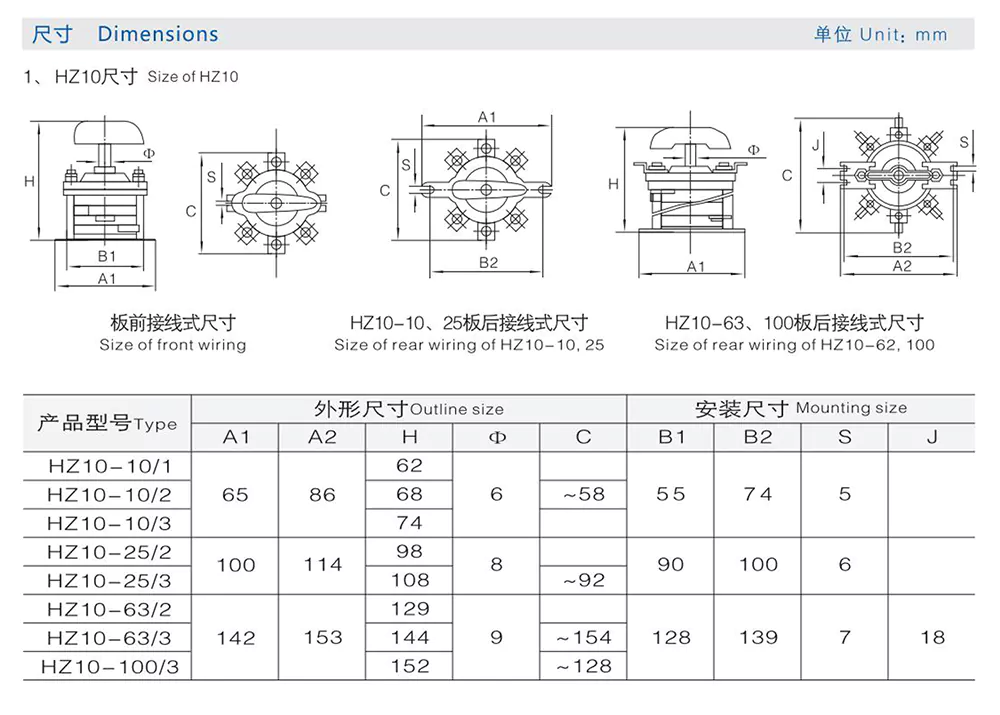

Product Size
