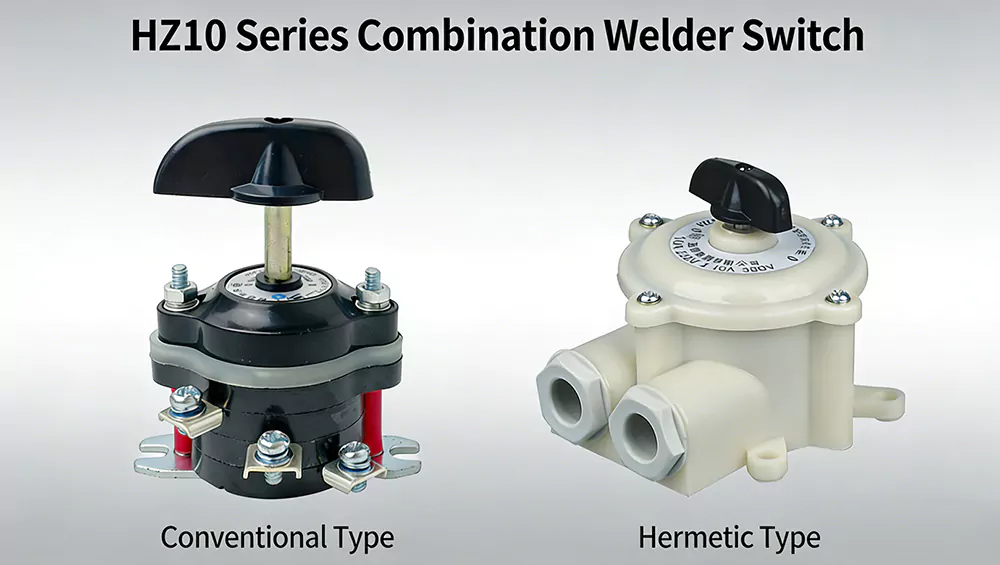

The HZ10-6E91 Installation Behind the Board 10A Combination Switch operates at AC 50 Hz, supporting rated voltages up to 380 VAC and 220 VDC with a 10A rated current. Designed for manual, intermittent operation, it switches, disconnects and converts resistive & resistive-inductive mixed loads, and controls small-capacity AC motors reliably.
The HZ10-6E91 Installation Behind the Board 10A Combination Switch precisely adjust welding current below 100A. Ideal for main circuit control and auxiliary circuit conversion of electrical equipment, they fit AC 50/60 Hz systems with voltage up to 380V.
● Rated Performance：50 Hz, up to 380 VAC / 220 VDC (welding supports 50/60 Hz)
● Operation Capability：Manual intermittent switching for resistive & mixed inductive loads; controls small AC motors
● Usage Scenarios：Main power circuits, auxiliary distribution loops, dedicated welding equipment changeover
● Manually switch, break and change resistive and resistive inductive mixed load circuits
● Directly control small-power AC motors
● Control main circuits for general electrical equipment
● Switch and convert auxiliary circuits in power distribution systems
● Adjust welding current under 100A and switch circuits for welding machines
