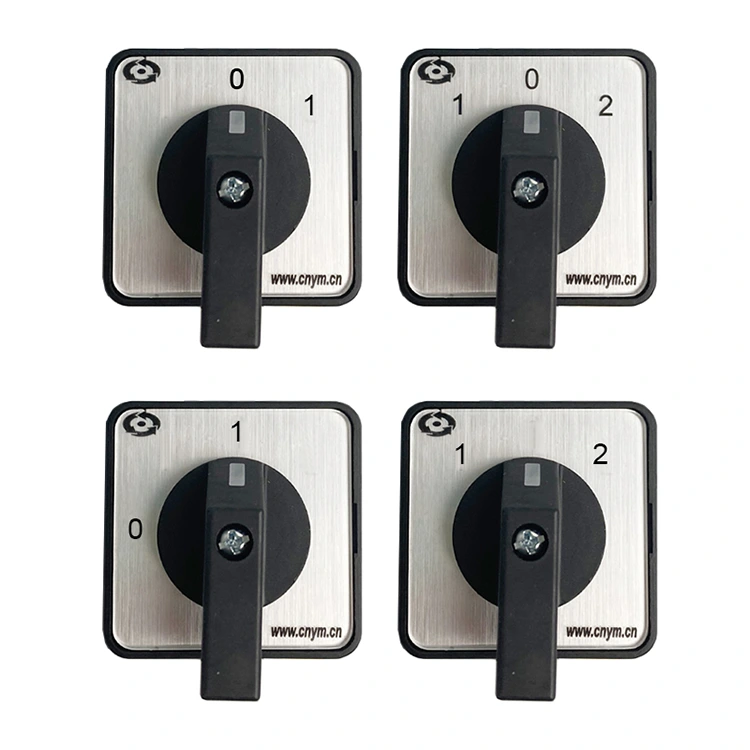

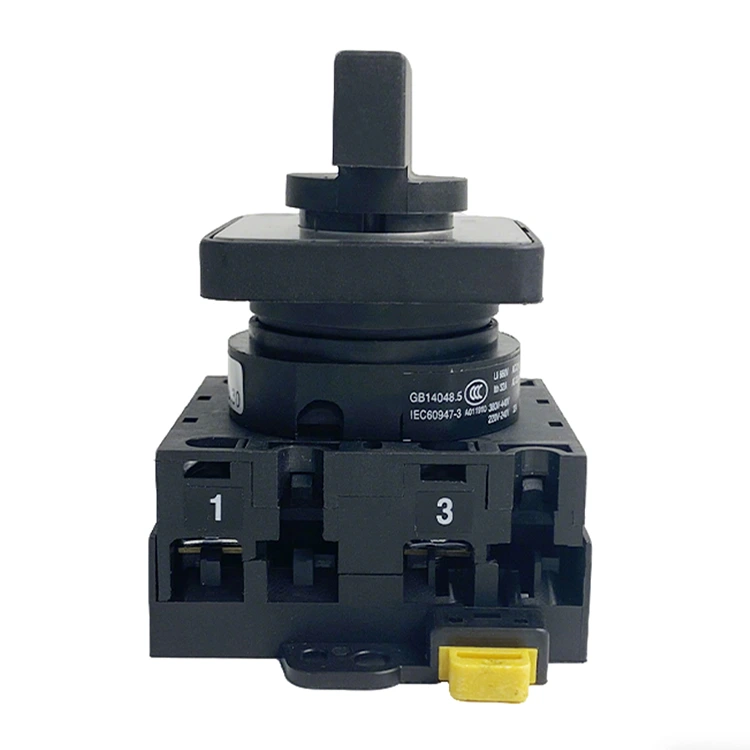

32A Three Position DIN Rail Mounting Cam Switch

The YAMING 32A Three Position DIN Rail Mounting Cam Switch, belonging to the YMW42 series, is specifically engineered for AC 50Hz electrical systems with a maximum voltage of 690V. Developed by YAMING, a seasoned factory specializing in electrical switches, this product adheres to high-quality manufacturing standards, combining advanced technology and premium materials to achieve precise and stable electrical circuit control. It is designed for DIN rail mounting, which simplifies installation and adapts to various limited space layouts, providing great convenience for electrical system assembly.

32A Three Position DIN Rail Mounting Cam Switch is widely compatible with CNC machine tools and various electrical devices, suitable for multiple scenarios such as circuit control, lighting protection, and motor control. As a trustworthy supplier, YAMING ensures the product's quality through strict production control in its own factory, making it an ideal choice for global electrical control system applications.

Product Features

- Compact and Flexible Installation: With a compact size, the switch enables flexible installation and layout in space-constrained environments, perfectly matching the installation requirements of various electrical cabinets and equipment.

- Diverse Functional Configurations: Equipped with rich and diverse functions, it can be customized through a variety of cam combinations to meet the requirements of different contact on-off modes, thereby satisfying various complex control needs of users.

- Excellent Electrical Safety: Adopting a compact structure and high-quality selected materials, the switch boasts excellent insulation performance, which can effectively prevent electrical hazards such as short circuits and electric shocks, ensuring the safety of the electrical system and operators.

- Smooth and Reliable Operation: During conversion, the switch operates smoothly and flexibly, with high safety and reliability, ensuring stable performance even in long-term continuous operation.

- Stylish and Innovative Appearance: Integrating practicality and beauty, the stylish and innovative look makes it ideal for matching different equipment appearance designs, enhancing the overall aesthetics of the equipment.

Structural Parameters

The YAMING 32A Three Position DIN Rail Mounting Cam Switch is designed with excellent structural performance, with the following key parameters:

- Positioning Angles: Optional 30°, 45°, 60°, 90°, to meet different operation stroke requirements.

- Maximum Operation Positions: Up to 12 positions, enabling multi-stage control.

- Switch Layers: 1–12 layers, which can be flexibly configured according to the number of control circuits.

- Wiring Design: Adopting hidden wiring design to ensure contact safety; the terminals are anti-drop type, effectively preventing wiring loosening and ensuring stable connection.

- Material Selection: Contact material is silver alloy, which has excellent electrical conductivity and wear resistance; the housing is made of reinforced flame-retardant nylon 66 with V-grade flame retardancy, providing strong flame retardant protection.

Product Applications

This 32A Three Position DIN Rail Mounting Cam Switch is widely applicable to electrical control circuits of CNC machine tools and various electrical devices. Its specific application scenarios include:

- Control of electrical equipment and systems;

- Lighting protection and control in various occasions;

- Signal transmission and program selection;

- Voltage and current measurement selection;

- Control of small-capacity squirrel-cage asynchronous motors.

As a professional manufacturer and supplier based in China, YAMING is committed to providing high-quality electrical switch products. The 32A Three Position DIN Rail Mounting Cam Switch is a classic product integrating technology, quality and practicality, which can effectively meet the diverse needs of global customers for electrical control.

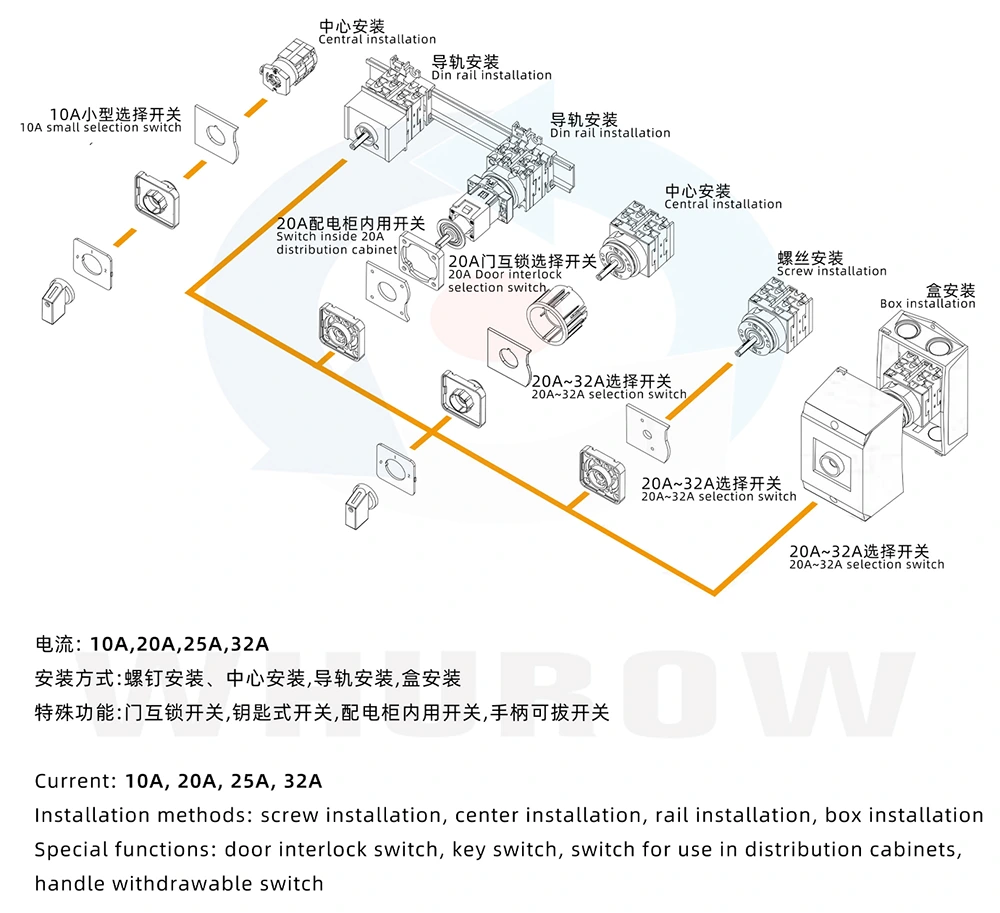

Schematic Diagram

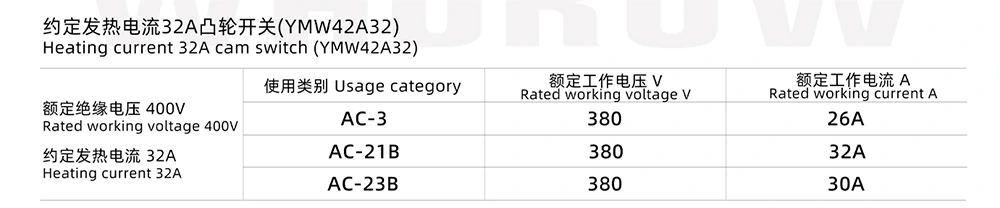

Technical Parameters
