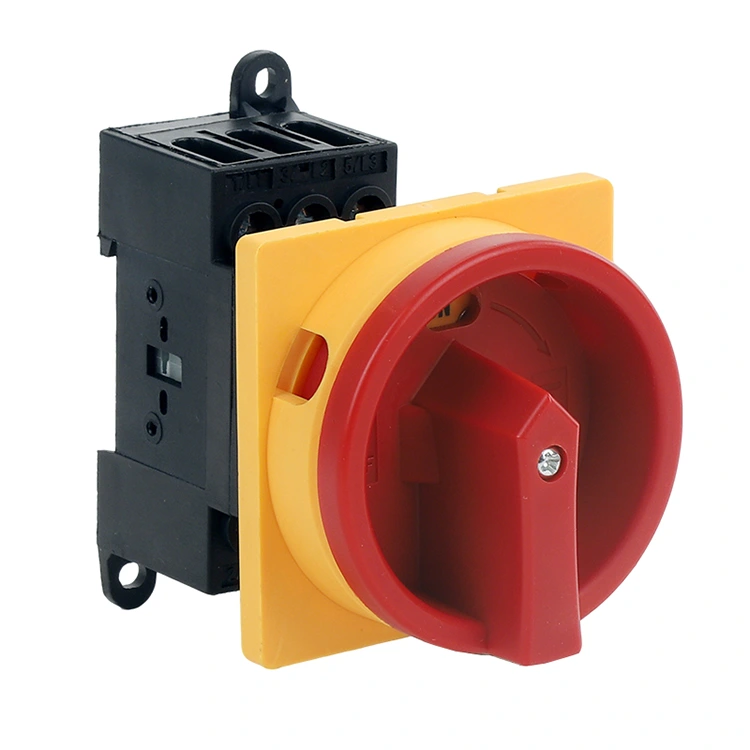

The YAMING 25A Z Type DIN Rail Mounting Split-type Padlock Cam Switch (YMW42 series) is a specialized switch device developed for low and medium voltage electrical control systems, suitable for AC 50Hz, 690V and below CNC machine tools and various electrical equipment. Its core functions cover multiple scenarios, including on/off control of electrical control circuits, lighting protection, signal and program selection, and voltage and current measurement selection. It can also meet the control needs of small-capacity squirrel-cage asynchronous motors. As a professional manufacturer, YAMING consistently relies on exquisite craftsmanship and innovative technology, achieving a perfect balance between practicality and aesthetics, making this cam switch an ideal choice for CNC machine tools, various electrical equipment, and small motor control.
1. Compact design, flexible layout: The 25A Z Type DIN Rail Mounting Split-type Padlock Cam Switch features a compact size design, allowing for flexible layout in limited installation spaces, adapting to the internal structural design of various equipment and significantly improving installation convenience.
2. Rich functionality, wide applicability: 25A Z Type DIN Rail Mounting Split-type Padlock Cam Switch possesses diverse control functions, accurately matching control needs in different scenarios without requiring additional auxiliary equipment, reducing overall circuit design costs.
3. High-quality materials, safe and reliable: Utilizing precision structural design and high-quality materials, it boasts excellent insulation performance, effectively preventing electrical safety hazards; the contacts are made of silver alloy, and the casing uses reinforced flame-retardant nylon 66, meeting the V-level flame retardant standard, further enhancing the product's safety protection level.
4.Smooth operation, stable and durable: The switching operation is flexible and smooth, with precise positioning. It maintains stable performance even under long-term high-frequency use, offering high safety and reliability, significantly extending the product's service life.
5.Aesthetically Pleasing and Practical, with Strong Adaptability: The brand-new exterior design combines practicality and aesthetic value, perfectly matching the design style of different devices and enhancing the overall texture of the equipment.
1. Multi-Position, Multi-Angle Adjustment: Supports multiple positioning angles such as 30°, 45°, 60°, and 90°, achieving up to 12 operating positions. Equipped with 1–12 switch layers, it can be flexibly configured according to actual control needs.
2. Flexible Contact Combination: Through various cam combinations, it can meet the on/off requirements of different contact types, adapting to diverse circuit control logic and offering strong versatility.
3. Safe Wiring Design: Adopts a hidden wiring structure to effectively ensure the safety of contact connections; the terminals feature an anti-loosening design to prevent loosening or detachment during wiring, improving circuit connection stability.
25A Z Type DIN Rail Mounting Split-type Padlock Cam Switch is widely used in various electrical applications at AC 50Hz, 690V and below. Core application areas include: circuit control and program switching of CNC machine tools, lighting protection and signal control of industrial production equipment, voltage and current measurement selection in power measurement systems, and start/stop control operations of small-capacity squirrel-cage asynchronous motors. Whether in industrial automation production lines, precision machining workshops, or various electrical control complete sets of equipment, this YAMING cam switch plays a core role with its stable performance.
As a professional supplier and manufacturer, YAMING has over thirty years of experience in the research, development, and production of electrical switches. With exquisite craftsmanship, innovative technical strength, and a strict quality control system, we provide high-quality electrical control products to global customers. Our production base is located in China, boasting a complete production chain and strong production capacity. We can provide customized product solutions according to customer needs, and offer professional pre-sales consulting and after-sales technical support to help customers achieve efficient and safe electrical control management.
|

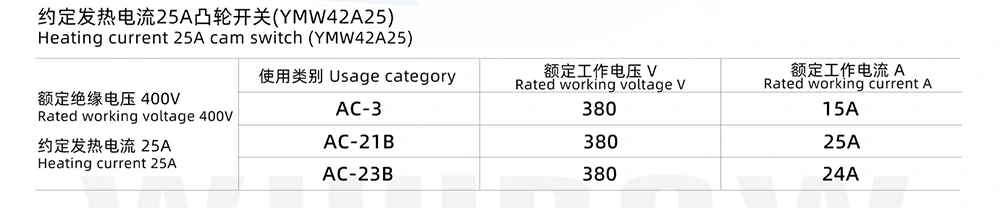

Specification |
Usage category |
Rated working voltage V |
Rated working current A |
|
Rated insulation voltage 400VRated working voltage 400VHeating current 25A |
AC-3 |
380 |
15A |
|
|
AC-21B |
380 |
25A |
|
|
AC-23B |
380 |
24A |
