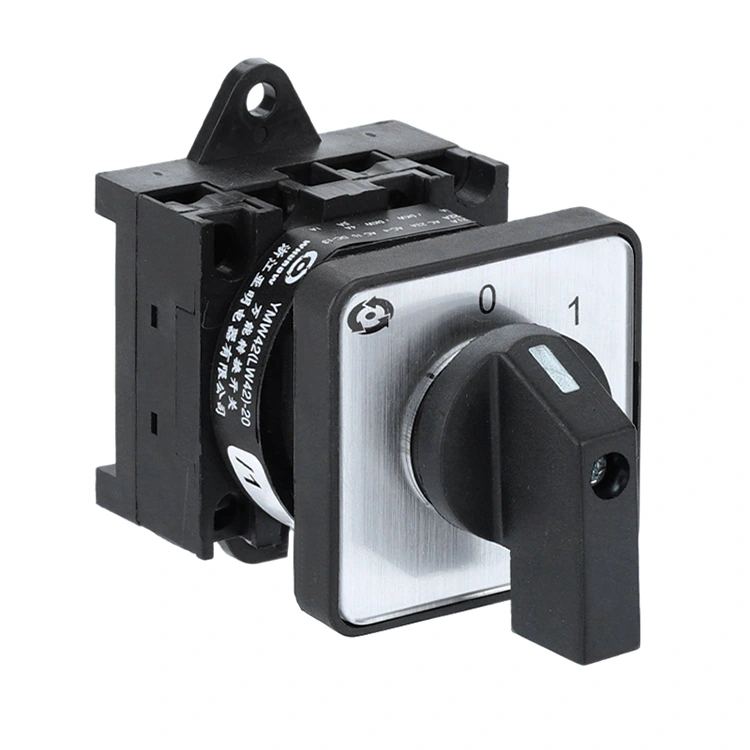

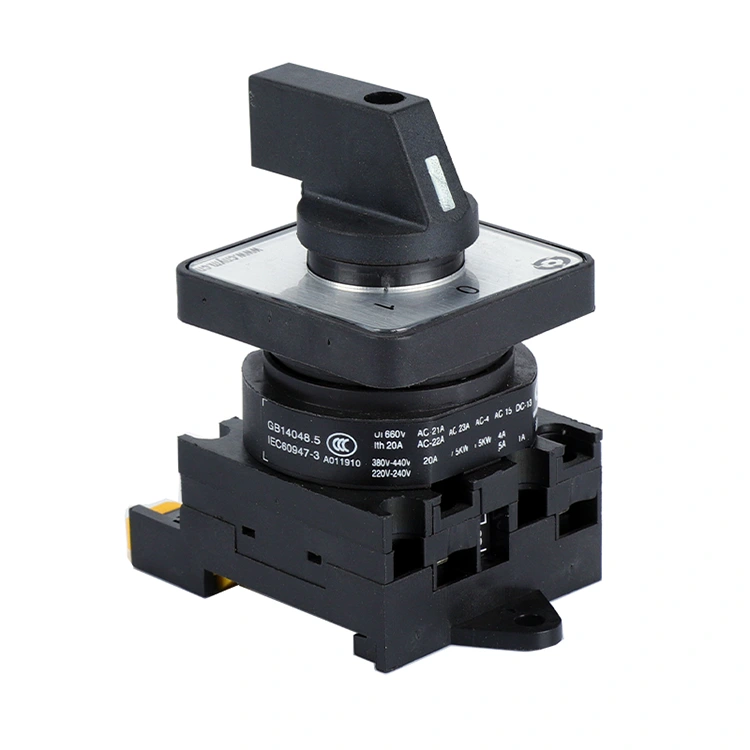

20A Multiple Position DIN Rail Mounting Cam Switch

The YAMING 20A Multiple Position DIN Rail Mounting Cam Switch is a high-performance electrical control component tailored for precise circuit control. Designed with DIN rail mounting, it enables convenient and efficient installation, adapting to the compact layout requirements of modern electrical equipment. This switch is specifically applicable to AC 50Hz, 690V and below CNC program-controlled machine tools and electrical equipment, playing a crucial role in electrical control loops.

Its versatile functionality covers control, lighting protection, signal & program selection, voltage & current measurement selection, and it can also control small-capacity squirrel-cage asynchronous motors, fully meeting the diverse control demands of different application scenarios. 20A Multiple Position DIN Rail Mounting Cam Switch features a compact design, rich functions, excellent insulation performance, and smooth switching operations, making it widely applicable to CNC program-controlled machine tools and various electrical equipment. As a trustworthy supplier, YAMING is committed to delivering high-quality electrical control components that combine practicality and aesthetics.

Product Feature

- Compact & Flexible Layout: Adopting a compact size design, the switch can be flexibly arranged in limited installation spaces, effectively saving space for electrical equipment cabinets.

- Rich Functionalities: Integrates multiple practical functions to meet diverse control requirements of electrical control loops, realizing multi-scenario application without additional accessories.

- Excellent Safety Performance: With a streamlined structure and rigorously selected materials, it ensures outstanding insulation performance, effectively preventing electrical hazards and safeguarding electrical safety.

- Smooth & Reliable Operation: The switching operation is smooth and flexible, with high safety and reliability, ensuring stable performance even in long-term continuous use.

- Aesthetic & Practical Appearance: The novel appearance design combines practicality and aesthetics, perfectly matching the designs of different devices and enhancing the overall visual effect of the equipment.

Structural Features

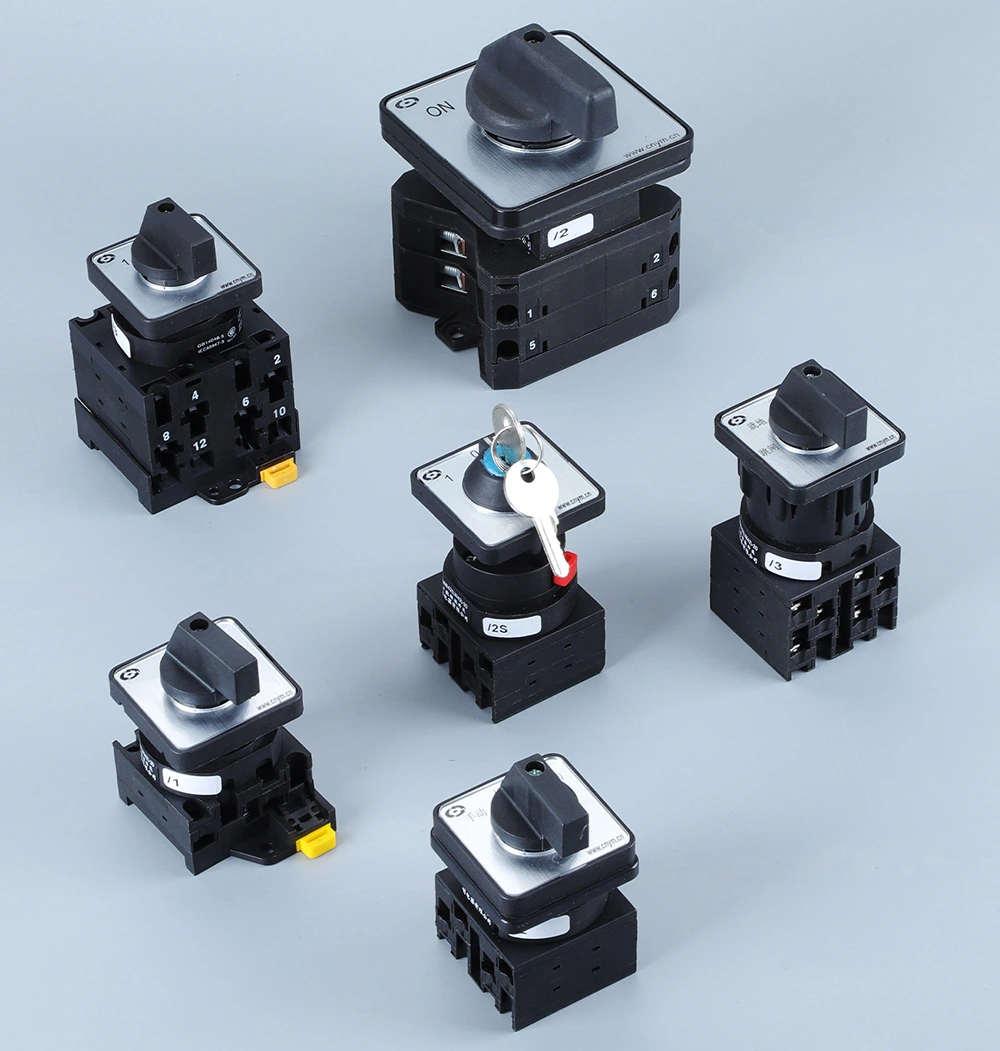

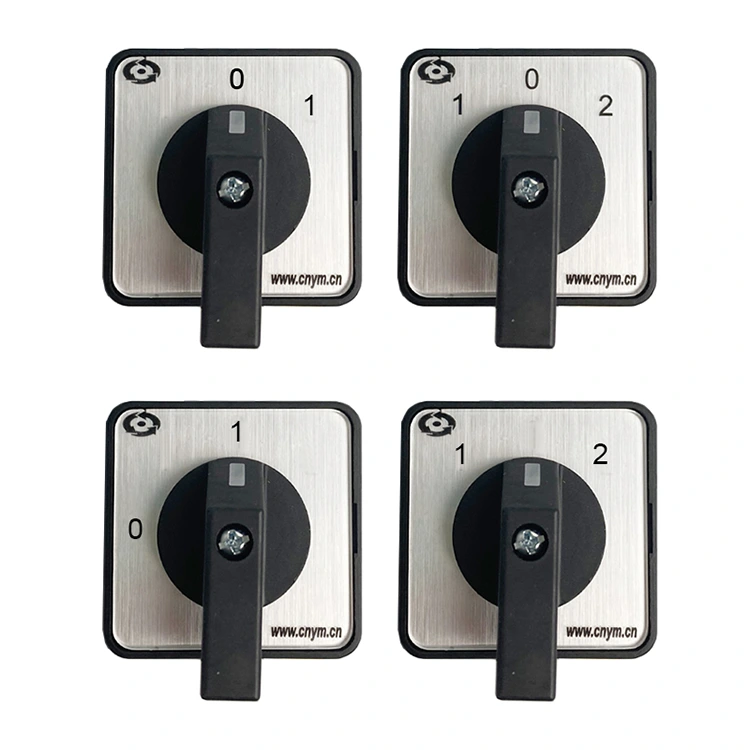

- Diverse Positioning Angles & Stations: Positioning angles cover 30°, 45°, 60° and 90°, with up to 12 operation stations and 1–12 switch layers available, providing abundant options for different control logic requirements.

- Flexible Cam Combination: Through various cam combinations, the switch can fulfill the on-off requirements of contacts in different forms, adapting to personalized circuit control needs.

- Safe Wiring Design: Hidden wiring ensures contact safety, and the terminals are of anti-drop type, effectively preventing loose connections and ensuring stable circuit operation.

- High-Quality Materials: The contact material is silver alloy, which has excellent electrical conductivity and wear resistance; the shell is made of reinforced flame-retardant nylon 66 with a V-level flame retardancy rating, achieving superior flame retardant effect and prolonging the service life of the product.

Product Applications

This 20A Multiple Position DIN Rail Mounting Cam Switch is mainly applicable to AC 50Hz, 690V and below electrical systems, especially suitable for CNC program-controlled machine tools and various electrical equipment. It is widely used in electrical control loops for functions such as control signal transmission, lighting protection, program selection, voltage and current measurement selection, and can also be used to control small-capacity squirrel-cage asynchronous motors. Its stable and reliable performance makes it an ideal choice for industrial production, mechanical processing, and other fields that require precise electrical control. As a professional factory, YAMING can provide customized solutions according to specific application needs of customers.

Schematic Diagram

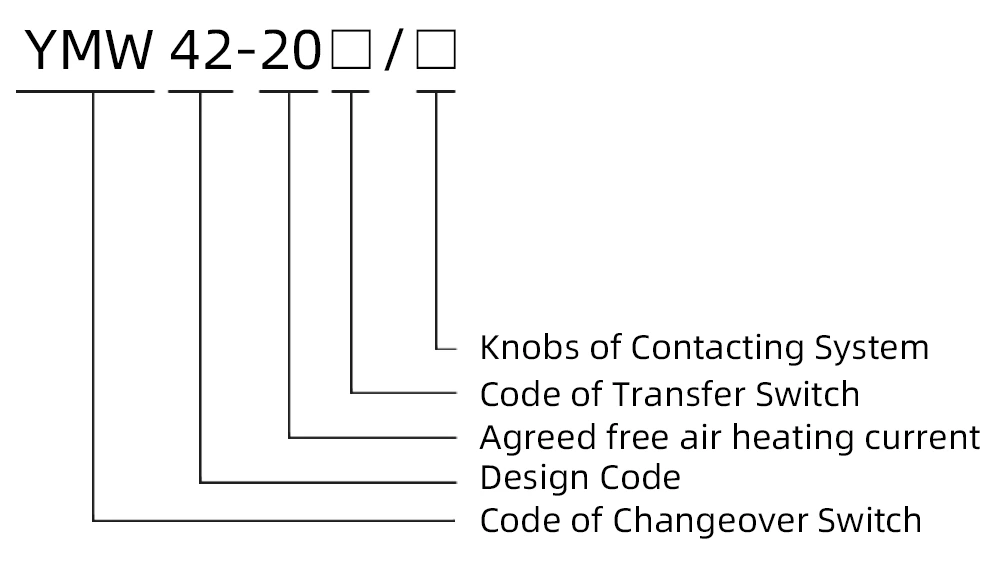

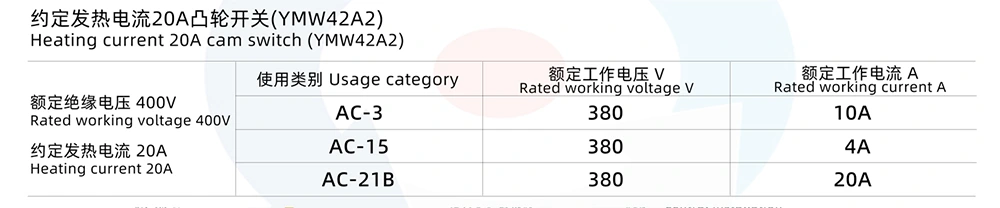

Technical Parameters

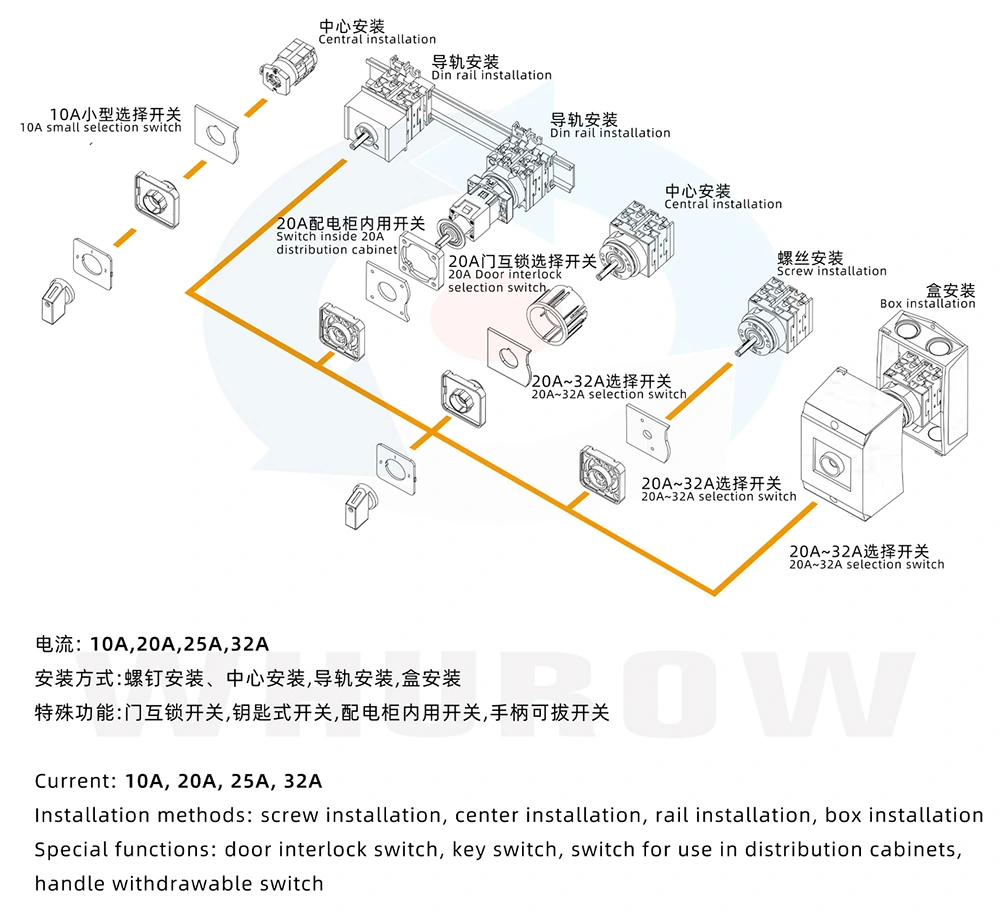

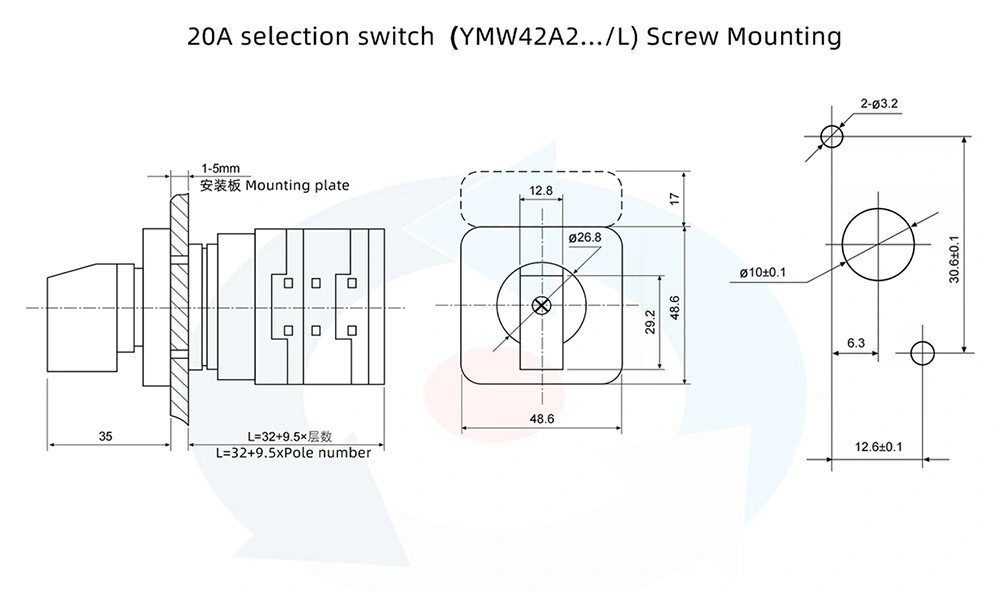

Product outline size installation size
