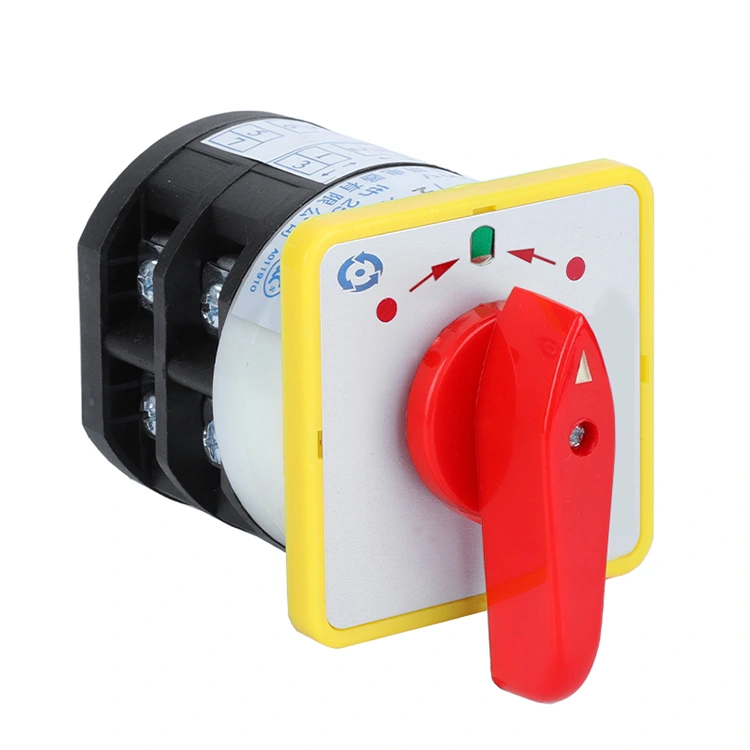

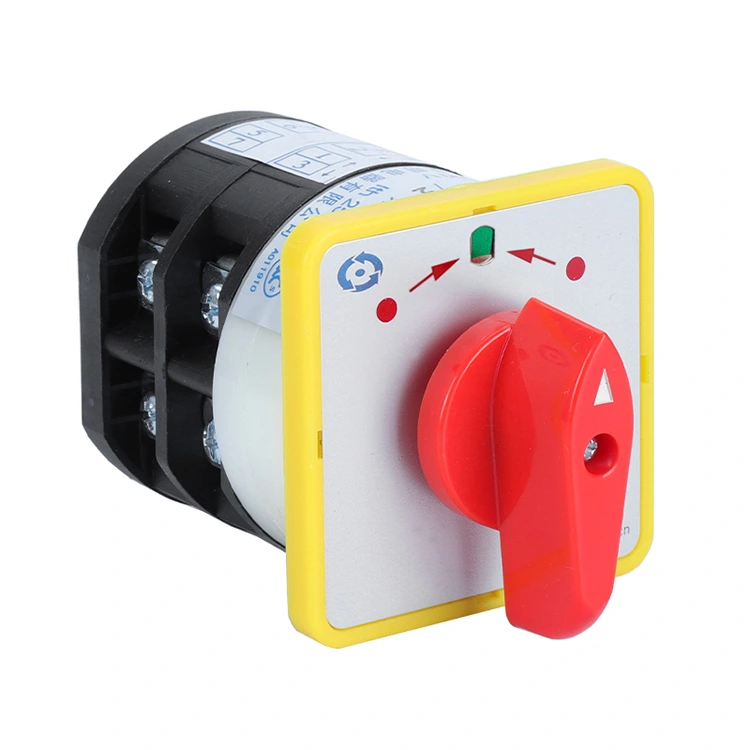

Yaming’s LW5 25A Manual Knob Control Rotary Changeover Switch stands out remarkably in terms of core performance and application scenarios. This series of changeover switches is suitable for circuit systems with AC 50Hz, rated voltage up to 500V and DC voltage up to 440V. It can be used to switch electrical control circuits such as electromagnetic coils, electrical measuring instruments and servo motors, and can also directly control 5.5kW three-phase squirrel-cage asynchronous motors to achieve operations like reversible conversion and speed regulation.
As a professional manufacturer of electrical components, we present the LW 5 Series 25A Manual Knob Control Rotary Changeover Switch, which is known for its excellent detail design and flexible adaptability.We offer a comprehensive customization service for this series: the position and number of layers of switches can be customized to your specific needs, the color of each component can also be customized to your preferences, and the standard color options include black, white, red, yellow and blue, which are perfect for your equipment design needs.
The contact terminals of this 25 A Manual Knob Control Rotary Changeover Switch are equipped with separate plastic protective covers to effectively prevent dust from entering and ensure long-term stable operation.In addition, external connection boards can be added according to different wiring diagram requirements, providing a variety of flexible circuit connection schemes to meet the needs of diverse control scenarios.
Our factory strictly selects high-quality materials for each switch to ensure excellent insulation performance and maximum electrical safety.The product runs smoothly and flexibly, with high safety and reliability.Its stylish and innovative design perfectly balances practicality and aesthetics, making it ideal for a variety of device control applications.
Classification
Application-based: Two categories available – for master control, and for direct control of 5.5kW three-phase squirrel-cage asynchronous motors.
Operation-based: Two types – Self-locking type and self-reset type.
Actuator shape-based: Two variants – knob type and spherical handle type.
Classification by combination of operation mode and actuator position.
