Yaming’s LW5 116A Electric Manual Changeover Switch stands out remarkably in terms of core performance and application scenarios. This series of changeover switches is suitable for circuit systems with AC 50Hz, rated voltage up to 500V and DC voltage up to 440V. It can be used to switch electrical control circuits such as electromagnetic coils, electrical measuring instruments and servo motors, and can also directly control 5.5kW three-phase squirrel-cage asynchronous motors to achieve operations like reversible conversion and speed regulation.

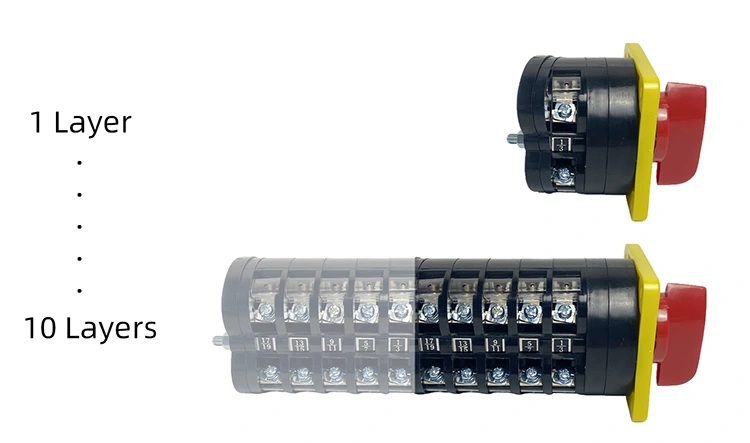

In terms of product features, the LW5 16A Electric Manual Changeover Switch boasts remarkable advantages in details. Our company provides customization service for this series of changeover switches, where the number of positions and layers can be manufactured strictly according to customers' specific requirements.

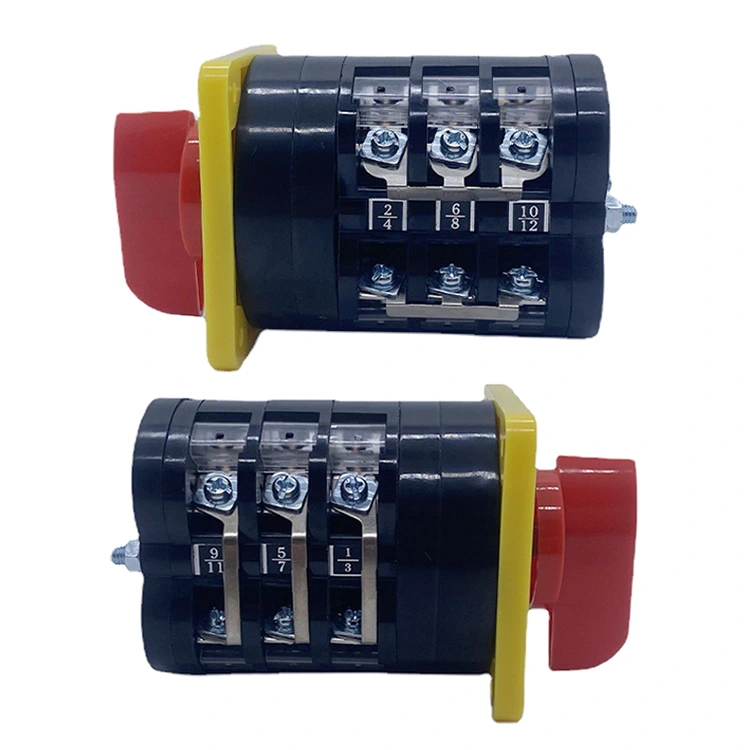

For the 16A specification, the contact terminals are equipped with a plastic cover protection structure, providing independent dust-proof protection for each terminal. Meanwhile, the product can be externally connected with connecting plates according to the requirements of different wiring diagrams, meeting diverse circuit connection needs.
In terms of appearance and color matching, the color of each component of the product can be customized according to customers' preferences, with common colors including black, white, red, yellow, blue and other options.
The 16A Electric Manual Changeover Switch has rich and comprehensive functions to meet the control needs of multiple scenarios. Rigorous material selection ensures excellent insulation performance, building a solid line of defense for electrical safety.
In addition, the switch features flexible and smooth conversion operation as well as outstanding safety and reliability. With a novel and unique appearance, it achieves a high unity of practicality and aesthetics, and can perfectly adapt to the appearance design style of various electrical equipment.
Classification
By application: It can be divided into two types, namely for master control and for direct control of 5.5kW three-phase squirrel-cage asynchronous motors.
By operation mode: It can be divided into two types: Self-locking type and self-reset type.
By actuator shape: It can be divided into two types: knob type and spherical handle type.
By combination of operation mode and actuator position.
