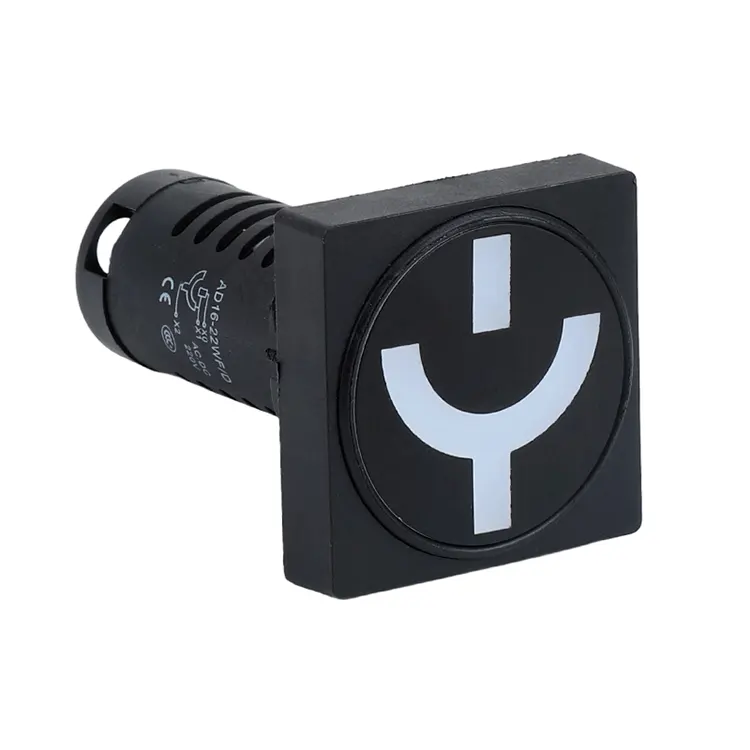

Zhejiang Yaming Electric is a renowned electrical manufacturer with over 30 years of experience, specializing in the research and development and production of industrial control components. The AD16-22W 22mm Mounting Hole Size Square Type Position Indicator Light is a compact square LED position indicator light that fits standard 22mm panel mounting holes. It integrates a high-transmittance cross-patterned lens and red/green dual-color LED illumination, providing clear and intuitive feedback on equipment operating status, position information, circuit status, and operational status. The product boasts a robust construction, wear resistance, durability, and stable performance, ensuring reliable operation in harsh industrial environments.

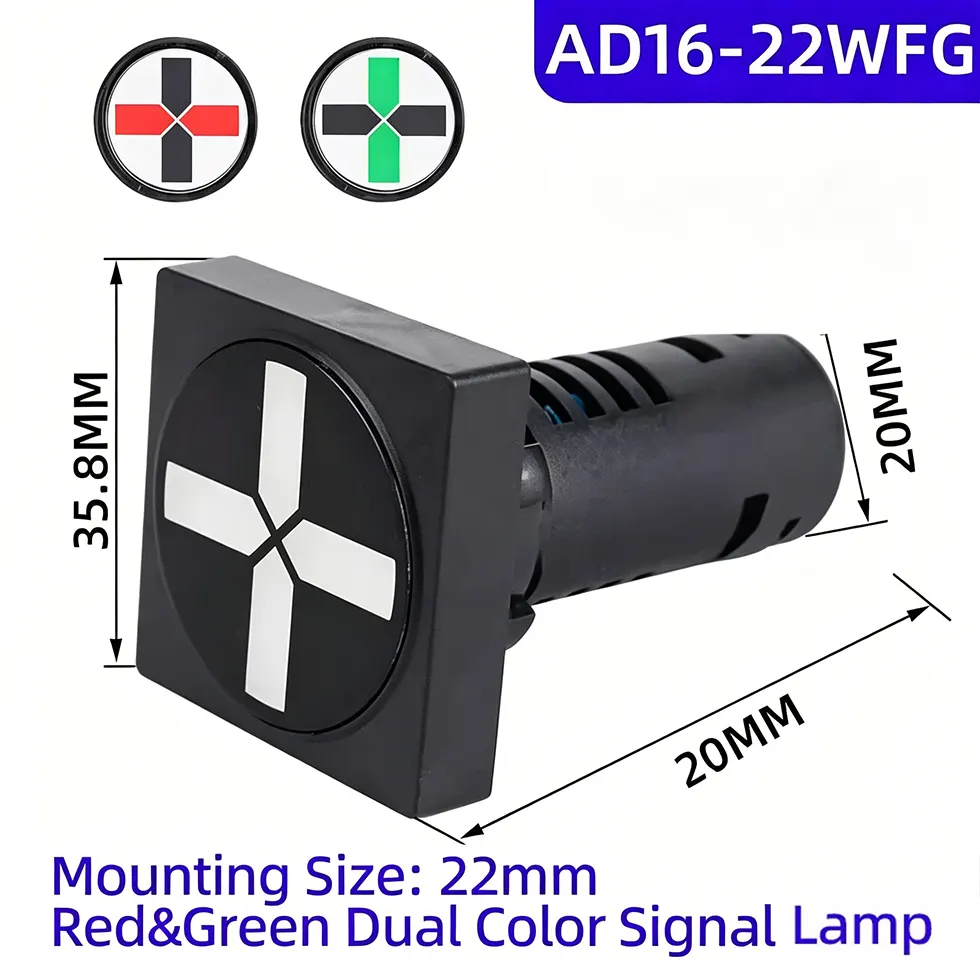

The AD16-22W 22mm Mounting Hole Size Square Type Position Indicator Light fits all industrial standard 22mm panel openings, offering high versatility and allowing for quick snap-fit installation in control cabinets, distribution boxes, and mechanical equipment without complex modifications, reducing installation and maintenance time and costs.

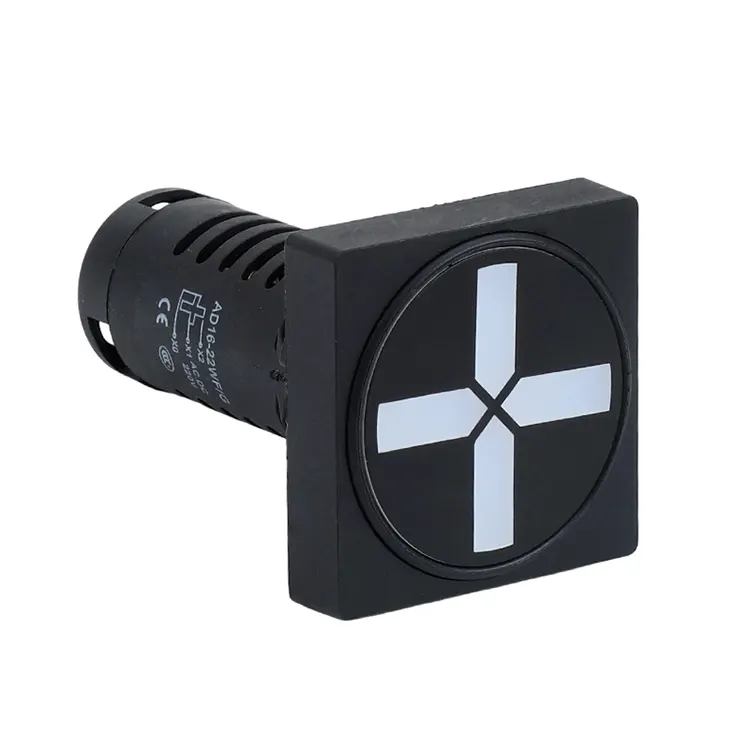

The robust square housing and high-transmittance cross-patterned lens ensure clear identification of switch positions, circuit status, and equipment alignment. The cross-pattern enhances multi-angle visibility, enabling rapid detection of status changes even in dimly lit industrial environments.

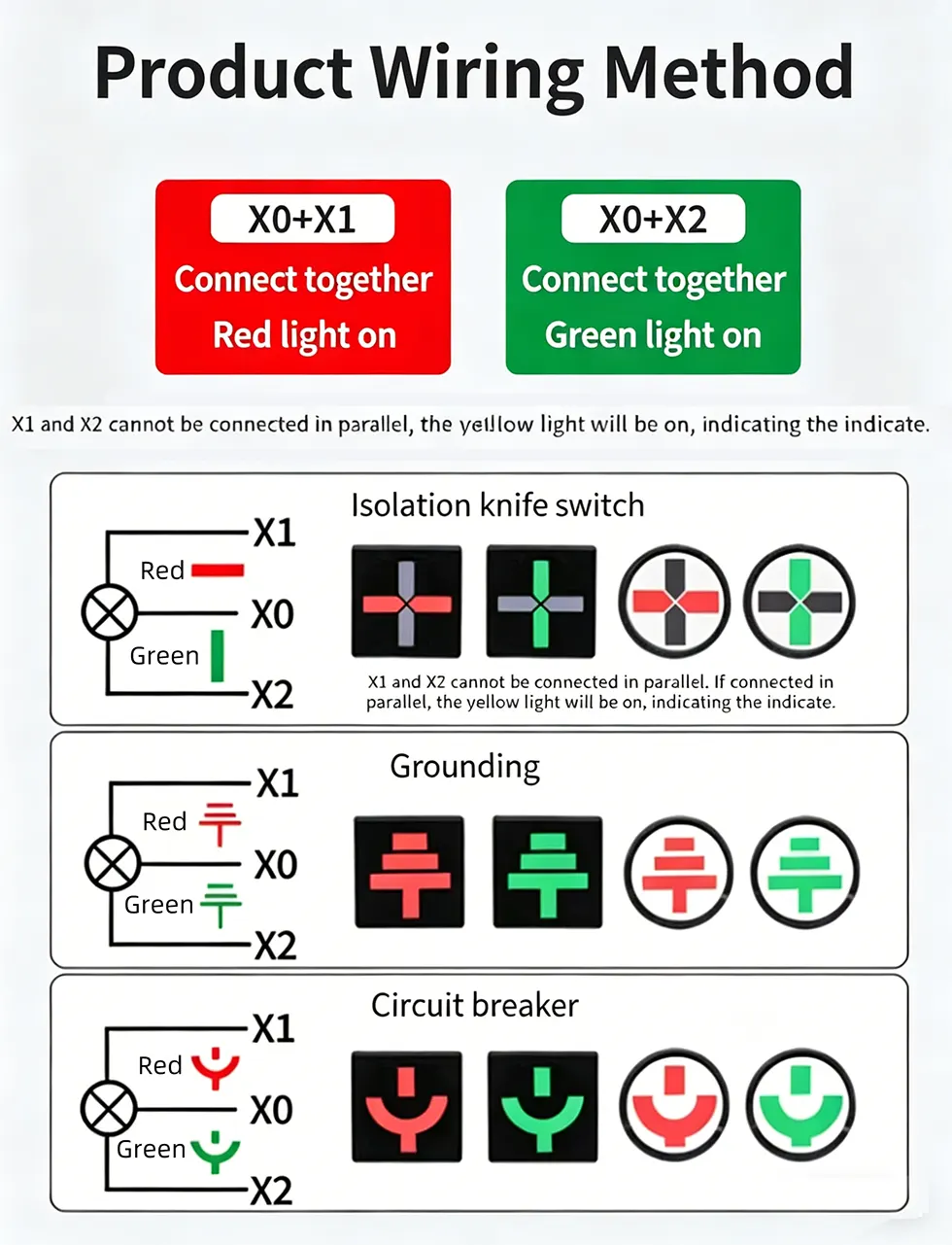

Equipped with high-quality dual-color LED chips, it quickly distinguishes operating status: red indicates fault, shutdown, or circuit closure; green indicates normal operation, power-on, or circuit disconnection, improving operational safety and efficiency.

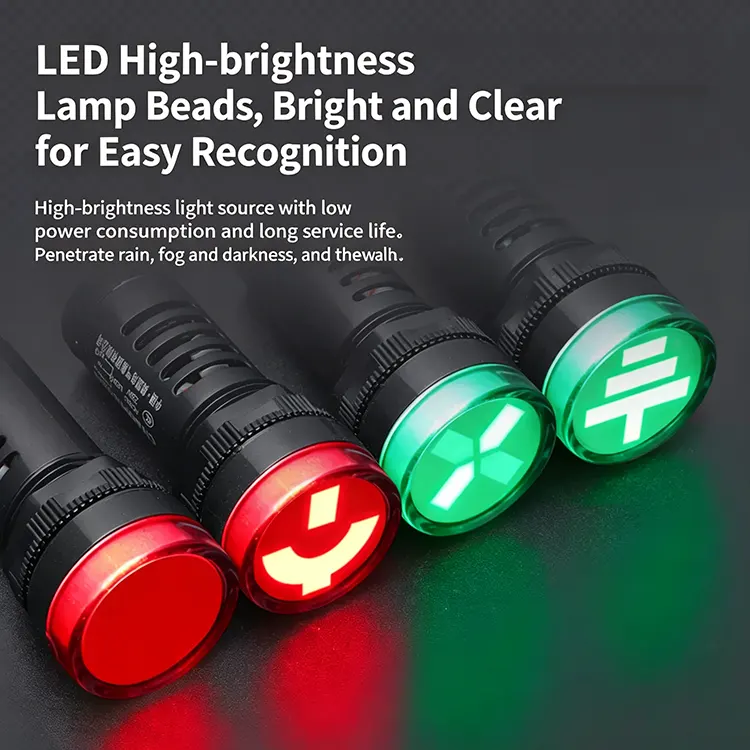

The 22mm Mounting Hole Size Square Type Position Indicator Light AD16-22W uses high-quality LED chips, providing bright and uniform light emission with a brightness ≥100cd/m². It maintains good visibility even in dim, dusty, and humid environments, and has a continuous working life exceeding 30,000 hours, far surpassing traditional incandescent indicator lights.
All components are made of high-strength, wear-resistant materials. The casing is impact-resistant and dustproof (IP40 protection rating), allowing for stable operation in harsh environments such as machine tools, conveyor systems, and outdoor power distribution boxes.
Case 1: Automotive Manufacturing Production Line: A well-known domestic automotive parts manufacturer integrated the AD16-22W into the control panel of its automated assembly line to display the robotic arm's operating status (green for normal, red for fault) and the conveyor system's circuit connection status. Continuous operation for 12 months without failure or brightness decay; ease of installation reduces customer maintenance time by 40%.
Case 2: New Energy Wind Farm Distribution Box
A new energy company applied the AD16-22W to a wind farm project's distribution box to monitor the connection status of disconnect switches and circuit breakers, providing clear visual signals for on-site operators. The product features wide voltage compatibility (AC/DC 12V-380V), strong durability, and suitability for the variable temperature environment of wind farms. Its performance remained stable for two years, ensuring the safe and efficient operation of the power system.
1. Industrial control cabinets, distribution boxes
2. Switch cabinets, circuit breakers, disconnect switches
3. Machine tools, conveyor systems, packaging machinery
4. Automated equipment and production lines
5. Distribution panels and electrical control systems
6. Position feedback and status indication for various industrial machinery
Q1: What is the operating voltage range of the 22mm Mounting Hole Size Square Type Position Indicator Light AD16-22W?
A: Supports wide voltage adaptation, including AC/DC 12V, 24V, 110V, 220V, and 380V, meeting the power supply needs of most industrial equipment. Custom voltage specifications are available upon request.
Q2: Is the AD16-22W suitable for outdoor and humid environments?
A: Yes. This product has an IP40 protection rating, and the housing is made of high-quality materials, making it dustproof and moisture-proof. It can operate stably within a temperature range of -25℃ to +55℃, making it suitable for outdoor, humid, and dusty industrial environments.
Q3: What is the lifespan of the LED light source in the AD16-22W?
A: Utilizing high-quality LED chips, the continuous working life is ≥30,000 hours, which is 5-10 times that of traditional incandescent indicator lights. Under normal use, there is no need to replace the light source, reducing maintenance costs.
