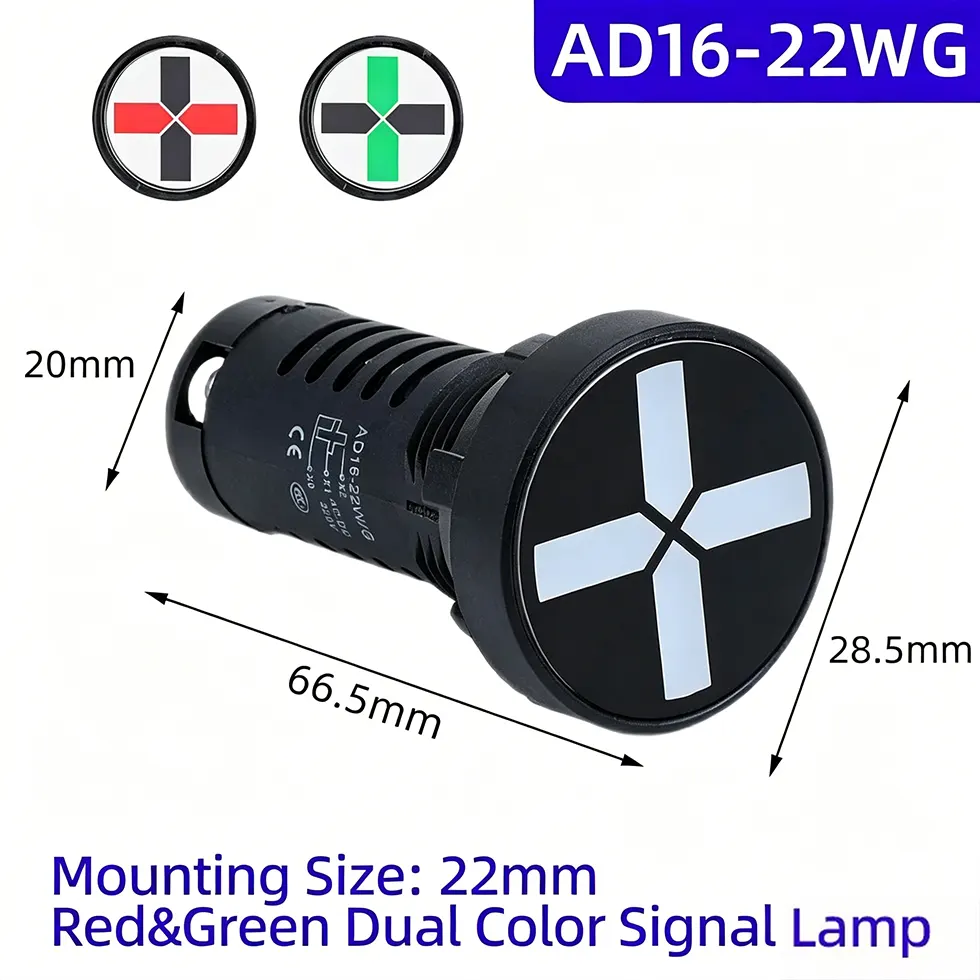

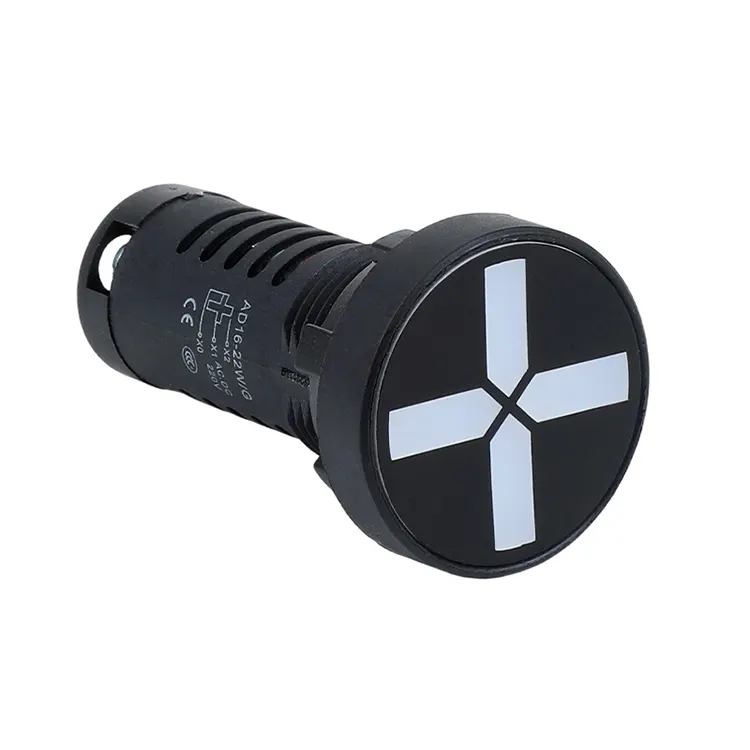

The AD16-22W is a compact round LED position indicator designed by YAMING specifically for industrial control panels, machinery, and automation systems. The product is compatible with the industry-standard 22mm panel opening and uses high-brightness pure white LED chips, providing soft, uniform, and highly visible light. It clearly displays equipment operating status, position feedback, circuit continuity, and operation prompts. From R&D to production, it adheres to industrial-grade quality standards, balancing durability, safety, and convenience to meet the long-term stable use requirements in harsh industrial environments.
Strictly matches the industry-standard 22mm panel opening, adapting to the standard mounting positions of various control cabinets and equipment panels. Supports snap-on quick installation, eliminating the need for additional custom openings, offering extremely high versatility and significantly reducing equipment modification and parts replacement costs.
The 22mm Mounting Hole Size Round Type Position Indicator Light AD16-22W's housing is made of impact-resistant polycarbonate material, possessing excellent wear resistance, scratch resistance, and aging resistance. It can withstand harsh working conditions such as industrial dust, vibration, and minor impacts, achieving an IP40 protection rating, effectively extending its service life and reducing the frequency of maintenance.
Supports common voltages such as AC/DC 6V/12V/24V/36V/48V/110V/220V, flexibly adapting to the power supply needs of different devices. One product meets the needs of multiple scenarios, eliminating the need for additional selection due to voltage differences, reducing procurement and inventory costs.
The 22mm Mounting Hole Size Round Type Position Indicator Light AD16-22W features a compact overall structure and a screw terminal design at the rear, making wiring simple and secure. No professional tools are required for installation and wiring, allowing even beginners to quickly get started. It is compatible with panels of thickness 1-6mm, offering flexible and stress-free installation.
A car parts manufacturing company in Zhejiang Province requires real-time monitoring of equipment operating status and workstation position signals on its stamping and assembly automated production lines. Previously, ordinary indicator lights were used, which suffered from uneven brightness, easy wear, and limited voltage compatibility, leading to frequent malfunctions and impacting production line efficiency. After replacing the YAMING AD16-22W, the 22mm standard hole quickly adapted to the existing control panel; the pure white LED light provided clear illumination, allowing for rapid status identification even from a distance; the 24V/220V dual-voltage design accommodated different workstations on the production line; the polycarbonate casing protected against workshop vibration and dust; it operated continuously for 18 months without failure; and the efficiency of troubleshooting production line issues improved by 40%, earning high praise from the company's equipment department.
1. Industrial control cabinets and distribution boxes: Indicating circuit continuity, power status, and fault alarms.
2. Machine tools, conveying equipment, and packaging machinery: Displaying equipment operation, standby, and shutdown status.
3. Automated equipment and production lines: Workstation position feedback, process operation prompts, and linkage status indications.
4. Distribution panels and electrical control systems: Circuit status monitoring, signal feedback, and operation prompts.

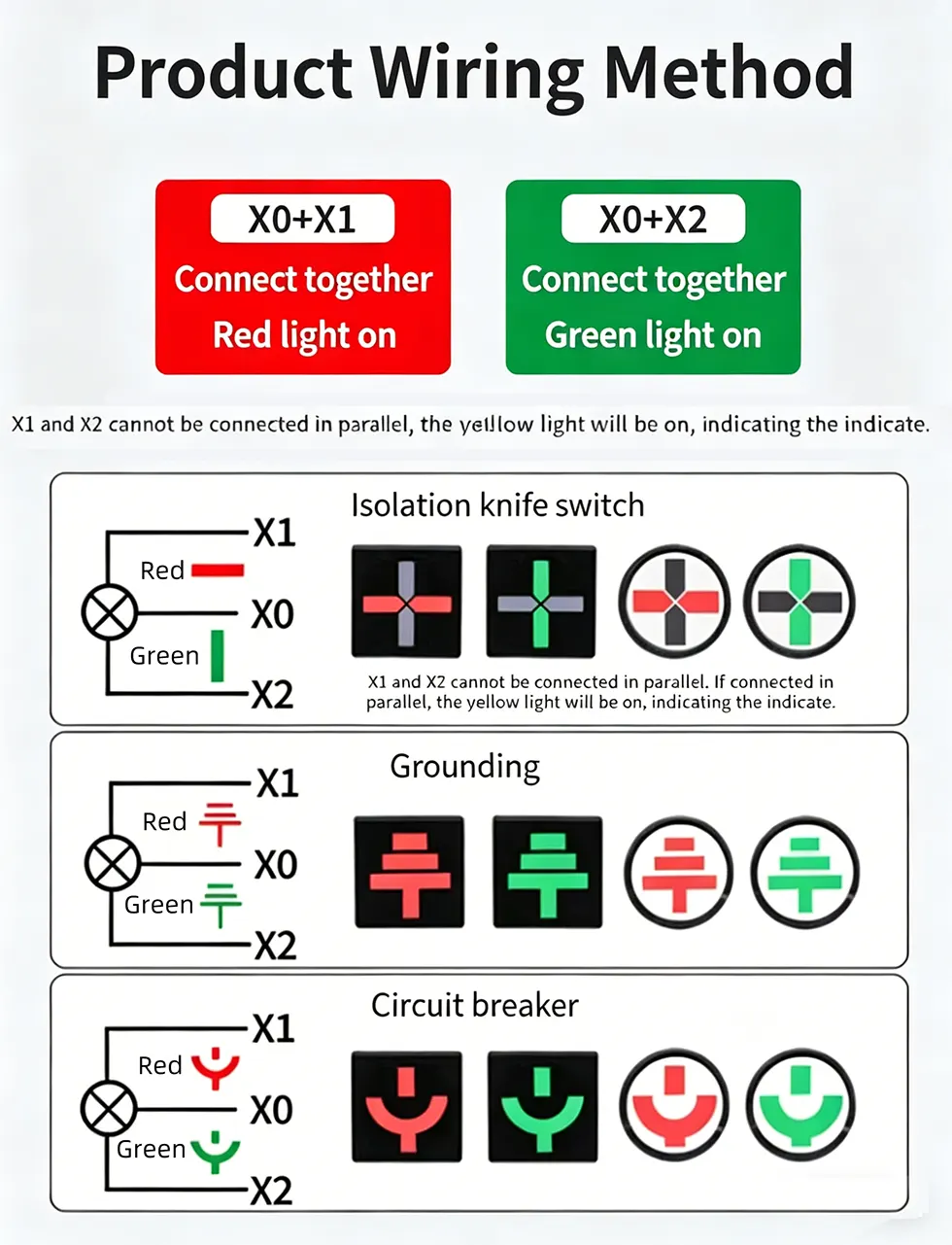

5. Various industrial machinery: Indicating isolating switch position, circuit breaker position, and grounding position.
Q1: What is the lifespan of the LED in the 22mm Mounting Hole Size Round Type Position Indicator Light AD16-22W? Will it dim with long-term use?
A1: The product uses high-brightness pure white LED chips. Under industrial-grade quality, the continuous working life is ≥30,000 hours. Under normal industrial use, it can stably maintain brightness for 3-5 years without significant brightness decay. The LED chips have low power consumption and low heat generation. Combined with high-quality driver circuits, the light is uniform and stable with long-term use, and it is not prone to flickering or dimming, eliminating the need for frequent replacements.
