Multiple Type KCD1-101 Rocker Switch

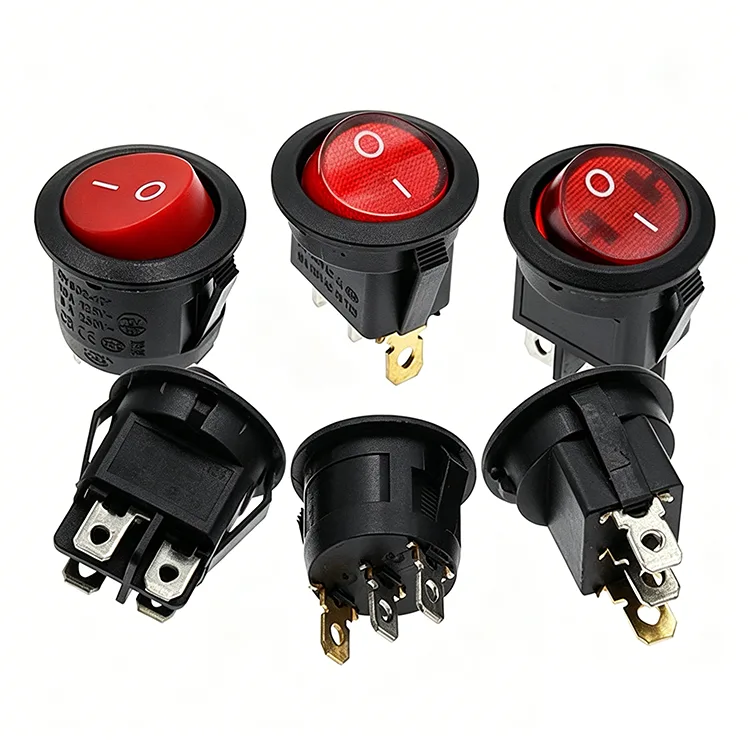

Our Multiple Type KCD1-101 Rocker Switch are classic miniature panel-mounted power control switches developed for universal electronic equipment control. This product line covers abundant specifications to match diverse circuit and appearance requirements, including 2-pin/3-pin, non-illuminated/illuminated, black/white housing, and transparent waterproof cap options.

With standard Φ20 round panel cutout design, snap-in installation structure and stable electrical performance, these rocker switches are widely adopted in small home appliances, power tools, electronic testers, portable chargers and other electrical devices.

Product Feature

✅ Rich Specification Combinations for One-Stop Selection

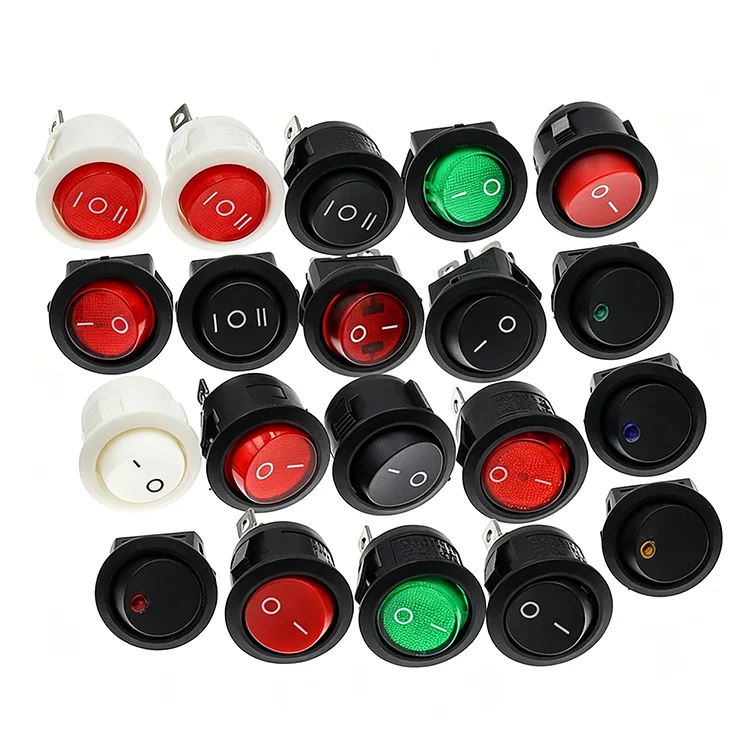

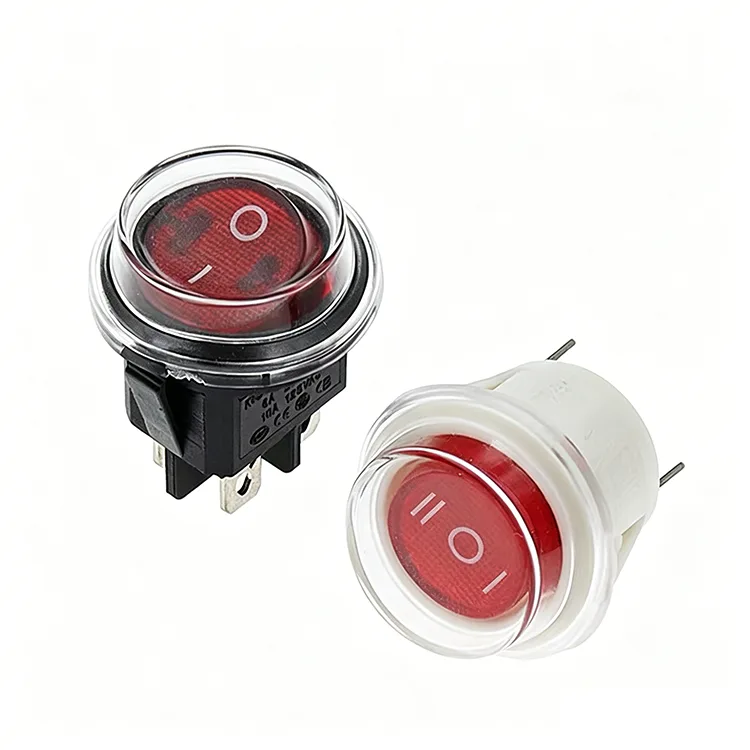

Multiple circuit structures: 2-pin ON-OFF, 3-pin ON-OFF-ON; Optional LED indicator lights (red / green); Shell colors available in matte black and off-white; Extra transparent dustproof/waterproof caps for harsh working environments. Mix-and-match styles support personalized equipment panel design.

✅ Stable Electrical Parameters & Full Certifications

Standard rating: 6A 250VAC / 10A 125VAC. Strict factory inspection guarantees stable power bearing capacity, no heat or short circuit under normal load.

✅ Easy Snap-In Panel Mounting

Unified Φ20 round opening size, built-in elastic buckles. Simply push the switch into the reserved hole to complete installation without extra fixing accessories, greatly improving assembly efficiency for mass production.

Wide Application Scenarios

This multiple type KCD1-101 rocker switch serves as universal power control components for various consumer and industrial electronics:

Small household appliances: water dispensers, hair dryers, electric kettles, massagers, humidifiers

Power tools: small hand drills, polishing machines, inflators

Electronic instruments: testing meters, power adapters, portable power supplies

Other portable electrical devices: car refrigerators, small charging equipment, beauty devices

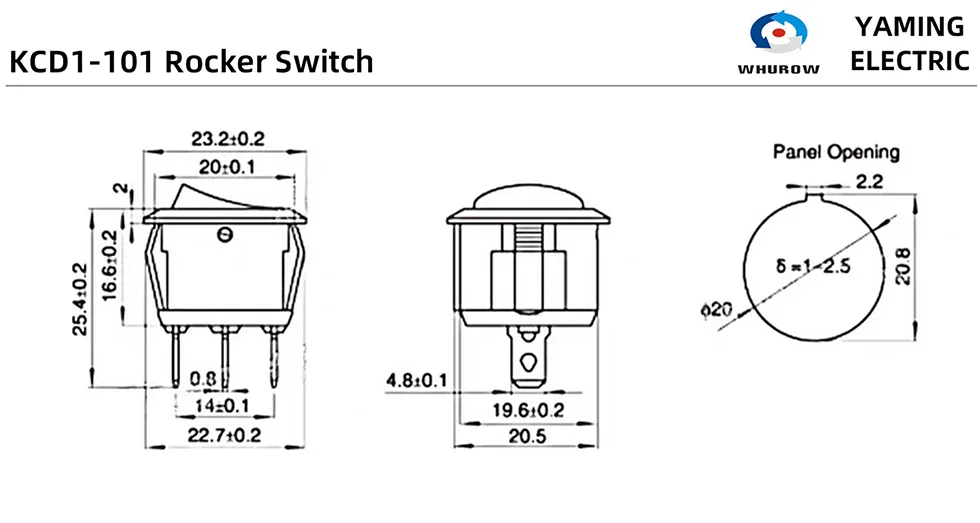

Product Size
