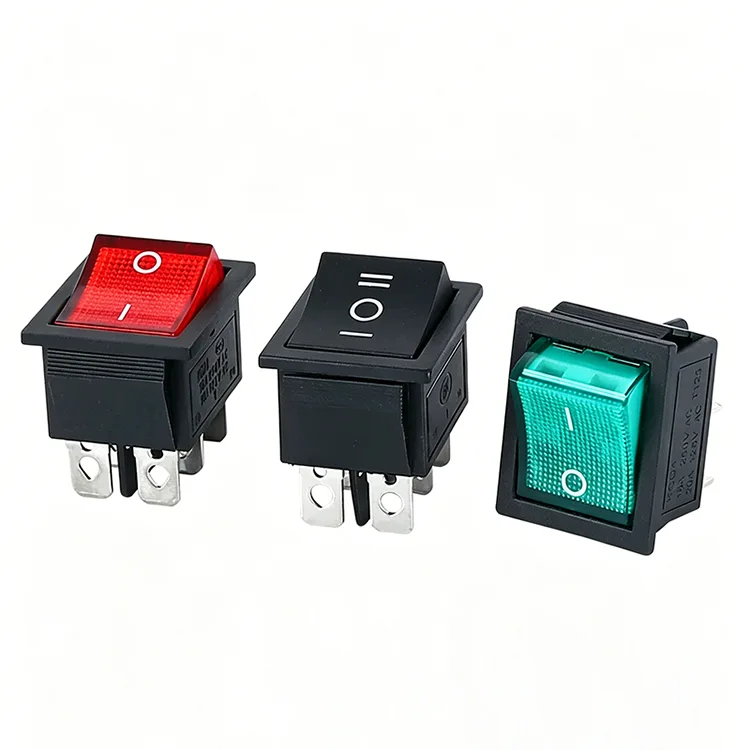

Multiple Color KCD4 Rocker Switch

The Multiple Color KCD4 Rocker Switch are panel-mount power control switch.

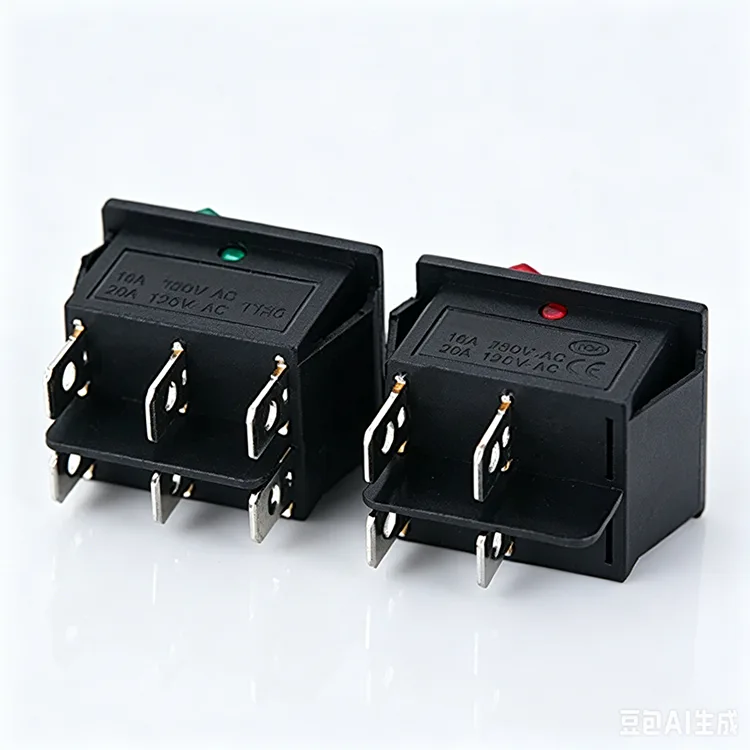

Available with 4-pin / 6-pin terminals, 2-position (ON-OFF) / 3-position (ON-OFF-ON) circuit modes, and 3 mainstream styles: matte black non-illuminated, red LED indicator, green LED indicator. With a unified standard 25.5*31mm panel cutout, the snap-in design enables rapid assembly. Boasting a high electrical rating of 16A 250VAC / 20A 125VAC, the switches are widely matched to power tools, large home appliances, industrial machinery and portable electrical devices.

Product Feature

✅ Diversified Specifications for Full Matching Needs

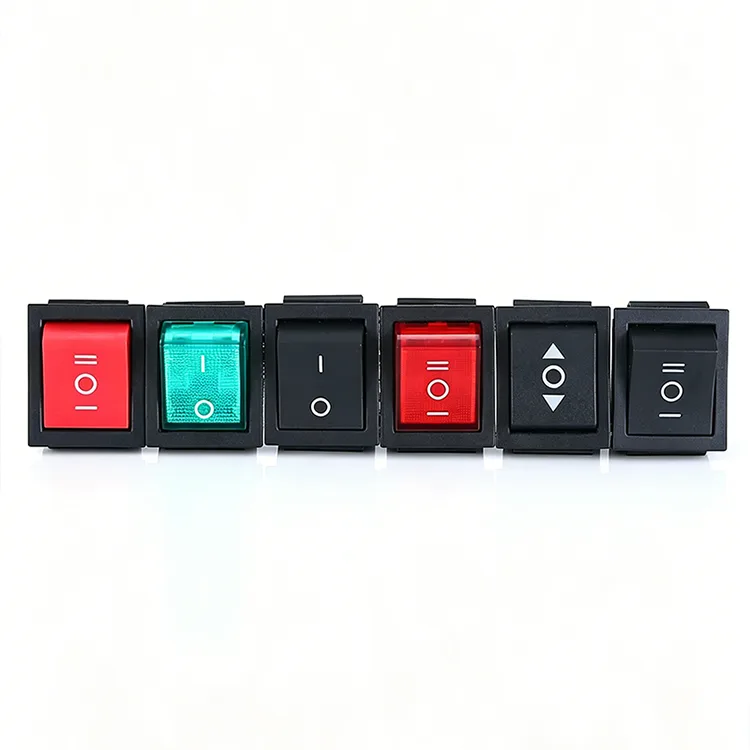

Rich combinations to choose from: 4/6 pins, 2/3 gears, non-light/red light/green light rocker caps. Mixed color & mixed model bulk packing is supported to simplify your inventory management and equipment panel design.

✅ Clear LED Indicator for Visual Status Prompt

Illuminated versions with red/green built-in lights display working status at a glance, avoiding misoperation of power equipment; black non-light style is suitable for equipment that does not need status indication.

✅ Easy Snap-In Panel Installation

Uniform 25.5×31mm opening size, built-in elastic buckles. Just press the switch into the reserved panel hole for firm fixation, no extra fasteners required, greatly boosting mass production assembly efficiency.

Wide Application Scenarios

Our multi-color KCD4 rocker switches are universal power control components for consumer and industrial electrical products:

Power Tools: Hand drill, polishing machine, air pump, car inflator, welding machine

Large Household Appliances: Electric kettle, water dispenser, sauna massager, heater, humidifier

Portable Electrical Equipment: Car refrigerator, beauty instrument, portable power station

Industrial & Test Devices: Small control boxes, electronic testers, charging piles

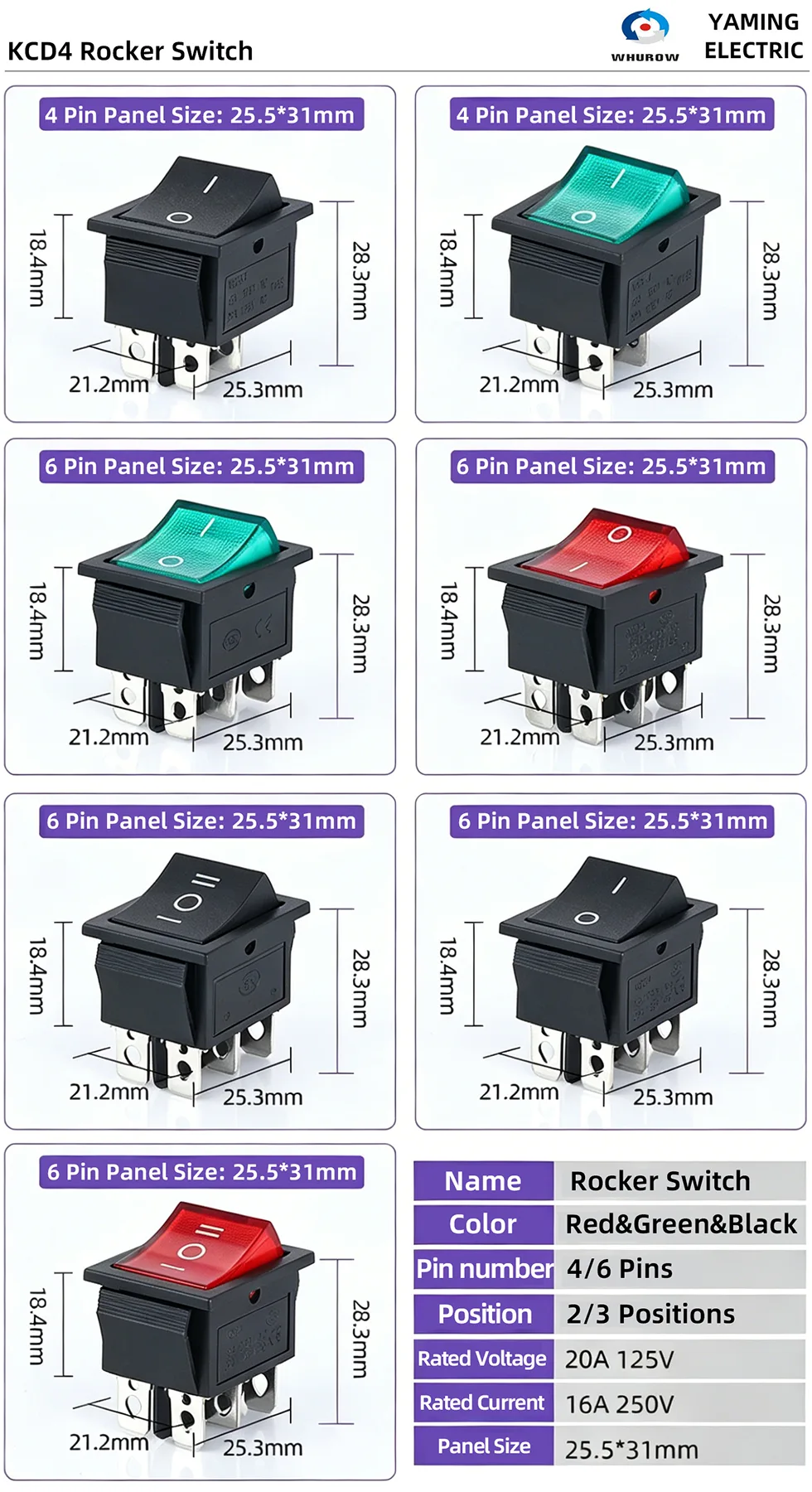

Product Size
