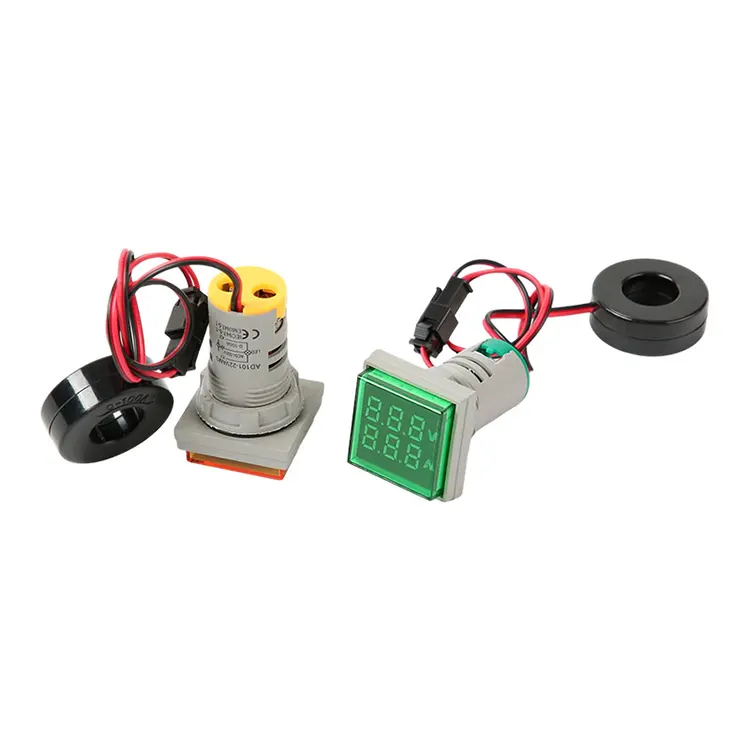

The YAMING Digital AC Voltmeter and Ammeter Square Double Display Indicator Light was developed to address the common pain points associated with traditional single-function signal lights: limited functionality, the need to combine multiple separate meters, excessive panel space consumption, and high costs. By integrating voltage detection, current monitoring, and equipment status indication into a single device, it offers an efficient and integrated solution for power monitoring within industrial control systems.
1.Standard Specifications

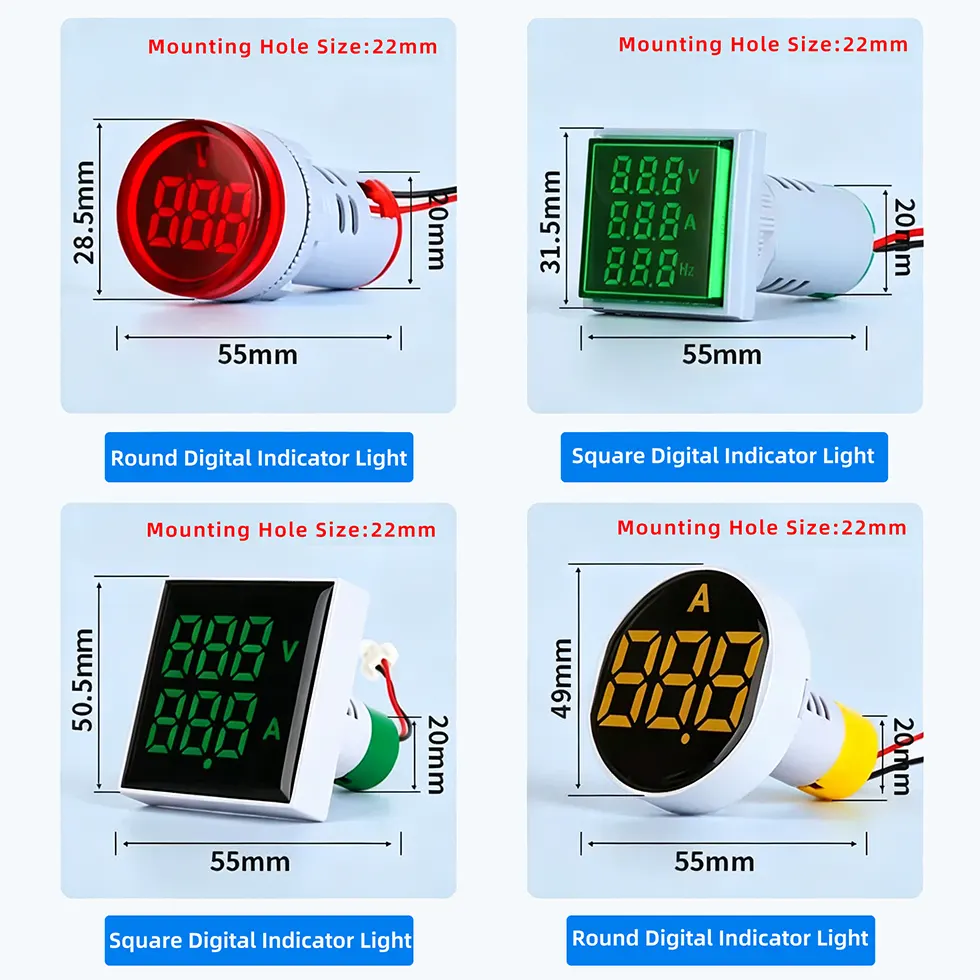

Features a standard 22mm panel cutout, making it compatible with most industrial control panels; it can directly replace traditional indicator lights, ensuring easy installation and maintenance.
2.Integrated Dual Display
Equipped with independent, high-brightness square LED digital screens that simultaneously display voltage and current data, ensuring clear readability even in environments with strong lighting, dim lighting, or dust.
3.Industrial-Grade Construction
Housed in a flame-retardant ABS casing, the unit is resistant to vibration, abrasion, and electromagnetic interference, making it suitable for harsh workshop environments and ensuring stable, reliable long-term operation.
1.Dual-Screen 2-in-1 Design: Integrates three essential functions into a single unit, saving both panel space and procurement costs.
2. Standardized Installation: Utilizes a universal 22mm cutout, requiring no modification to the control cabinet for direct replacement and installation.
3. Real-time Monitoring: Simultaneously detects voltage and current anomalies, providing early warnings for potential equipment faults to ensure production stability.
4. High-Definition Display: Features intuitive readings via dual LED screens, making it suitable for use in various industrial environments.
5. Industrial-Grade Durability: Constructed from flame-retardant ABS material, offering resistance to vibration and interference for an extended service life.
The Digital AC Voltmeter and Ammeter Square Double Display Indicator Light is widely applicable across various industrial settings, including industrial control panels, distribution cabinets, switchgear, factory automation machinery, machine tools, motor-driven equipment, and diverse industrial electrical systems.
1.Industrial Automation Production Lines
Provides real-time monitoring of equipment power parameters to ensure the stability of automated processes and minimize the risk of downtime.
2.Power Distribution Control Cabinets
Integrates voltage and current monitoring, replacing traditional multi-meter assemblies to simplify cabinet layouts and enhance power distribution safety.
3.Machine Tools and Motor Equipment
Provides real-time monitoring of motor power supply status, enabling the timely detection of anomalies—such as overloads or undervoltage—to protect motor equipment.
4.Complex Workshop Environments
Features a vibration-resistant, dustproof, and anti-interference design, making it suitable for harsh operating conditions involving high temperatures, heavy dust, and strong electromagnetic interference.
Case: An Automotive Parts Automation Production Line in Zhejiang Province
The original control cabinets on this production line utilized a traditional combination of single-function indicator lights and separate voltage/current meters. This resulted in a cluttered panel layout, complex wiring, and high maintenance costs. Furthermore, the system lacked the ability to simultaneously monitor voltage and current in real-time, leading to frequent equipment downtime caused by power fluctuations, which negatively impacted production efficiency.
In 2024, the facility fully upgraded to the YAMING Digital AC Voltmeter and Ammeter Square Double Display Indicator Light. Following this retrofit:
Panel space usage was reduced by 40%, resulting in a clean and organized layout, while wiring workload was cut by 50%;
Real-time, simultaneous monitoring of voltage and current enabled rapid detection of power anomalies, reducing equipment downtime incidents by 80%;
The industrial-grade, vibration-resistant design proved perfectly suited for the high-frequency vibration environment of the production line; the units have operated fault-free since installation, resulting in a 60% reduction in maintenance costs.
1. Synchronized Data Visualization: Replaces multi-meter assemblies, making data instantly visible at a glance.
2. Efficient Installation: Features a "plug-and-play" design with simple wiring, thereby reducing installation costs.
3. Stable Quality: Built with an industrial-grade structure designed to withstand harsh environments, ensuring a long service life.
4. High Cost-Effectiveness: A single product delivers three core functions at a lower overall cost than traditional multi-component assemblies.
Q1: What is the operating voltage range, and what scenarios is it suitable for?
A1: AC 85–265V; it is compatible with various industrial electrical systems and is particularly well-suited for control cabinets with limited space.
Q2: Are specialized tools required to install the Digital AC Voltmeter and Ammeter Square Double Display Indicator Light? Can it directly replace traditional indicator lights?
A2: No specialized tools are required. It utilizes a standard 22mm mounting cutout, allowing it to directly replace traditional 22mm indicator lights without the need for any modifications to the control cabinet.
Q3: Can it operate stably in harsh environments, and what is its expected service life?
A3: Capable of stable operation within a temperature range of -20°C to +60°C, it is well-suited for harsh operating conditions and offers a service life of over five years under normal use.
