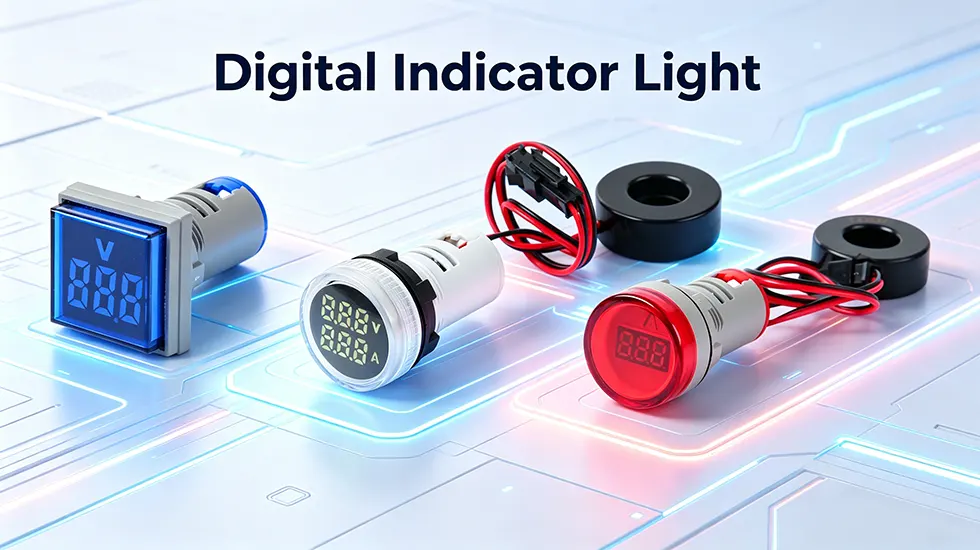

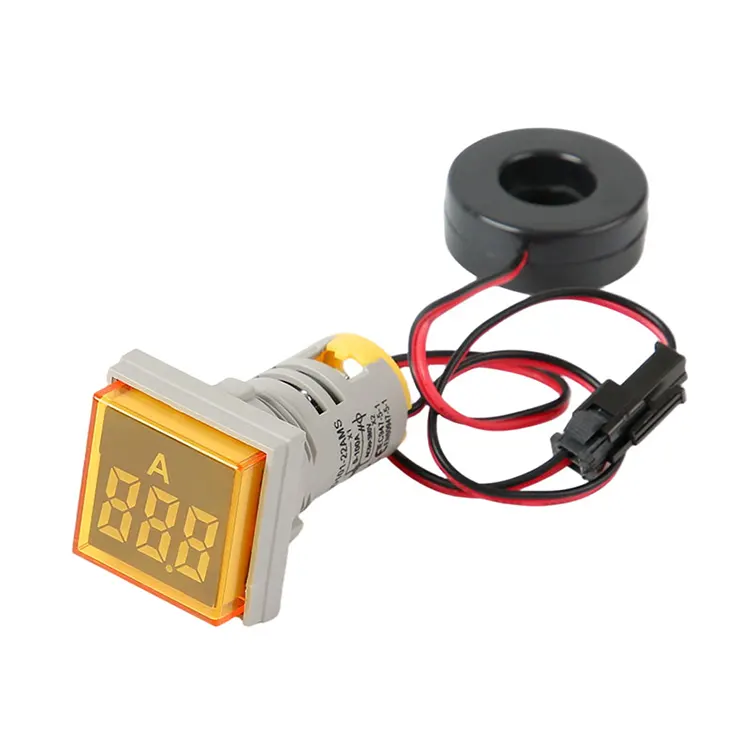

The Digital AC Ammeter Circular Single Display Indicator Light addresses the common pain points associated with traditional industrial control panels—specifically the separation of indicator lights and ammeters, excessive space consumption, and insufficient monitoring precision—by seamlessly integrating current measurement and status indication into a single, compact, circular display unit. Designed to fit standard 22mm panel cutouts, it allows for the direct replacement of older-style indicator lights without the need for additional panel modifications. Suitable for use in a wide range of harsh industrial environments, it is widely utilized in factories, commercial power distribution systems, and similar applications.
1. 2-in-1 Functionality: Serves as both a digital ammeter and an indicator light, saving valuable panel space and simplifying system design.

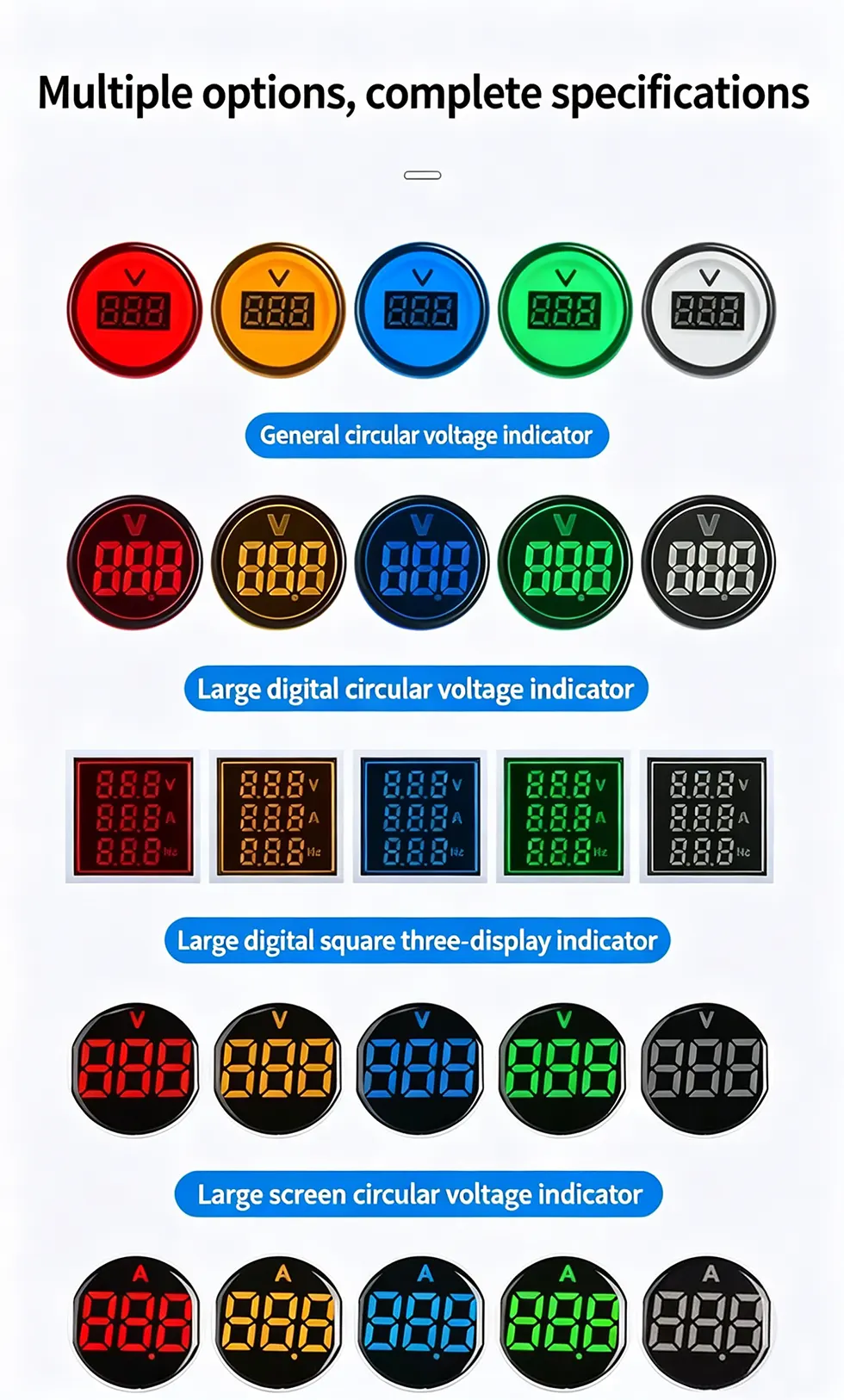

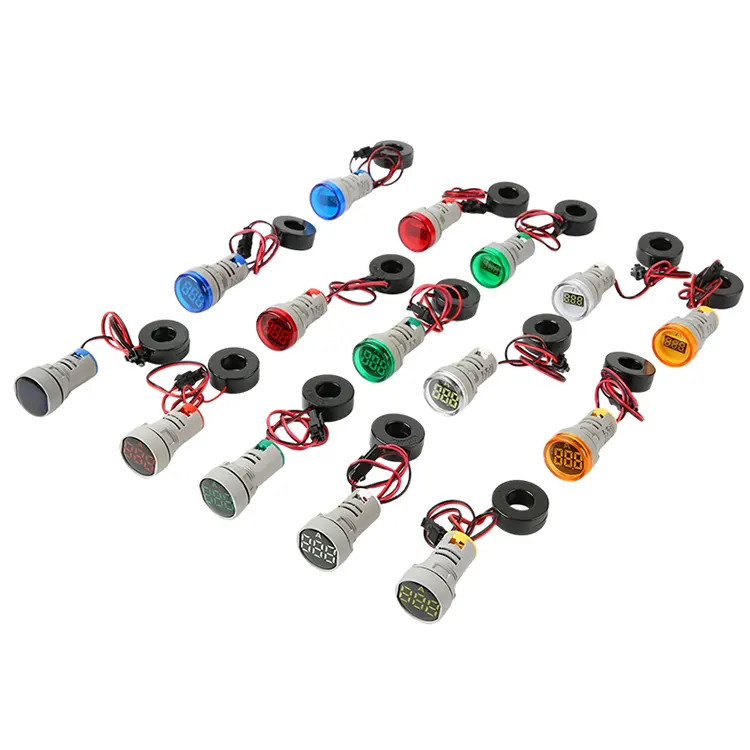

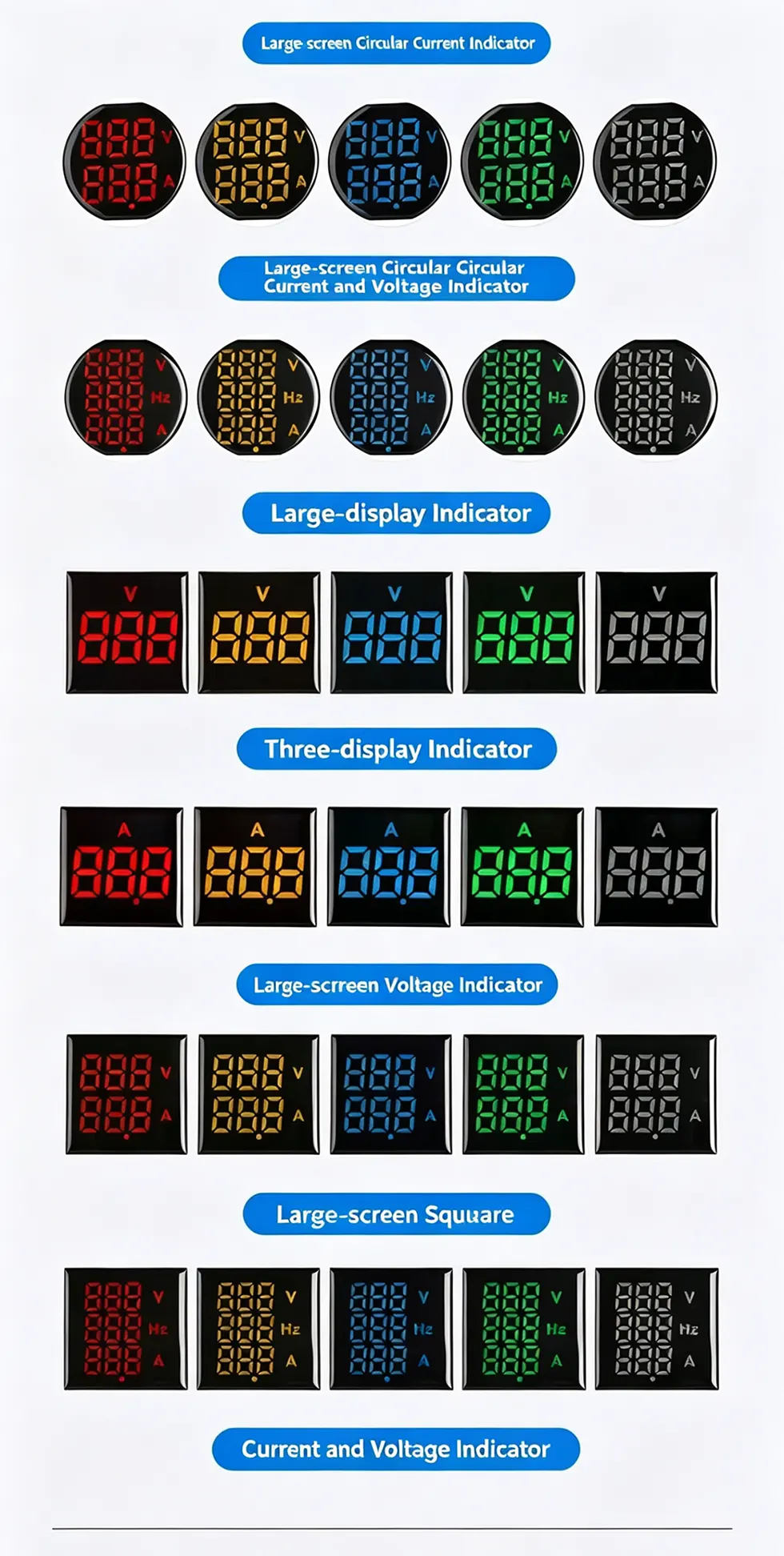

2. High-Visibility LED Display: Features high brightness and strong contrast, with five color options available (Red, Yellow, Blue, Green, and White) to ensure clear readability in any environment.

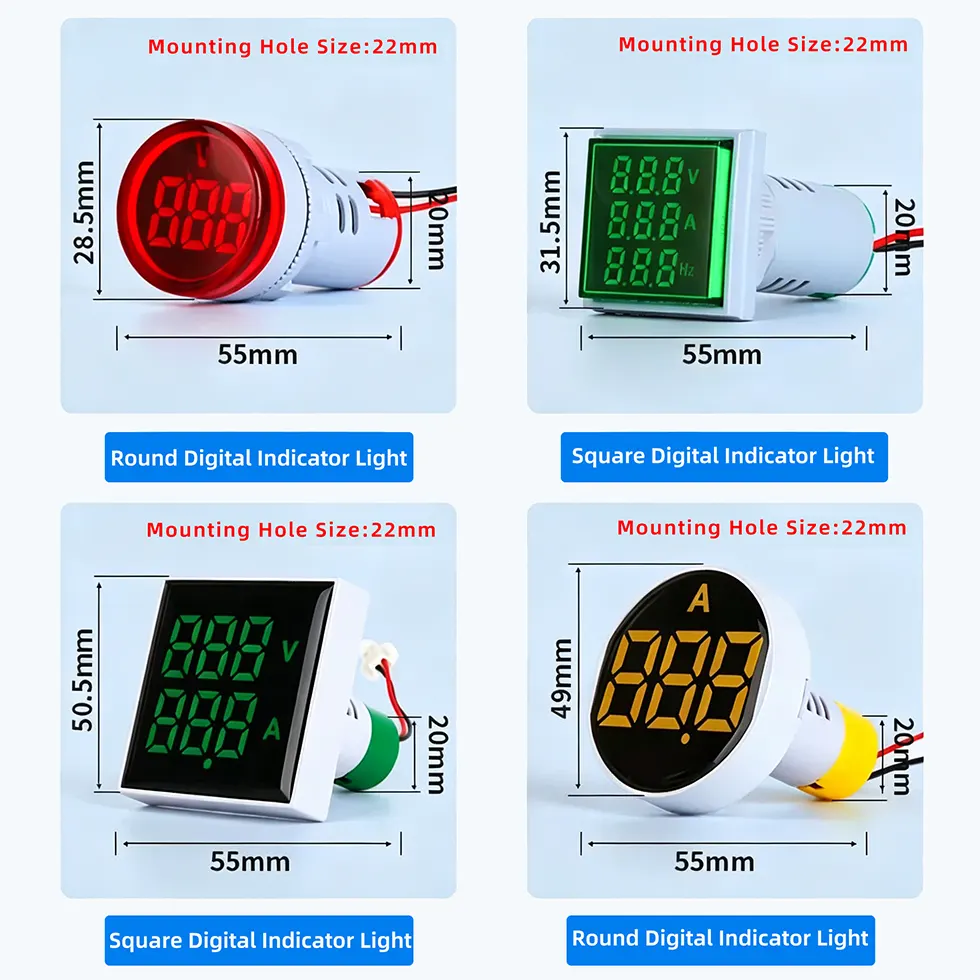

3. Standard 22mm Cutout: Compatible with most industrial control panels; offers convenient installation and replacement, thereby reducing construction costs.
4. Wide & Customizable Current Range: Provides standard AC current measurement from 0–100A, with the option to customize the measurement range according to specific requirements, ensuring precise and stable readings.
5. Industrial-Grade Durability: Constructed with a heavy-duty, wear-resistant industrial plastic housing; vibration-resistant and capable of stable 24-hour continuous operation with a long service life.
6. Compact & Space-Saving: Features a small physical footprint, making it ideal for installation on control panels where space is limited.
1. Panel Preparation: Drill a standard 22mm hole in the control panel.
2. Device Insertion: Insert the indicator light through the cutout from the front side of the panel.
3. Secure Mounting: Tighten the fixing nut from the back side of the panel to secure the device in place.
4. Testing and Debugging: Connect the power supply and verify that the display screen shows accurate current readings.
An automotive parts factory in Zhejiang Province utilized motor control panels equipped with outdated indicator lights and analog ammeters. These systems suffered from issues such as excessive space consumption, significant reading inaccuracies, and susceptibility to vibration-induced damage. To address these challenges, the factory selected the YAMING Digital AC Ammeter Circular Single Display Indicator Light to upgrade over 50 of its motor control centers.
Post-Upgrade Results: Panel components were reduced by 40%, resulting in significant space savings; digital reading accuracy reached 99.5%, effectively eliminating analog measurement errors; the vibration-resistant design lowered the equipment failure rate by 60%, thereby eliminating the need for frequent maintenance; and the LED display enabled operators to quickly monitor current status, significantly boosting operational efficiency. The equipment has now operated stably for 12 months, achieving a "zero-downtime" upgrade with outstanding cost-effectiveness.
The Digital AC Ammeter Circular Single Display Indicator Light is suitable for power monitoring applications in industrial control panels, power distribution cabinets, motor control centers, machine tools, distribution boxes, switchgear, factories, workshops, and commercial buildings.
1. Q1: Can the ammeter's measurement range be customized to meet specific industrial requirements?
A1: Yes. The standard range is 0–100A AC; however, custom ranges—such as 0–50A, 0–200A, and others—can be provided. Please contact our technical team for further details.
2. Q2: Can this indicator light be used in industrial environments subject to strong vibrations, such as workshops?
A2: Yes. The product features an industrial-grade, vibration-resistant design capable of withstanding continuous workshop vibrations, thereby ensuring stable readings and reliable performance.
3. Q3: What is the service life of the LED display, and can it be replaced?
A3: Under normal operating conditions, the LED display has a service life exceeding 50,000 hours. Should the display become damaged, it can be professionally replaced by the YAMING after-sales service team, thereby minimizing equipment downtime.
