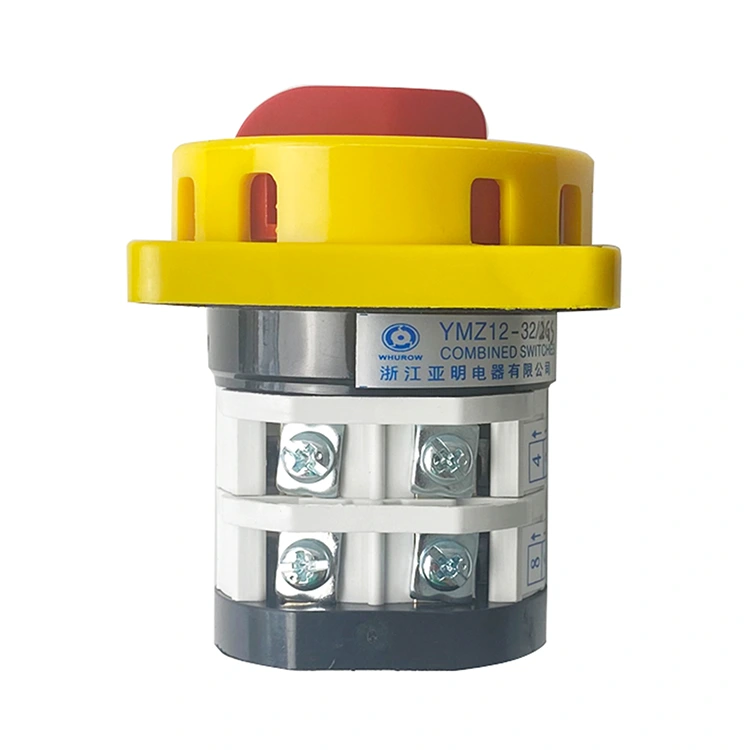

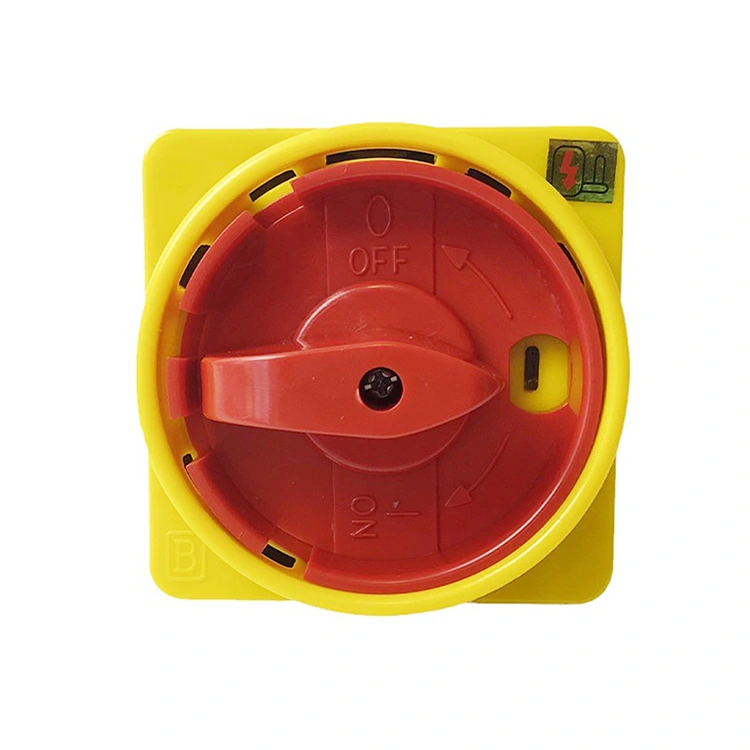

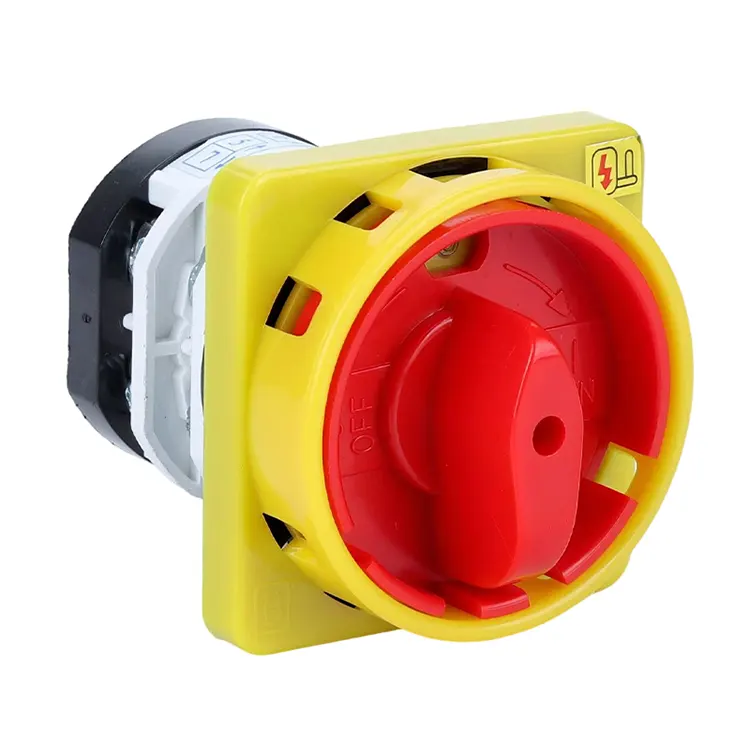

32A Padlock OFF-ON Two Positions Combination Cam Switch

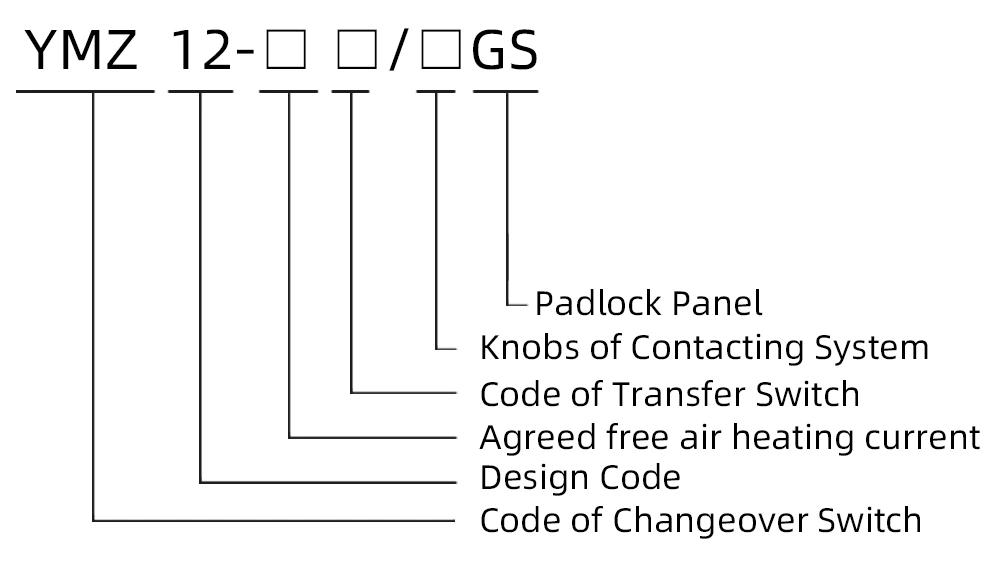

This 32A Padlock OFF-ON Two Positions Combination Cam Switch (internal model: YMZ12‑32GS) is designed for 50 Hz AC electrical systems, with a rated voltage of up to 690V AC and 240V DC, and a rated current of 32A.

It is ideal for manual, low-frequency circuit making and breaking to realize control and switching functions. The 32A Padlock OFF-ON Two Positions Combination Cam Switch can also directly control small-capacity AC motors and is widely used in master control and circuit measurement scenarios, serving as an ideal replacement for conventional changeover switches.

Thanks to its high versatility, this switch is extensively applied in circuit control, testing equipment, motor control, main operation consoles, welding machinery and various other industrial equipment.

Product Feature

·  Suitable for 50 Hz AC systems, with rated voltage up to 690V AC / 240V DC and rated current up to 32A

·  Designed for manual and infrequent circuit switching and control conversion

·  Supports direct control of small-capacity AC motors

·  Ideal for master control and circuit measurement applications

·  Perfect replacement for conventional changeover switches

·  Widely used in circuit control, testing equipment, motor control, welding machinery and other industrial sectors

Product Application

·  Enables manual and infrequent circuit making and breaking for control and switching operations

·  Supports direct control of small-capacity AC motors

·  Ideal for master control and circuit measurement applications

·  Perfect replacement for conventional changeover switches

·  Widely used in circuit control, testing equipment, motor control, welding machinery and other industrial equipment

Product Size
