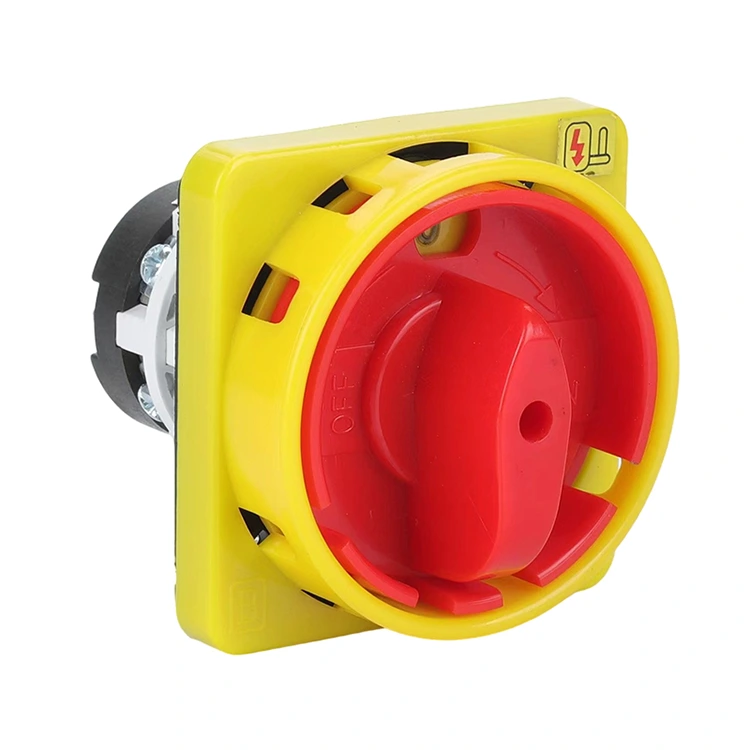

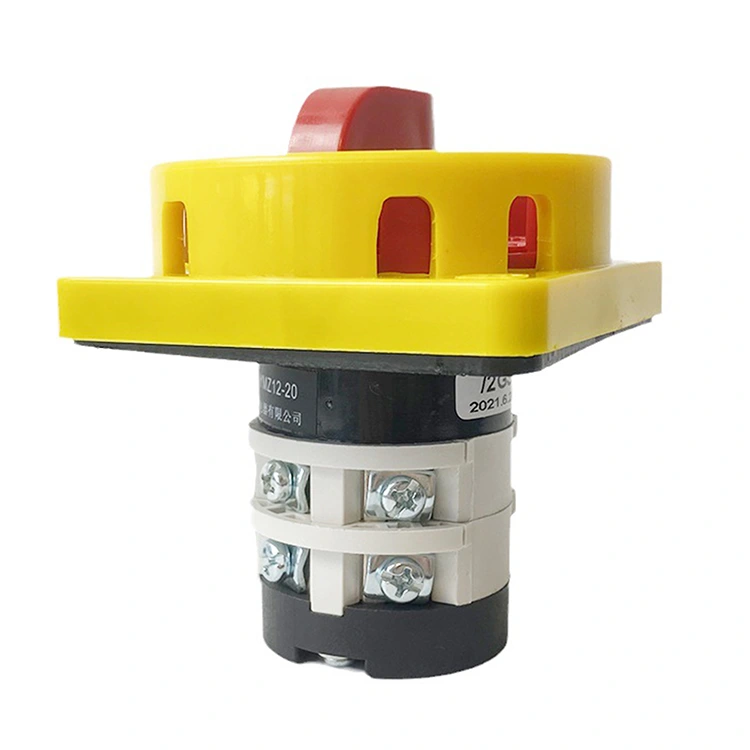

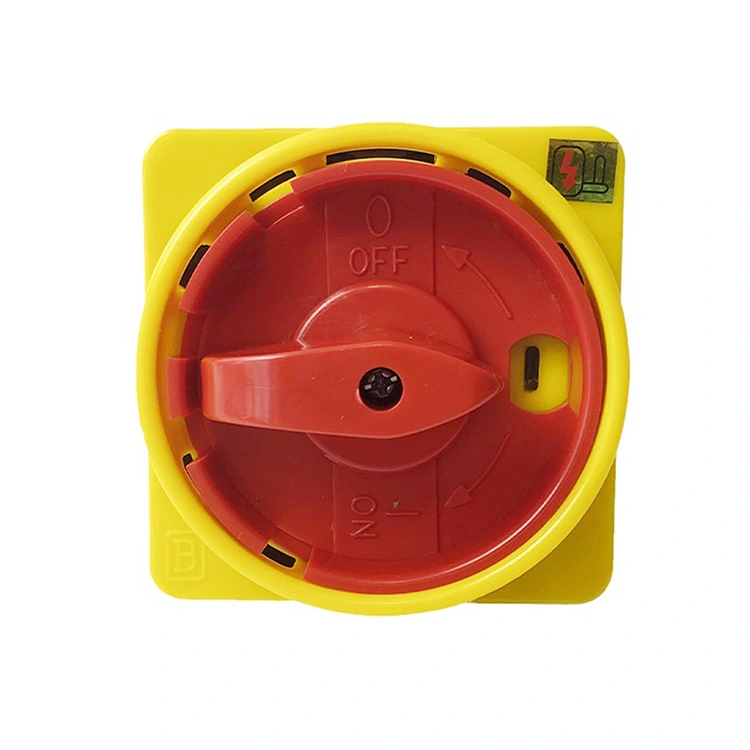

20A Padlock OFF-ON Two Positions Combination Rotary Cam Switch

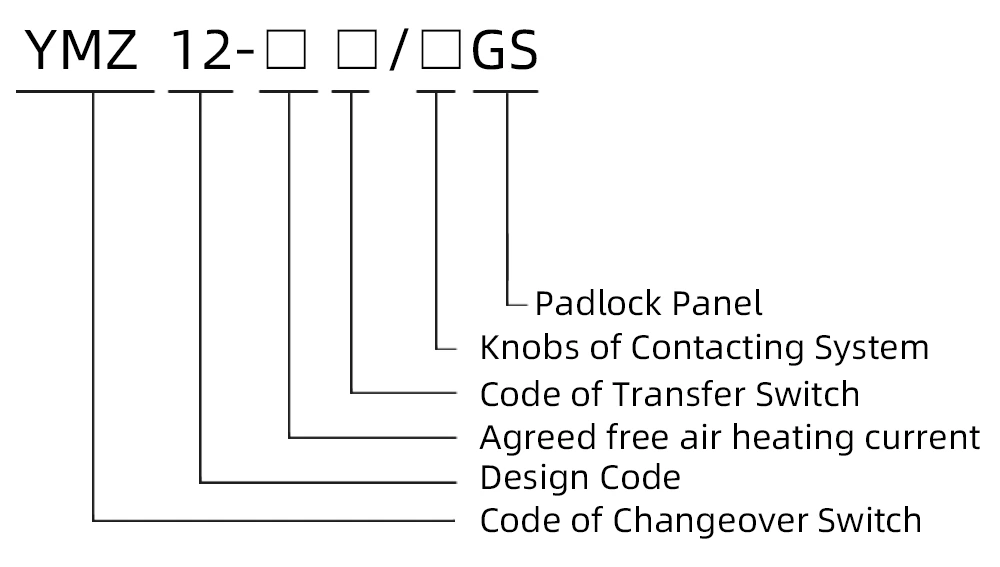

This 20A Padlock OFF-ON Two Positions Combination Rotary Cam Switch (internal model: YMZ12-20GS) is designed for 50 Hz AC electrical systems, with a rated voltage of up to 690V AC and 240V DC, and a rated current of 20A.

The 20A Padlock OFF-ON Two Positions Combination Rotary Cam Switch is ideal for manual, low‑frequency circuit making and breaking to achieve control and switching functions. It can also directly control small‑capacity AC motors, and is widely used in master control and circuit measurement applications, serving as a complete replacement for conventional changeover switches.

Thanks to its high versatility, this switch is extensively applied in circuit control, testing equipment, motor control, main operation consoles, welding machinery, and various other types of industrial equipment.

Product Feature

·  Suitable for 50 Hz AC circuits, with rated voltage up to 690V AC / 240V DC and rated current up to 20A

·  Designed for manual, infrequent circuit switching and control conversion

·  Enables direct control of small-capacity AC motors

·  Ideal for master control and circuit measurement applications

·  Perfect replacement for conventional changeover switches

·  Widely applied in circuit control, testing equipment, motor control, welding machinery and other industrial fields

Product Application

·  Enables manual and infrequent circuit making and breaking for control and switching operations

·  Allows direct control of small-capacity AC motors

·  Suitable for master control and circuit measurement applications

·  Perfect replacement for conventional changeover switches

·  Widely applied in circuit control, testing equipment, motor control, welding machinery and other industrial equipment

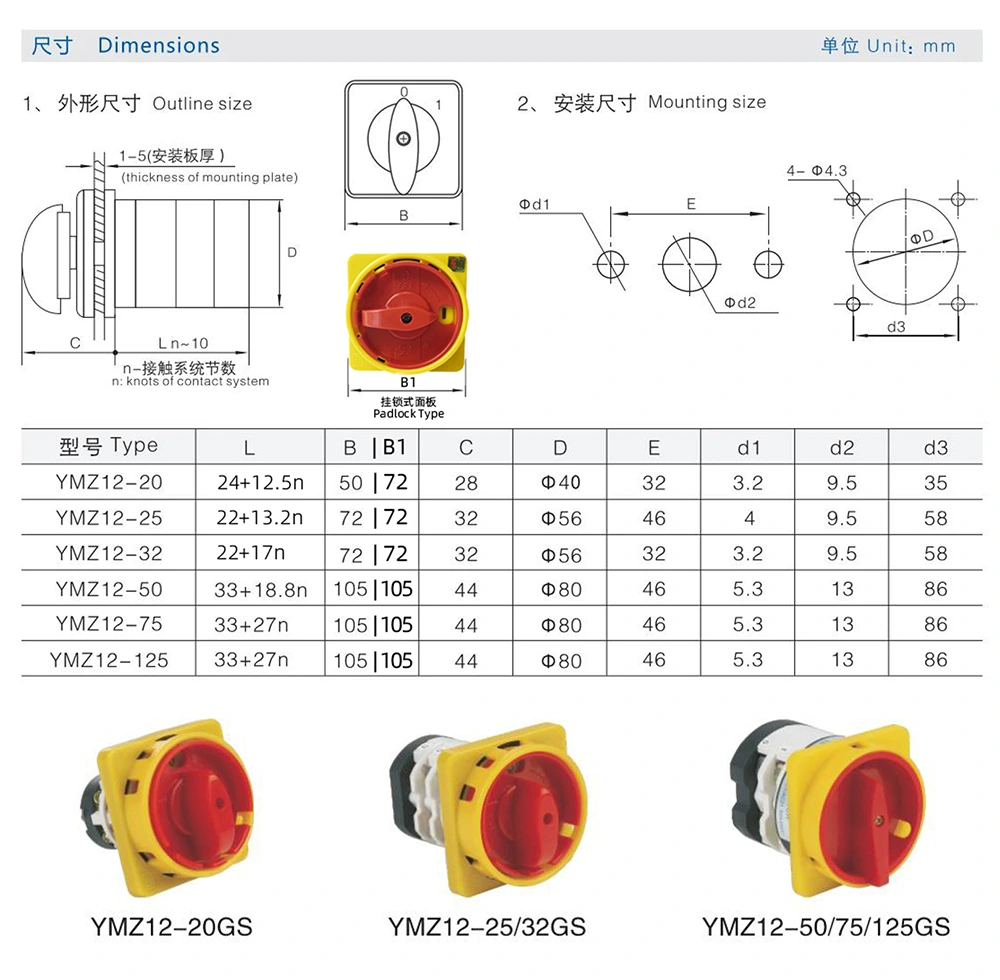

Product Size
