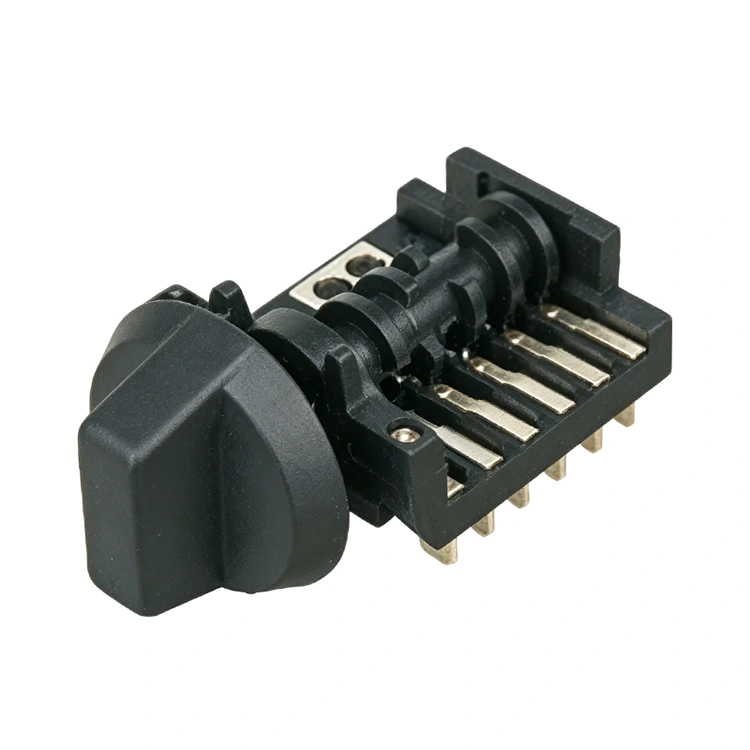

The YMT Welder Welding Machine Switch series is suitable for electrical circuits with AC 50Hz, rated operating voltage ≤440V, DC voltage ≤240V and rated thermal current up to 10A. It is used to control and adjust electrical frequency conversion, and can also realize circuit switching for electrical equipment.

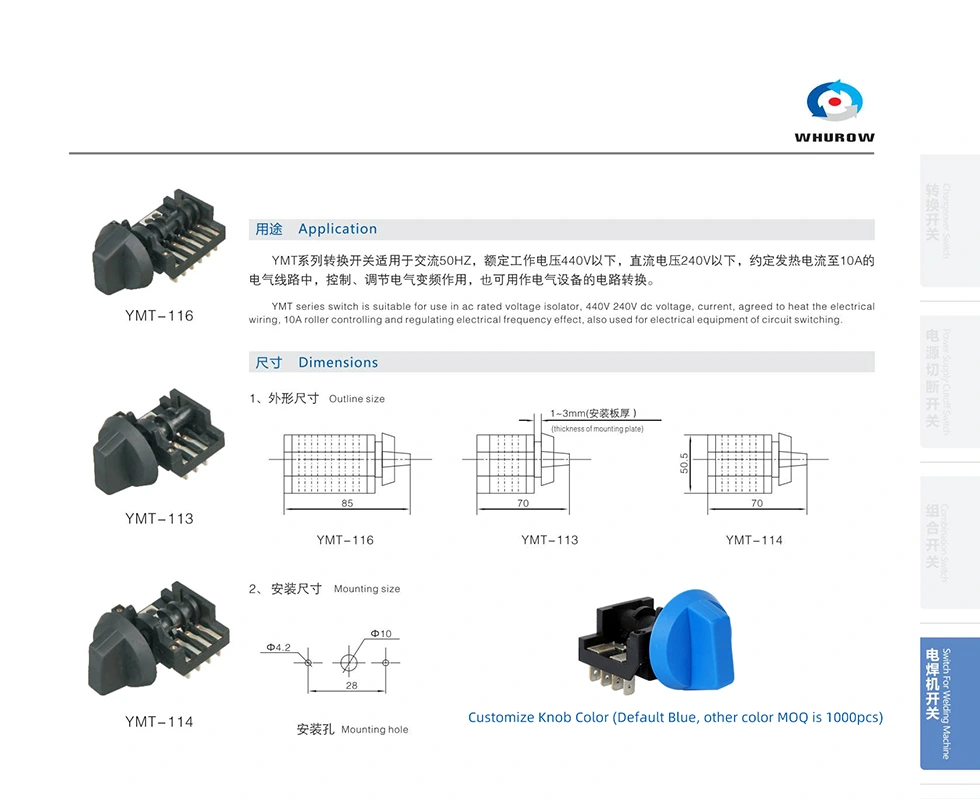

YMT-116: 85
YMT-113: 70, applicable mounting plate thickness: 1~3mm
YMT-114: 70, height 50.5
Mounting hole: Φ4.2, Φ10, center distance 28
Customize Knob Color (Default Blue, other color MOQ is 1000pcs)
· Wide electrical specification: Supports max 440V AC, 240V DC and 10A rated thermal current, fits most welding machine control circuits.
· Multiple model options: 3 variants (YMT-116, YMT-113, YMT-114) to meet different size and layout requirements.
· Easy assembly: Designed for 1~3mm mounting plates with standard mounting holes, simple to install on equipment.

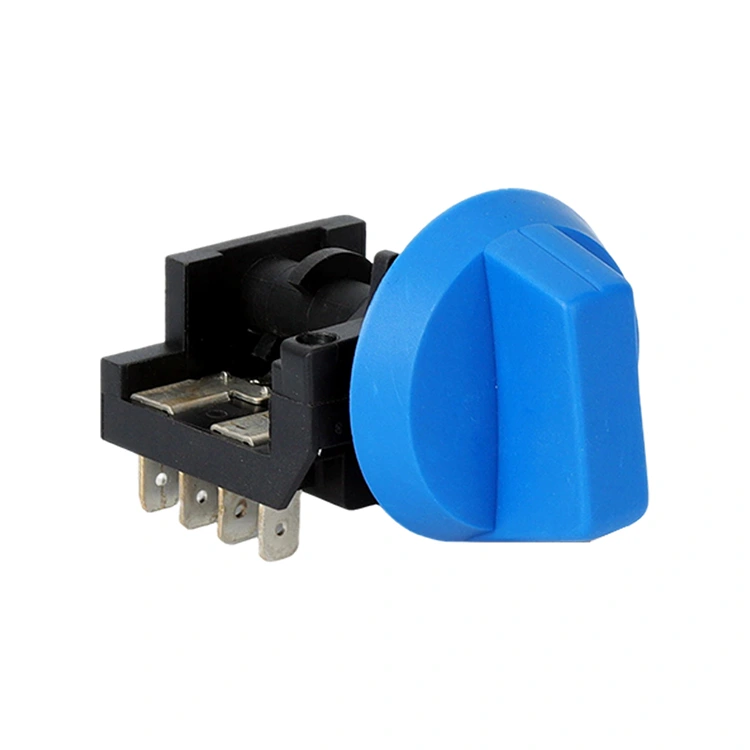

· Customizable knob: Default blue knob; other colors available with MOQ of 1000pcs.
· Compact structure: Small footprint, saves internal space of welding machines and industrial devices.
· Raw material inspection: Check plastic housing and metal contact materials before production to ensure the reliability of YMT Welder Welding Machine Switch components.
· Semi-finished test: Verify internal assembly and contact structure.
· Electrical performance test: Test voltage resistance, current load and insulation property.
· Switching operation test: Check smooth rotation and stable contact.
· Dimension & appearance inspection: Measure outline size and check surface finish.
A: Three options: YMT-116, YMT-113, YMT-114.
A: Max 440V AC, 240V DC, rated thermal current 10A, AC 50Hz.
A: Suitable for 1~3mm mounting plates.
A: Yes. Blue is default color. Other colors require MOQ of 1000pcs.
A: Yes, samples of YMT Welder Welding Machine Switch are available for quality testing and evaluation before bulk orders.
A: Standard export carton packing.
