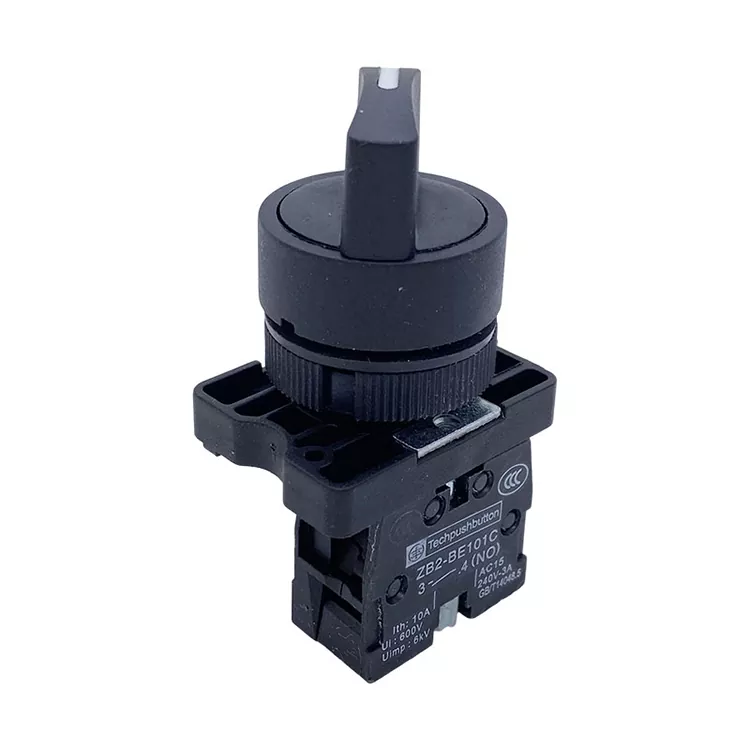

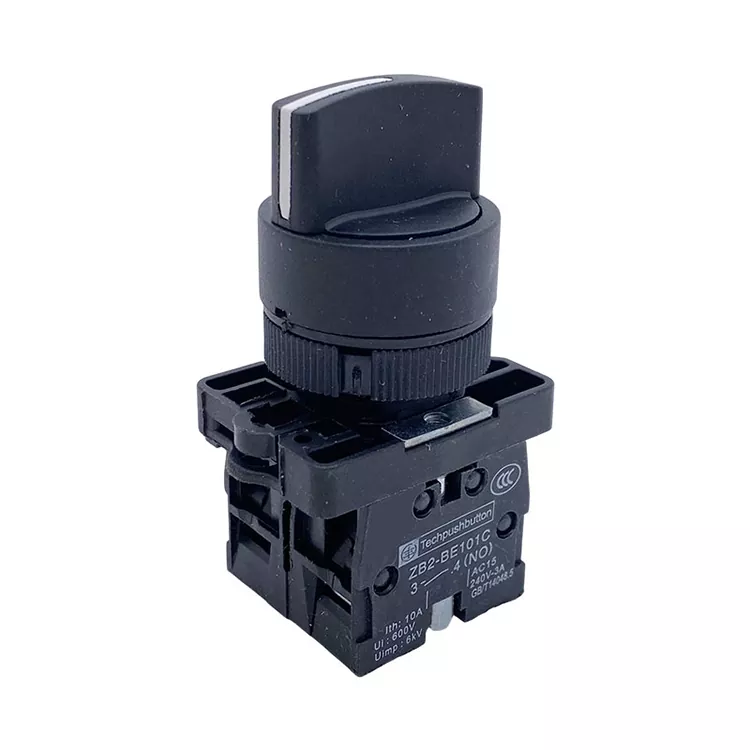

The XB2-ED Reset Self-locking Two Three Position Knob Rotary Switch is specifically crafted to meet the rigorous demands of industrial control scenarios. It features a user-friendly knob design, supporting both reset and self-locking modes, which can be flexibly switched between two or three positions to realize circuit conversion, equipment start-stop control, mode selection, and other key operations. Whether in harsh industrial environments or standard control panels, this switch maintains consistent performance, ensuring safe and efficient operation of electrical systems.
Welcome to explore the XB2-ED Reset Self-locking Two Three Position Knob Rotary Switch, a high-performance industrial control component designed for reliability, durability, and versatility. Engineered to meet international industrial standards, this series is widely applied in various automation and mechanical control scenarios, serving as a critical human-machine interface that ensures precise and stable operation of equipment.
Suitable for AC 50Hz/60Hz circuits with a maximum rated voltage of 380V AC and 220V DC, and a rated current of 10A. The rated insulation voltage reaches 660V, providing reliable insulation protection for electrical systems.

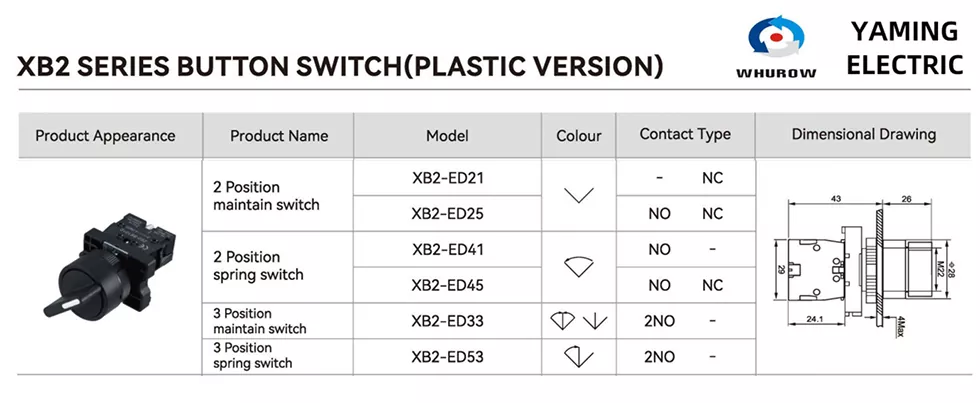

Available in two-position (90°rotation) and three-position options, supporting reset and self-locking functions. The self-locking mode ensures the switch stays in the selected position after operation, while the reset mode automatically returns to the original position, meeting diverse control requirements.
Designed for standard 22mm panel mounting for space-saving installation. Equipped with screw clamp connection terminals for firm wiring and easy installation and maintenance.
The XB2-ED Reset Self-locking Two Three Position Knob Rotary Switch is widely used in various industrial and commercial fields, thanks to its stable performance and versatile functionality. Typical applications include:
- Industrial Automation: Control panels for automated production lines, machine tools (lathes, milling machines, punch presses), packaging machinery, textile machinery, and mining machinery.
- Electrical Equipment: Control circuits for motors, pumps, fans, compressors, electromagnetic starters, and relays; mode selection and circuit conversion for electrical cabinets.
- Commercial & Civil Fields: Control systems for HVAC equipment, lighting systems, elevator control panels, and household appliances (high-power equipment).
- Special Environments: Control systems for ships, telecommunications equipment, and power distribution equipment, where reliability and environmental adaptability are required.
