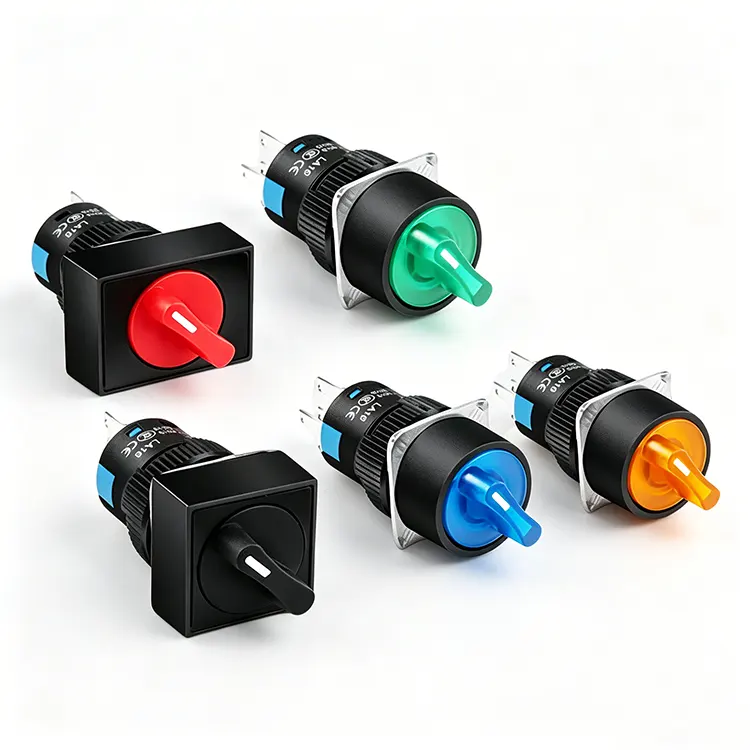

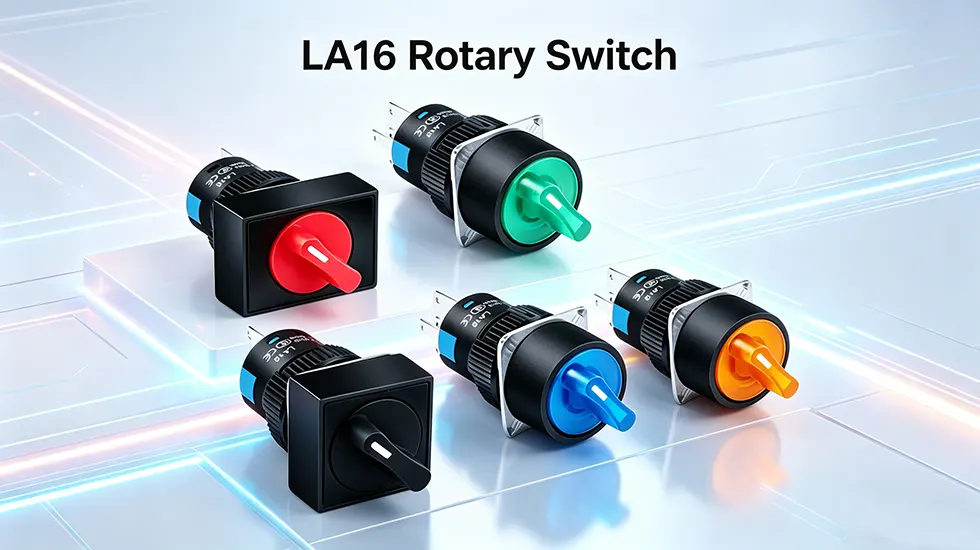

LA16 16mm Rotary Selector Switch 2/3 Position

The YAMING LA16 16mm Rotary Selector Switch 2/3 Position is a compact, high-performance control component suitable for manual circuit switching in various electrical systems. Its standard 16mm mounting size facilitates integration into control panels, distribution cabinets, and equipment interfaces. Diverse configurations adapt to different control logic requirements. Featuring a durable engineering plastic housing and precision gold-plated contacts, it is rated for 5A 250V AC and can be stably used in industrial control panels, automation equipment, distribution cabinets, and DIY projects.

Key Features

1. Flexible Gear and Function Configuration

- Gear Selection: 2 or 3 gears to adapt to different control processes

- Operating Modes: Self-locking (holds selected gear) or self-resetting (automatically returns to center)

- Contact Combinations: 1 on 1 off or 2 on 2 off, meeting flexible circuit control needs

2. Visual and Stylistic Diversity

- Illuminated Model: Red, green, blue, and orange LED backlit knobs, suitable for low-light environments

- Non-Illuminated Model: Classic and durable design, suitable for standard scenarios

- Operating Head Shape: Round or square options available, fitting panel aesthetics

3. Industrial-Grade Reliability

- Electrical Parameters: 5A 250V AC, compatible with most low-voltage control circuits

- Premium Materials: Engineering plastic shell + gold-plated precision contacts

- Ultra-Long Lifespan: Excellent mechanical lifespan, maintaining stable performance even after thousands of operations

4. Easy Installation and Strong Compatibility

- Standard Size: 16mm mounting hole, tool-free quick installation

- Space Saving: Compact structure, suitable for panels with limited space

- Wide Compatibility: Seamlessly adaptable to various control systems and equipment

5. Customization and Services

- OEM/ODM Support: Customizable colors, logos, and specifications

- One-Stop Service: Full technical support from design to implementation

- Factory Direct Supply: Bulk pricing discounts, efficient delivery

Real-world Application Cases

Case 1: Automated Packaging Line Control in Food Processing

A large food processing plant in Jiangsu integrated the YAMING LA16 16mm Rotary Selector Switch 2/3 Position into the control panel of its automated packaging line as a "manual-automatic-stop" mode switch. This switch operated continuously for 8 hours daily in dusty and humid environments for 18 months without failure, demonstrating excellent contact stability and significantly reducing production downtime. The illuminated version improves visibility during night shifts, ensuring operational safety.

Case 2: Medical Laboratory Equipment Control

A medical equipment manufacturer applied the LA16 2-position self-resetting switch to laboratory centrifuges and analyzers. Gold-plated contacts ensure stable signal transmission required by precision medical equipment, and the compact design perfectly fits the equipment control panel. The product meets medical industry hygiene and reliability standards, facilitating equipment certification and establishing a long-term supply partnership.

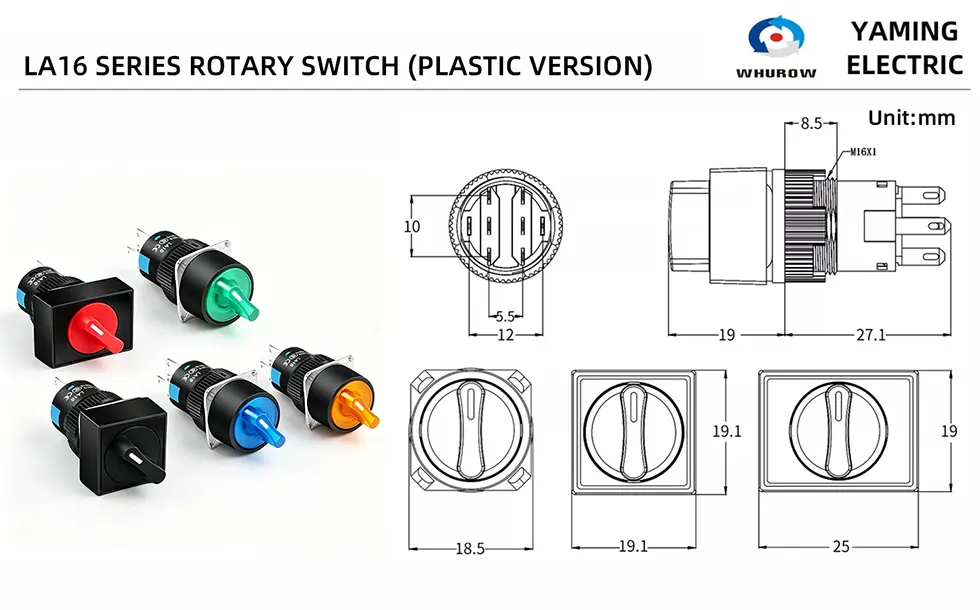

Technical Parameters

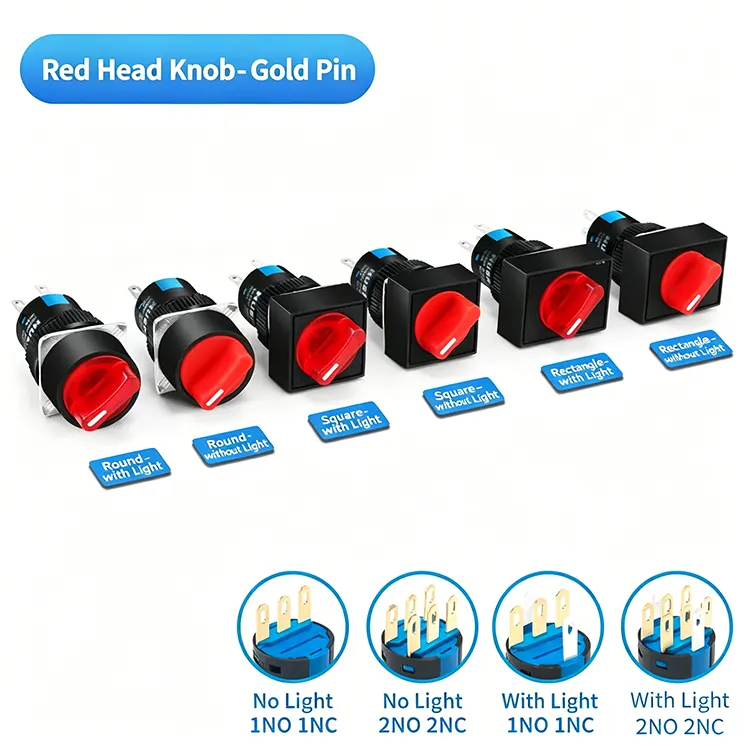

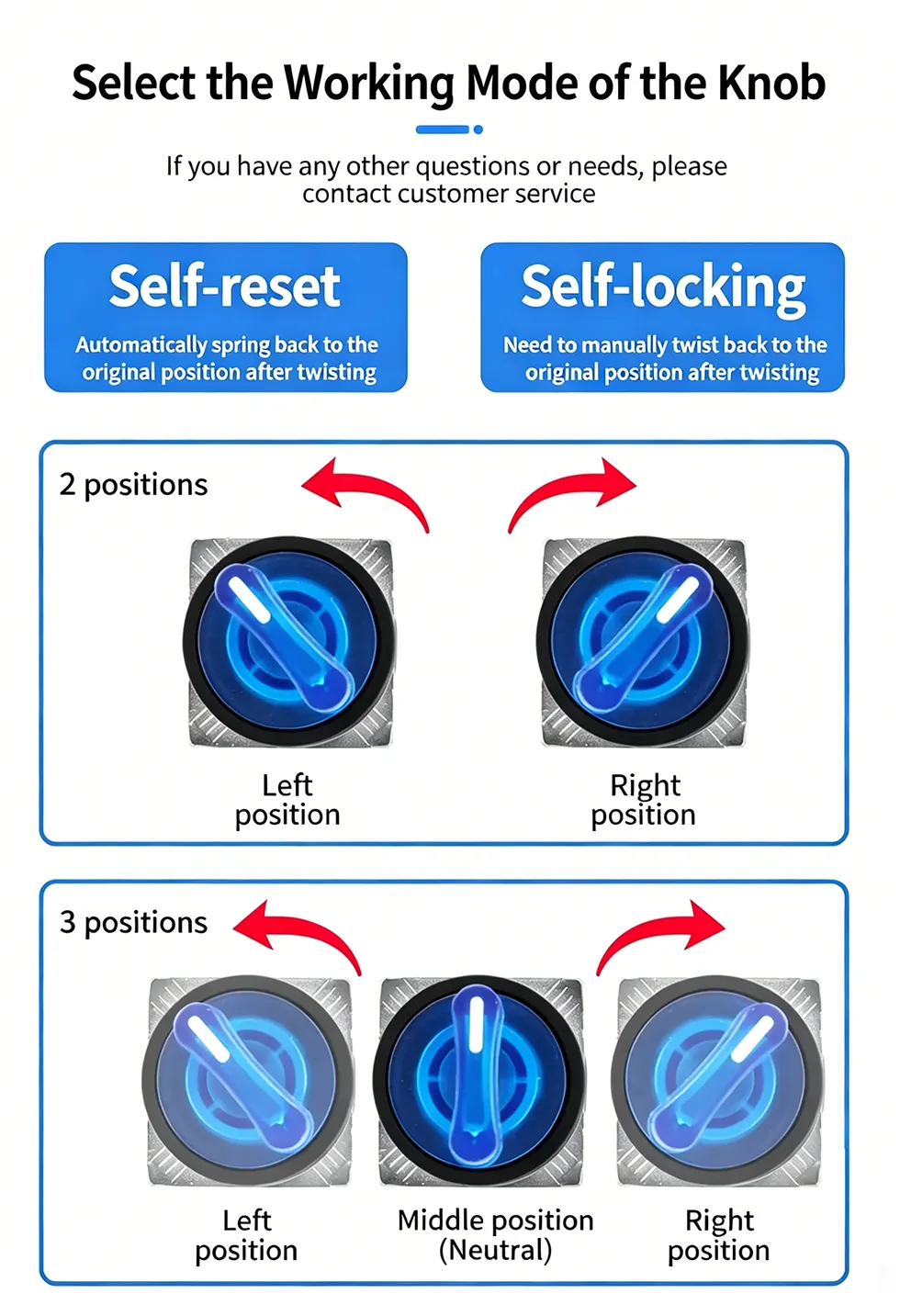

Mode of the Knob

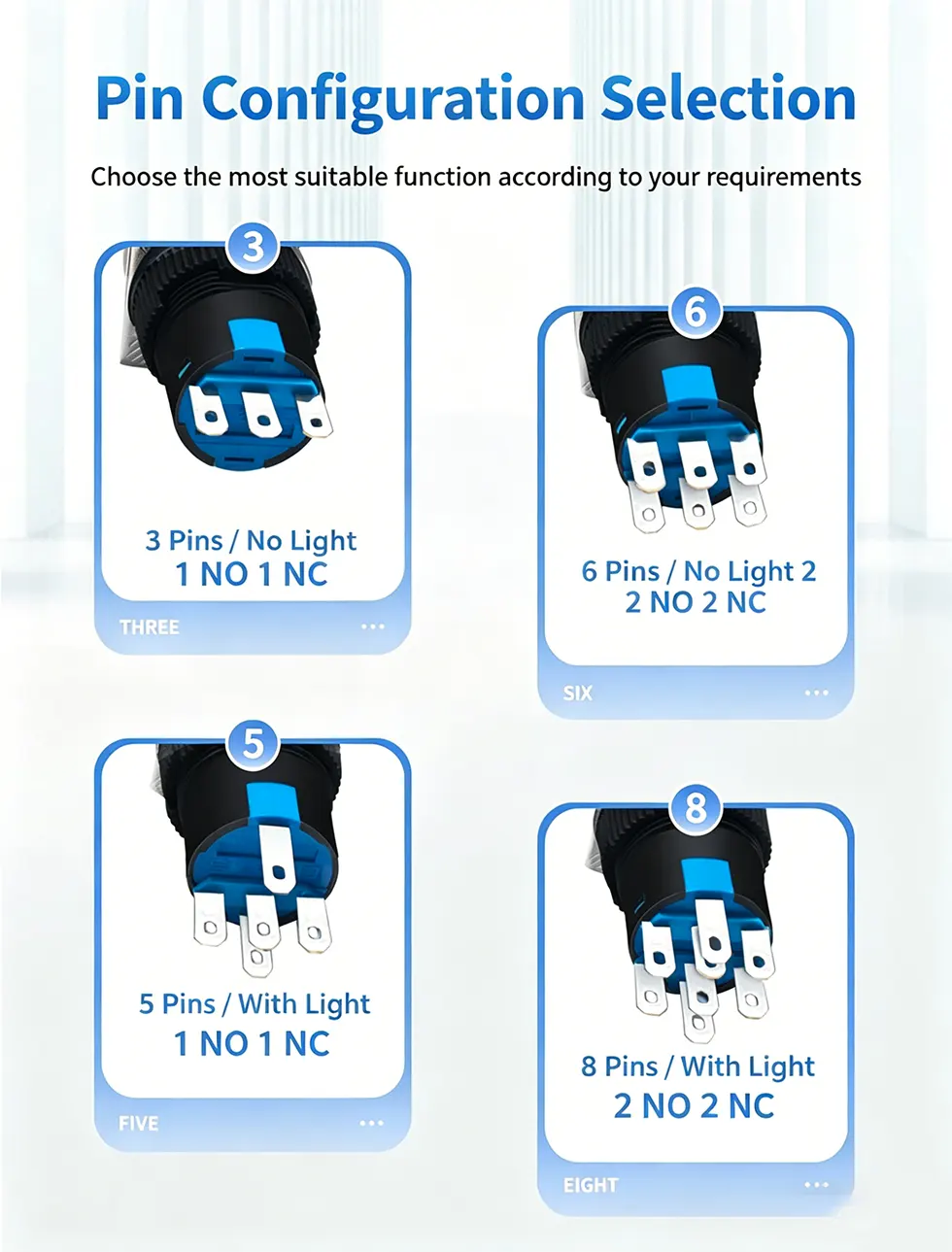

Pin Configuration Selection

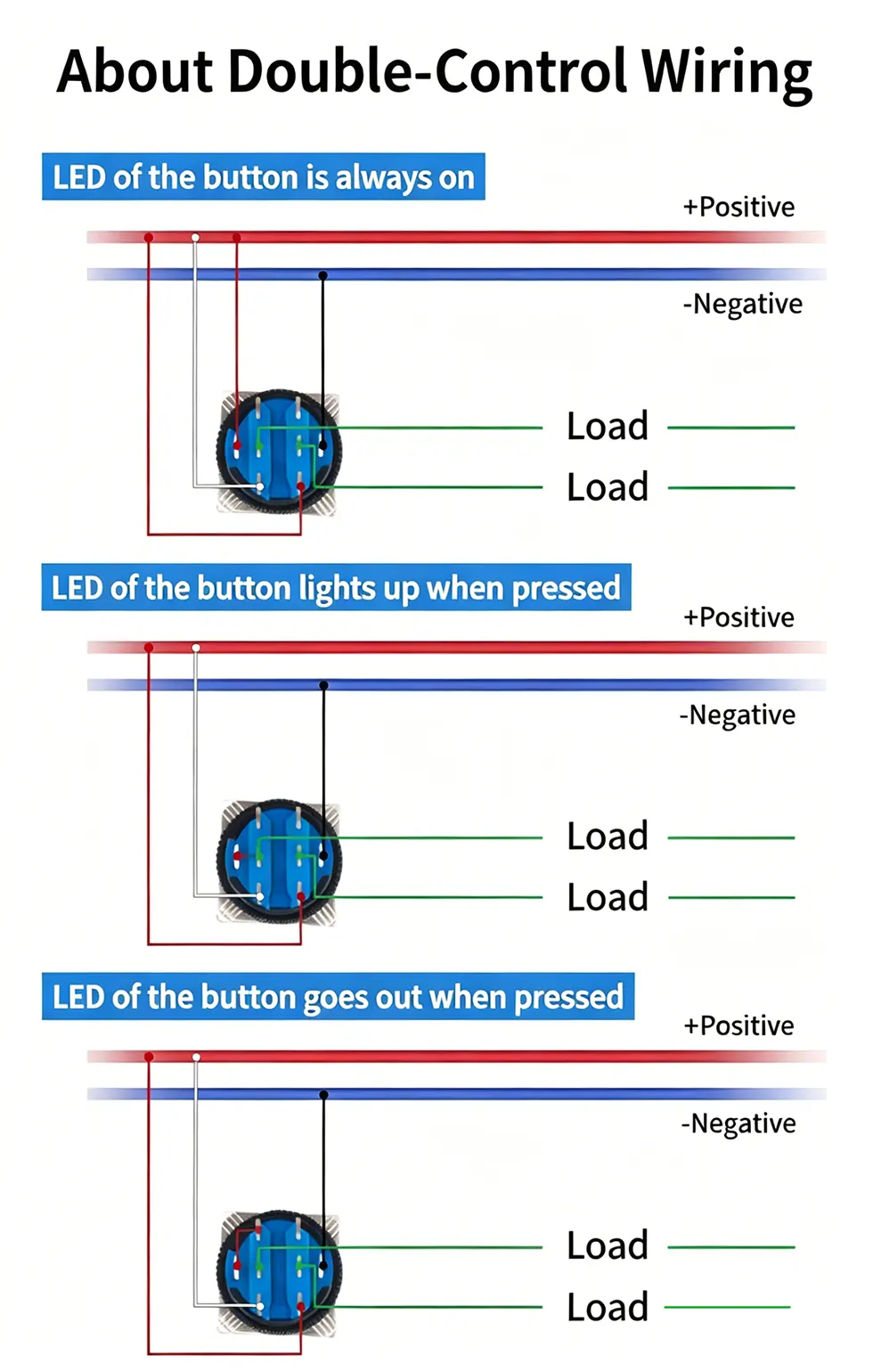

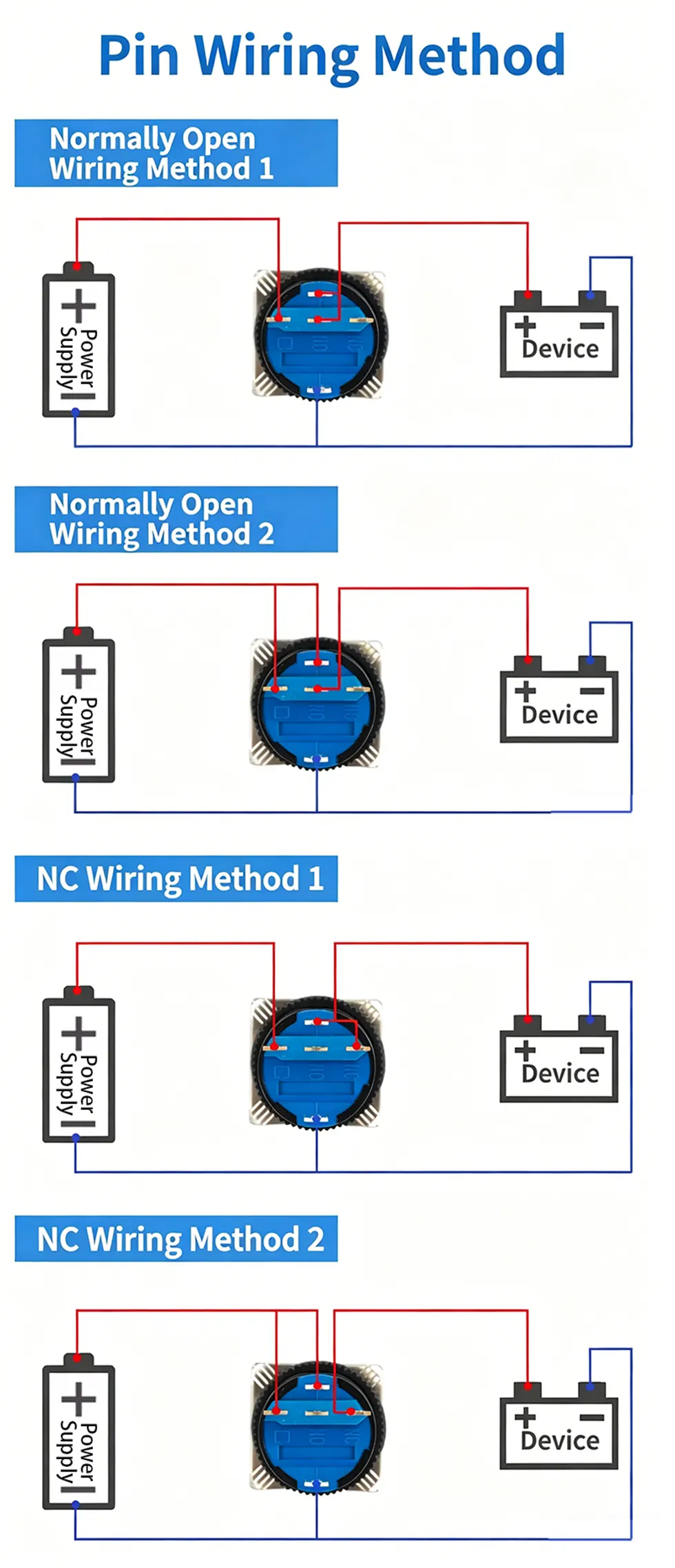

Product Wiring Diagram

FAQ

Q1: What is the difference between the LA16 series self-locking and self-resetting switches?

A: The self-locking switch holds the selected position after switching and requires manual adjustment; it is suitable for long-term mode selection. The self-resetting switch automatically returns to the center after release; it is suitable for momentary operations such as jogging and testing.

Q2: Is the LA16 16mm Rotary Selector Switch 2/3 Position compatible with standard industrial control panels?

A: Yes. The LA16 series uses a 16mm standard mounting hole, adapting to most industrial control panels, distribution cabinets, and automation equipment. Its compact design fits standard opening sizes while maintaining industrial-grade performance.
