20A Padlock Two Positions Combination Rotary Cam Switch

The 20A Padlock Two Positions Combination Rotary Cam Switch is an upgraded version derived from the HZ5 series. Tailored for AC 50 Hz circuits with a rated operating voltage of up to 380 V, it is primarily utilized for motor starting, stopping, reversing and speed control.

Furthermore, it can also act as a power cut-off switch, circuit control switch, master control switch, welding machine switch, and other related applications.

Product Feature

·  The 20A Padlock Two Positions Combination Rotary Cam Switch is an upgraded model developed from the HZ5 series.

·  It is suitable for application in AC 50 Hz systems where the rated operating voltage does not exceed 380 V.

·  Its primary use is for motor starting, stopping, reversing and speed control.

·  Besides, it can also serve as a power cut-off switch, circuit control switch, master control switch, welding machine switch, and other related applications.

·  Padlock-type handle to prevent misoperation.

Classification

·  In terms of rated current: offered in two specifications, 10A and 20A.

·  In terms of application: divided into two types, one for circuit switching and the other for direct motor on/off control.

·  In terms of the number of contact sections: available from 1 to 8 sections, amounting to 8 types in total.

·  In terms of the combination of operation mode and actuator position: there are 8 distinct types in all.

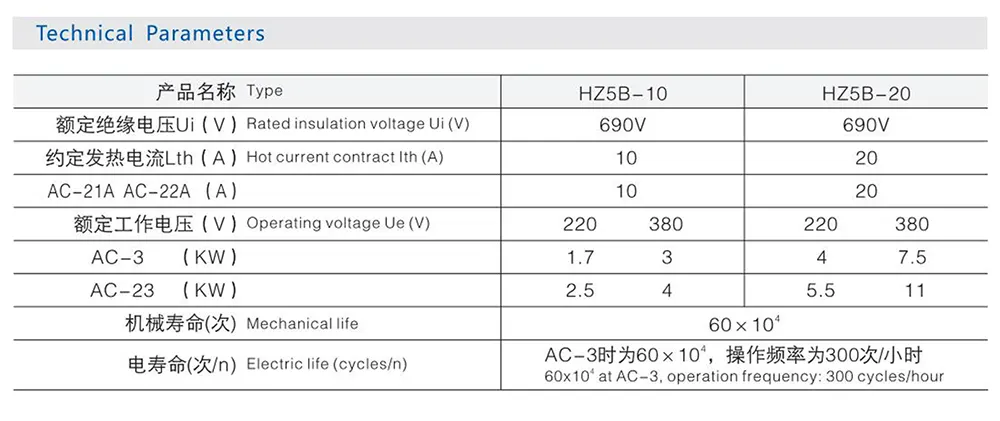

Technical Parameters
