The LW12 Series 16A Four Position Ammeter Cam Switch is a high-performance electrical control component independently developed and produced by YAMING's factory. It is mainly applicable to AC circuits with a frequency of 50Hz and a rated voltage of 380V or below, as well as DC circuits with a voltage of 220V or below. Its core functions include switching electrical control circuits and matching electrical measuring instruments; in addition, it can directly control three-phase AC squirrel-cage asynchronous motors with a power of 5.5kW or below, providing stable and reliable control support for various electrical systems.
It is widely applicable to AC and DC circuits of specific parameters, capable of switching control circuits, matching measuring instruments, and directly controlling small and medium-sized motors. As a reliable supplier, YAMING ensures the product's high safety and reliability, combining practicality with aesthetics to provide efficient and stable circuit management solutions for global customers.
The YAMING LW12 16A Four Position Ammeter Cam Switch has obvious competitive advantages in product performance and design, mainly reflected in the following aspects:
- Compact and Flexible Design: The product features a compact size and reasonable structure, which can be flexibly laid out in limited installation space, adapting to the installation requirements of various types of electrical equipment.
- Rich and Practical Functions: It covers a variety of control scenarios, can meet the diverse control needs of different electrical systems, and has strong compatibility and versatility.
- Excellent Safety Performance: Adopting strictly selected high-quality materials and sophisticated manufacturing processes, the product has excellent insulation performance, which can effectively isolate electrical circuits and ensure the safety of operators and equipment during use.
- Smooth and Reliable Operation: The switching operation is flexible and smooth, with high positioning accuracy and stability, reducing the risk of failure during use and ensuring long-term reliable operation of the circuit.
- Aesthetic and Practical Integration: The novel appearance design combines practicality and aesthetics, which can be well integrated with the appearance of different equipment and enhance the overall quality of the equipment.
According to different usage scenarios and operation requirements, the YAMING LW12 16A Four Position Ammeter Cam Switch is divided into the following categories to better meet the personalized needs of customers:
1.Classification by Usage
- Master Control Application: Suitable for the master control scenario of electrical systems, responsible for the overall switching and control of the main circuit.
- Direct Motor Control Application: Specialized in directly controlling three-phase AC squirrel-cage asynchronous motors with a power of 5.5kW or below, realizing the start, stop and switching control of the motor.
2.Classification by Operation Type
- Positioning Type: After switching, it can stably stay at the set position to ensure continuous and stable control of the circuit.
- Self-Reset Type: It can automatically return to the initial position after the operation is completed, suitable for scenarios that require temporary control and automatic reset.
3.Classification by Contact System Section Count

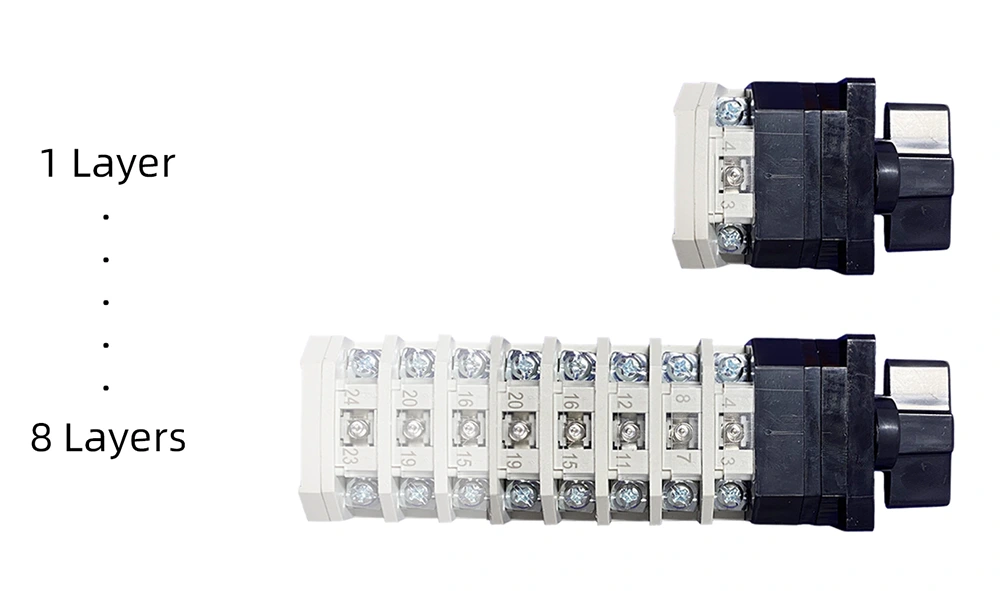

- Master Control Category: The positioning type provides 1–10 sections of contact system to meet the needs of complex main control circuits; the self-reset type provides 1–3 sections of contact system, which is suitable for simple main control scenarios.
As a professional manufacturer with over 30 years of experience in electrical switch R&D and manufacturing, YAMING has established a complete R&D, production, and quality control system. The factory is equipped with advanced production equipment and testing instruments, and each LW12 16A Four Position Ammeter Cam Switch undergoes strict quality inspection before leaving the factory to ensure that the product meets international standards. As a trusted supplier in China, YAMING is committed to providing high-quality electrical switch products and professional technical services for global customers, and has won wide recognition in the industry with reliable product quality and perfect after-sales service.
