Extended Rod Front Plate Operation Cam Combination Switch

YAMING, a well-known brand with decades of expertise in the electrical switch field, presents the HZ12 Extended Rod Front Plate Operation Cam Combination Switch—a high-quality power disconnect changeover switch designed for precise and safe electrical circuit control. This product is meticulously manufactured in the YAMING factory, adhering to strict quality control standards to ensure stable performance and long-term reliability. It is mainly used in AC circuits with a frequency range of 50Hz to 60Hz and a rated working voltage of up to 500V, focusing on completing power connection and disconnection tasks efficiently.

Extended Rod Front Plate Operation Cam Combination Switch is applicable to AC circuits of 50Hz-60Hz with a rated working voltage up to 500V, capable of realizing power connection and disconnection, as well as directly stopping electric motors and high-inductive loads. With user-centric features such as padlockable manual handle, durable structure, and premium materials, it is widely used in various electrical equipment and systems, and the YAMING team, as a trusted supplier, provides multiple configurable versions to meet diverse market demands. Additionally, it has the special capability of directly stopping electric motors and high-inductive loads, making it a versatile choice for various electrical control scenarios.

Core Product Features

The HZ12 series combination switch from YAMING is engineered with user safety and durability as the core, integrating multiple outstanding features:

- Enhanced Operational Safety: Equipped with a padlockable manual handle, which effectively prevents misoperation and upgrades the safety level of the operation process, ensuring the personal safety of operators and the stable operation of equipment.

- Superior Durability: The handle is designed for flexible operation and can withstand more than ten thousand uses, ensuring an extended service life even in high-frequency use scenarios.

- Excellent Conductivity & Wear Resistance: Adopting thickened copper parts and silver alloy contacts, the switch features low resistivity, top-tier conductivity, as well as excellent wear resistance and oxidation resistance, reducing energy loss and prolonging the service life of key components.

- Premium Material Selection: Made of high-quality flame-retardant PC and other premium materials, the product has strong resistance to compression and impact damage, adapting to various complex working environments and ensuring structural stability.

Product Series & Configurations

To meet the diverse needs of different application scenarios, YAMING provides multiple configurations of the HZ12 series combination switch, covering basic, padlockable, and interlock versions. Each version is available in two options: emergency stop and standard, with distinct design features for easy identification and use:

- Standard Models (01, 03, 07): Adopt a sleek black panel with a matching black knob, presenting a simple and professional appearance, suitable for regular electrical control scenarios.

- Emergency Stop Models (02, 04, 08): Equipped with a highly visible yellow panel and red knob, which can be quickly identified in emergency situations, facilitating timely operation and reducing potential risks.

Reminder: Standard variants are custom-order items and require special instructions during the ordering process.

Product Applications

As the go-to main power switch, the HZ12 power disconnect switch from YAMING is widely applicable to a variety of scenarios and equipment, including but not limited to:

- Ventilation units

- Machine tools

- Control cabinets

- Diverse electrical equipment

- Water pump systems

Its stable performance and wide adaptability make it an essential component in industrial and commercial electrical control systems, favored by customers worldwide.

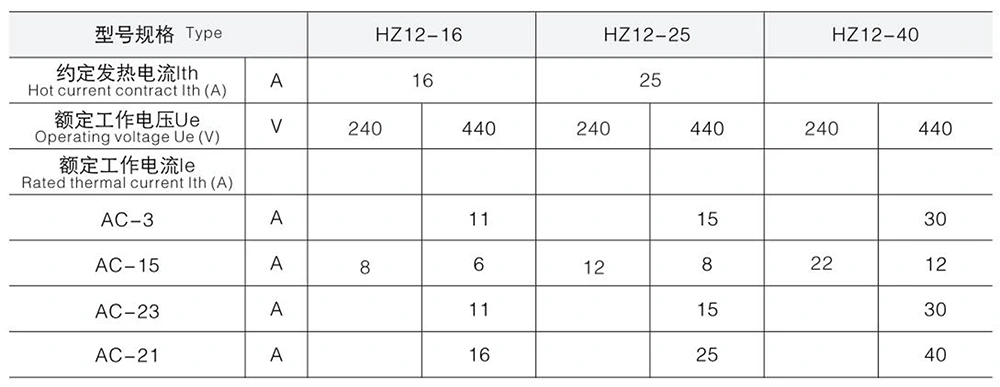

Technical Parameters

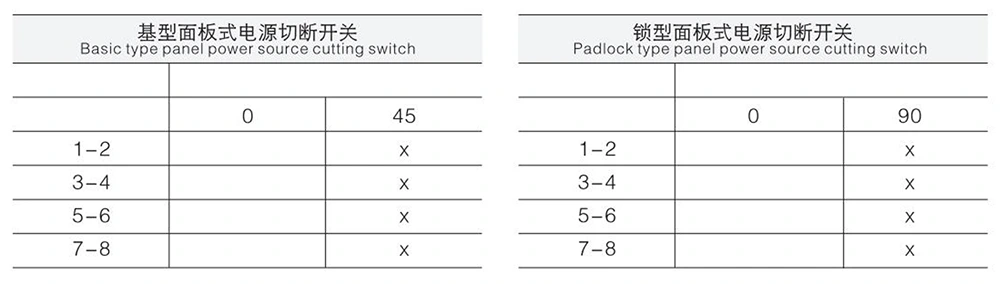

Wiring Diagram

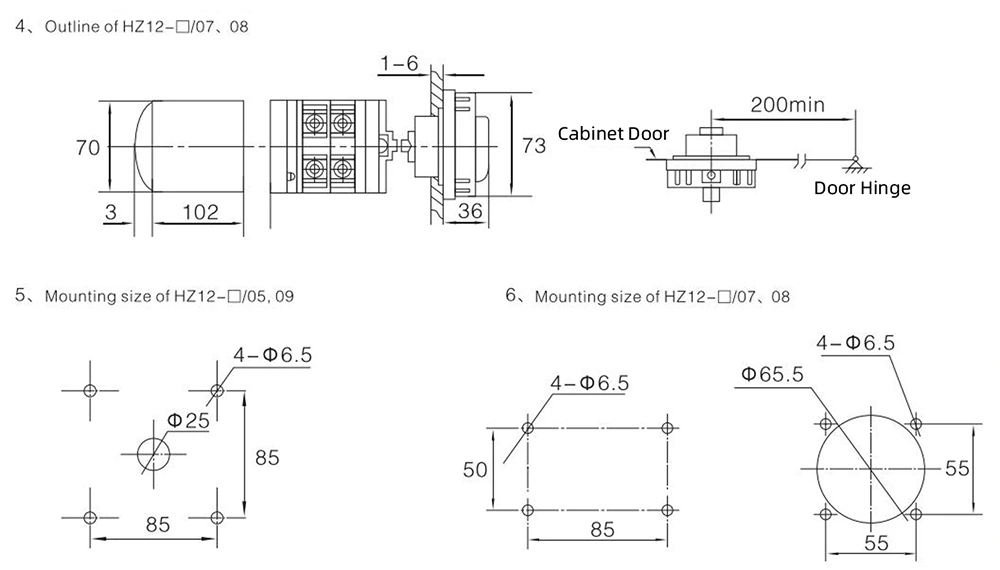

Product outline size installation size
